Yanhua ACDP VW MQB Package

Yanhua ACDP VW MQB Package

Product Description:

Key Programming Tools From YanhuaACDP with Product Number: MKON464
This Weight Product: 3500g

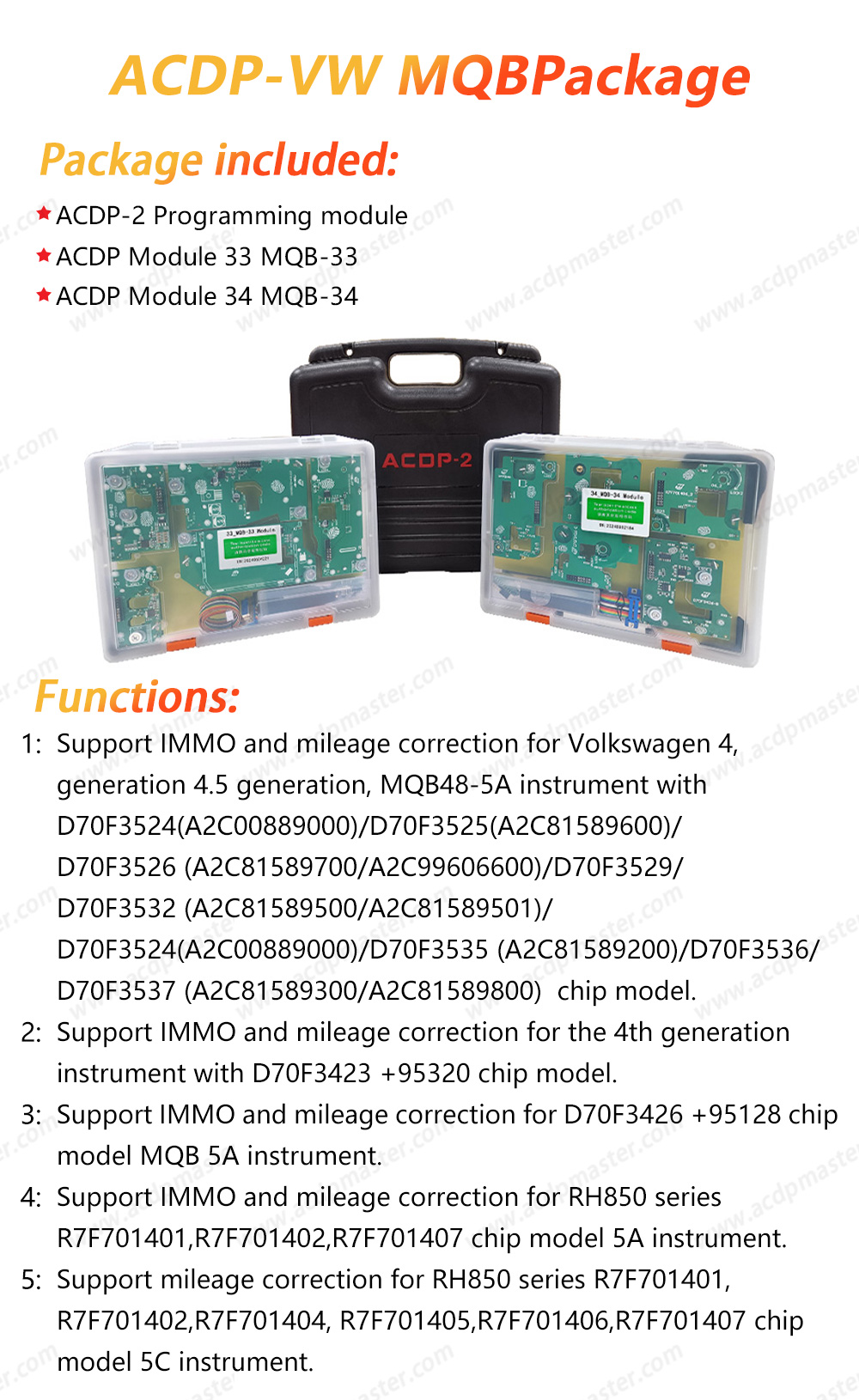

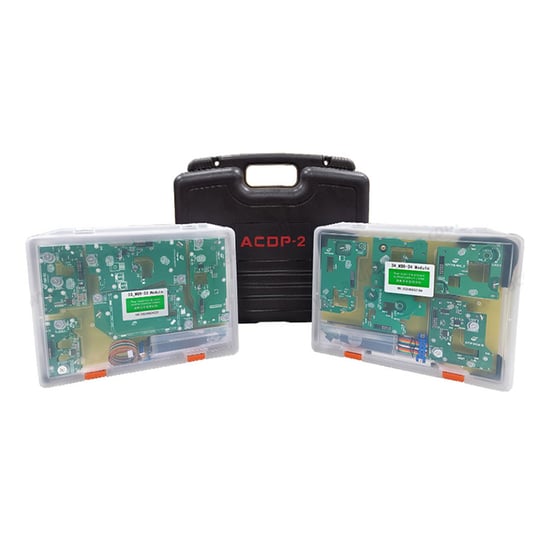

Yanhua ACDP VW MQB Package Included:

1. Yanhua Mini ACDP 2 Key Programming Master Basic Module

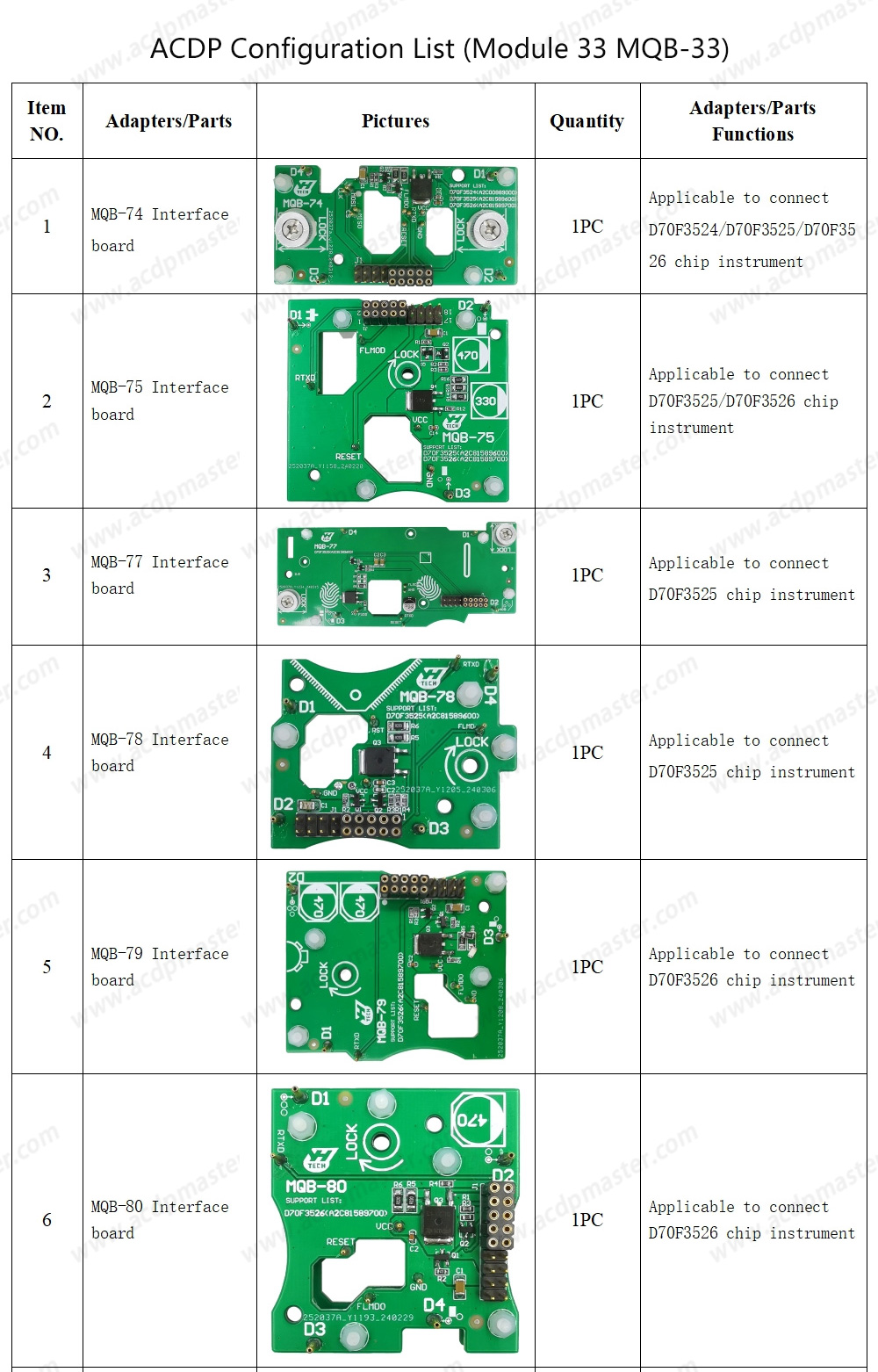

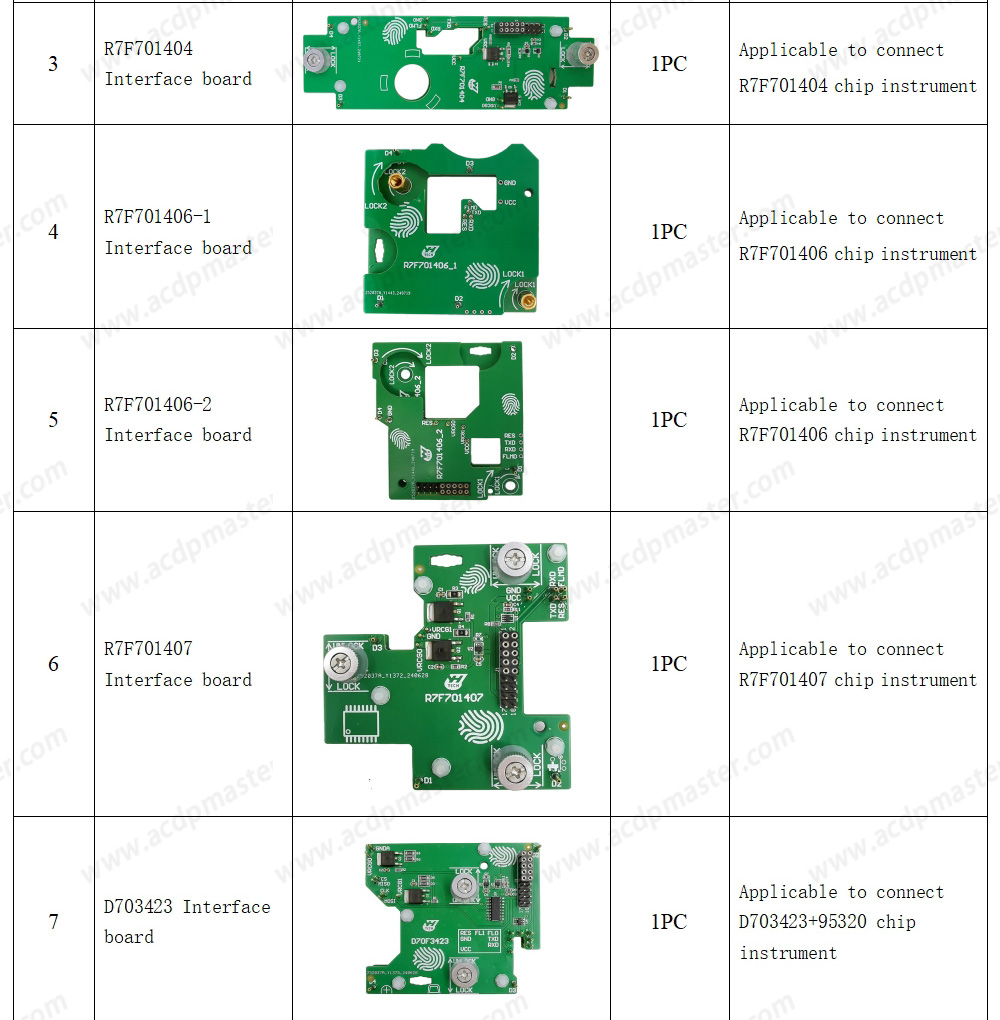

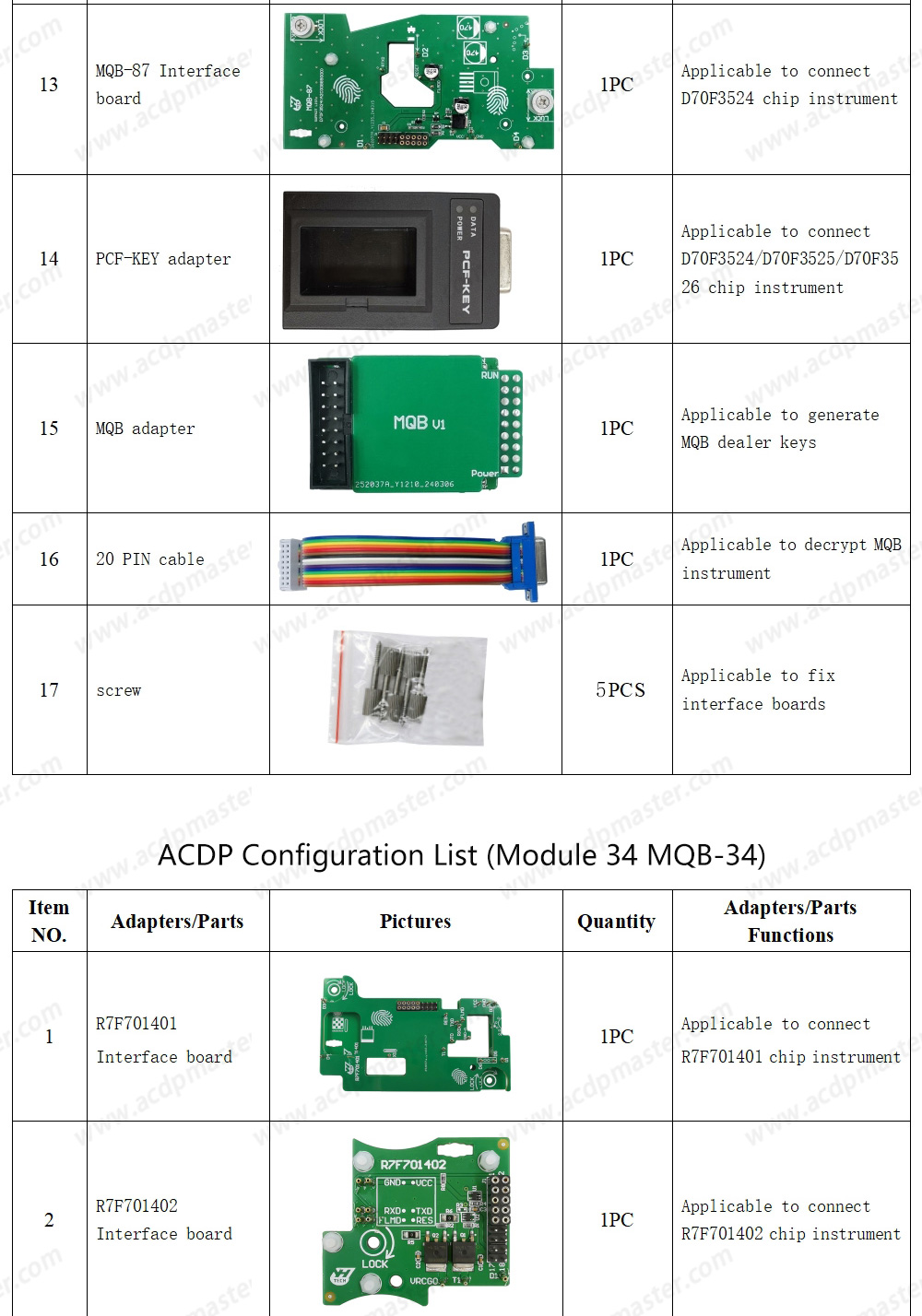

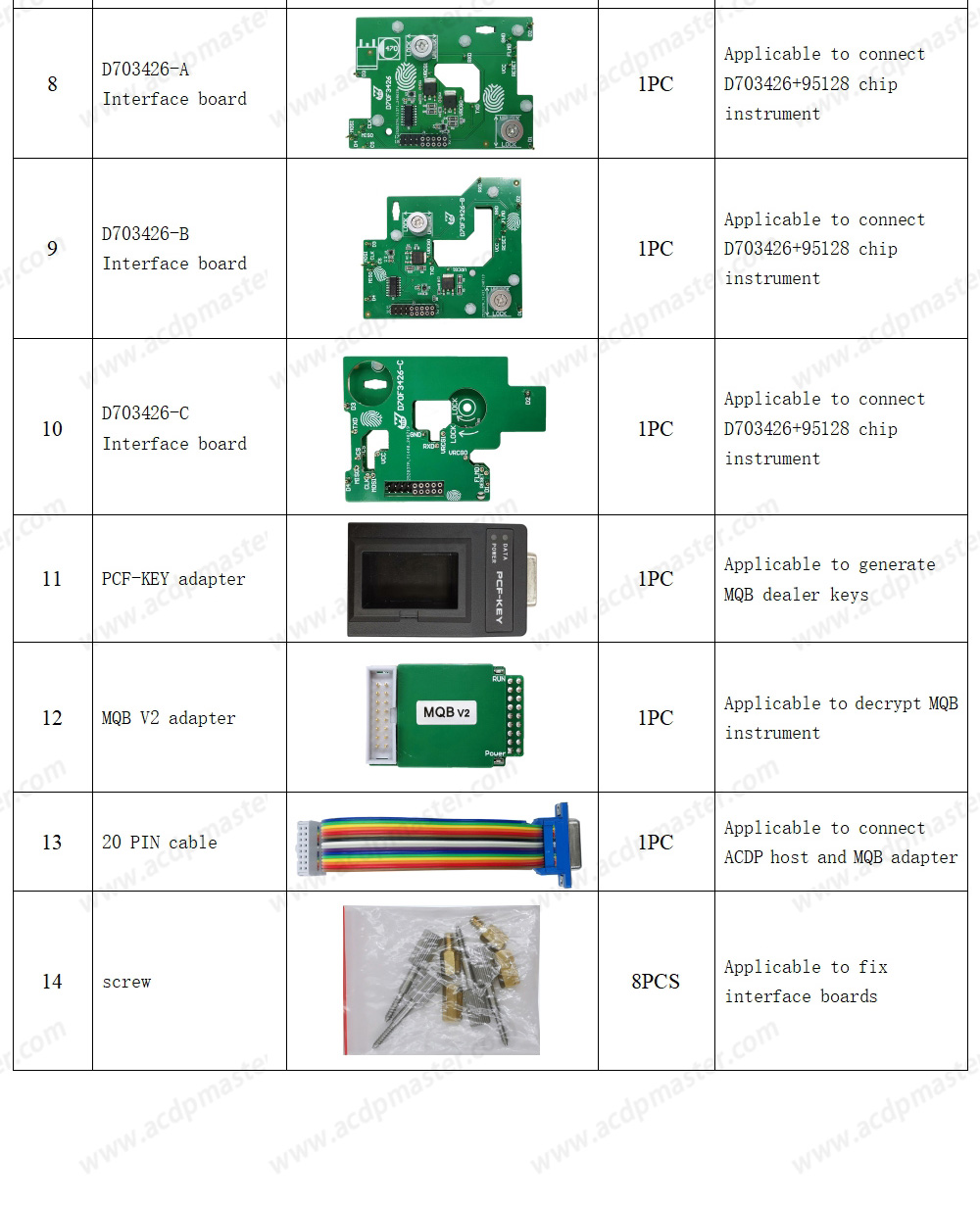

2. YanhuaACDP Module 34, VW MQB34
3. Yanhua Mini ACDP MQB48 Key Programming Mileage Correction Module 33 with License A608 Support Add Key

ACDP 1 vs ACDP 2:

ACDP 1: Wireless connection only
ACDP 2: Wireless and USB connection, connect ACDP host via Android, iOS and PC devices via USB without Bluetooth adapter.

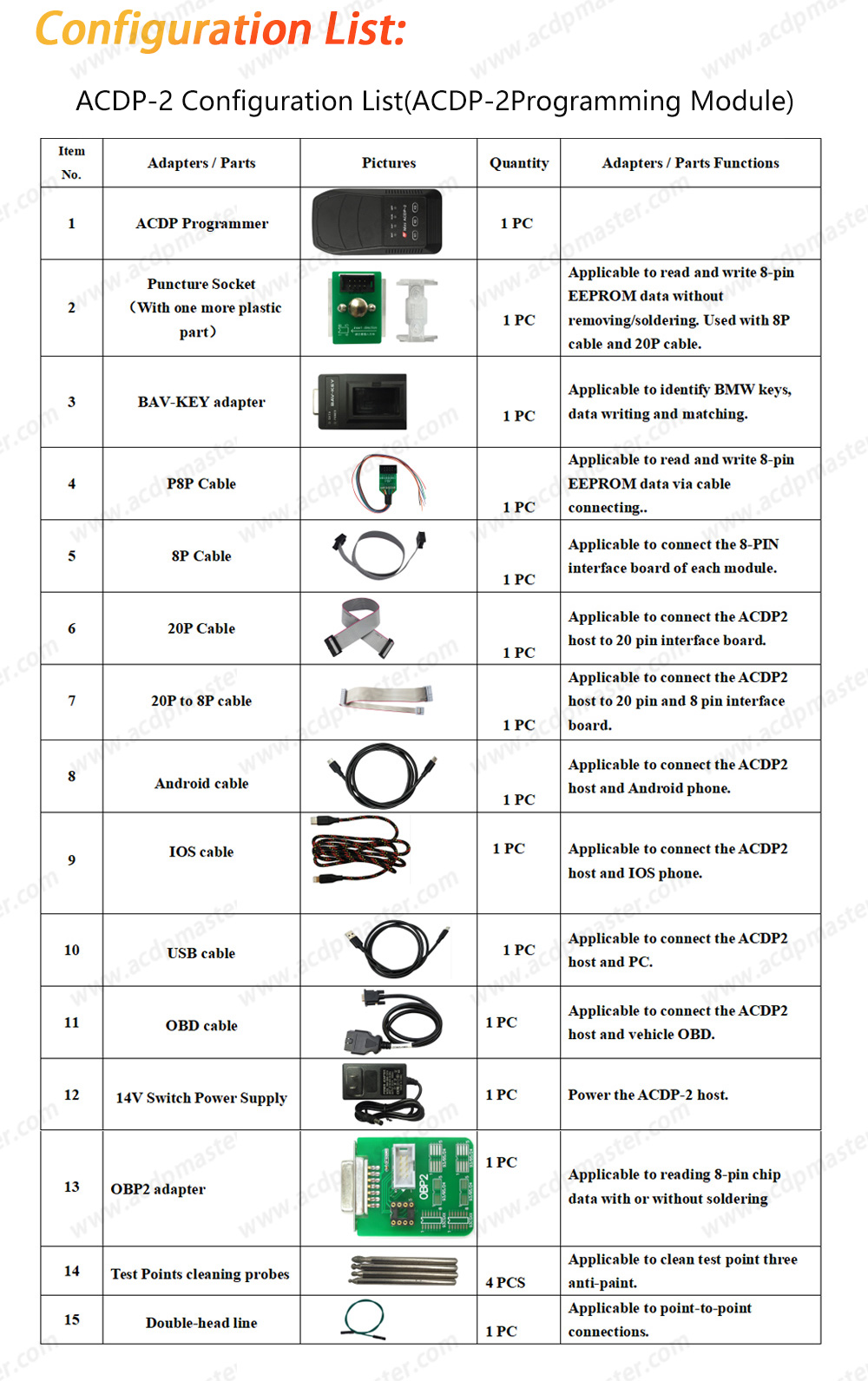

ACDP-2 Basic Module features:

It supports 93/24/25/35/95 Series EEPROM in circuitprogramming(ICP)andon adapter board programming(OBP).This module is a necessary basicconfiguration for other modules.

Extended Functions: By expanding more adapters to achieve various functionsauch as ECU programming key programming/matching, ECU refresh.
The current adapters include: BMW CAS, BMW FEM/BDC, BMW DME, Meter/Instrument, BMW Key refresh, BMW FRM(Footwell), BMW EGS(Gearbox), Fujitsu CPU, VW MQB, Jaguar Land/Rover KVM, Porsche BCM, Volvo, etc.

Mini ACDP-2 Advantages:

1. No need removing chip,No need soldering, No need cutting line, No needlifting the pin.
2. USB direct connection, plug and play. wifi connection, wireless free.
3. Pin intelligent detection, Data reading and writing is safe and reliable.

How to Bind the second-generation ACDP:

1: Bind directly through the USB cable. The 3 USB cables correspond to Android, IOS, and PC respectively. After binding the device in this way, the USB cable must be connected to the host and the mobile phone, and it cannot be used without the USB cable. Disconnect the USB cable and the device will lose connection.
2: Configure wifi or hotspot binding through the USB cable. The binding process of this method requires a USB connection, and then enter the wifi or hotspot name and password to complete the binding. After binding, you can unplug the USB cable and use it wirelessly.
3: Configure wifi or hotspot binding through the Bluetooth of the mobile phone. This method is the same as the binding method of the 1st generation host. Wireless use after binding.
