Abrites CB030 - Mercedes-Benz MD1/MG1 ECU connection Cable for FBS4 Manager and ECU Programming Tool MK20190
Abrites CB030 - Mercedes-Benz MD1/MG1 ECU connection Cable for FBS4 Manager and ECU Programming Tool
Abrites CB030 - Mercedes-Benz MD1/MG1 ECU connection Cable for FBS4 Manager and ECU Programming Tool

Abrites CB030 - Mercedes-Benz MD1/MG1 ECU connection Cable for FBS4 Manager and ECU Programming Tool

Write Review
$197.91 (€190.00)
Add to Wishlist
Product Code: MK20190
Categories Cables
Manufacturer Abrites
In StockIn Stock
Product Specifications
Manufacturer ABRITES
Condition New
Weight 100 g

Abrites CB030 - Mercedes-Benz MD1/MG1 ECU connection Cable for FBS4 Manager and ECU Programming Tool


Abrites CB030 - Mercedes-Benz MD1/MG1 ECU connection Cable Product Description:

New Abrites CB030 - Mercedes-Benz MD1/MG1 ECU connection cable for FBS4 Manager and ECU Programming Tool

Cables From Abrites with Product Number: MK20190
This Weight Product: 100g

Abrites CB030 - Mercedes-Benz MD1/MG1 ECU connection Cable Specs:

Manufacturer: ABRITES
Condition: New

The CB030 cable is intended for direct connection on bench with the engine control units from BOSCH types MD1, MG1 in Mercedes-Benz vehicles and vans.
The cable is useful for diagnostic purposes on bench, and of course for FLASH/DFLASH programming using EP003 functionality of Abrites ECU Programming Tool.
Using the MN032 FBS4 Manager license, you can virginise, personalise and extract personalization data from MD1, MG1 ECUs via the CB030 cable.

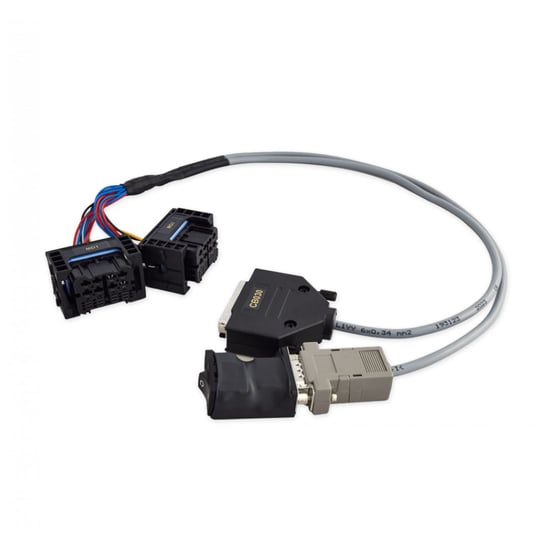

The CB030 has two identical connectors with different pinouts for MG and MD ECUs. One of the connectors is specially designed for MD type of ECUs, and the other is for MG type of ECUs. Exercise caution and make sure you connect the right type of connector to the ECU (MD or MG) to avoid ECU malfunction.
In order to complete the procedures, you can either use the ZN051 Abrites Distribution Box or direct connection to AVDI. When using DS-BOX connect DB25 connector and DB15 connector of CB030 to DS-BOX. When using a direct connection to AVDI, connect the DB25 connector of the CB030 to the AVDI, and the DB15 connector of the CB030 to the black DB15 adapter with switch for ignition. This adapter is then connected to a 12V power supply via DC connector, the ZN074 is ideal for this purpose.
An AVDI with an active AMS is required to complete the procedures.
