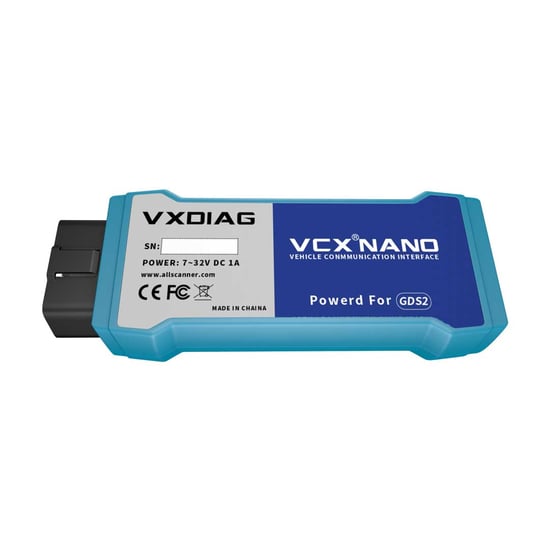

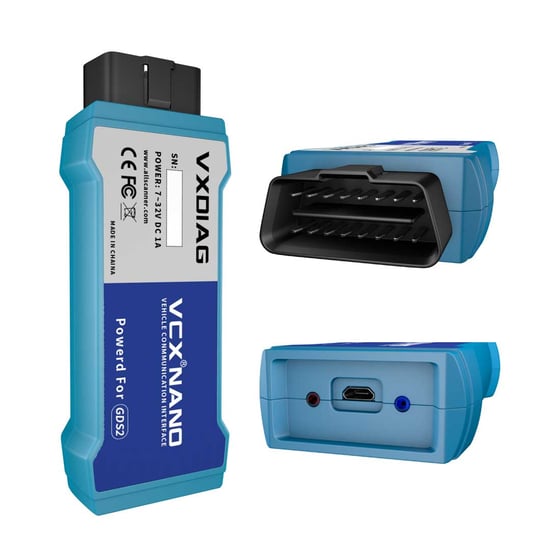

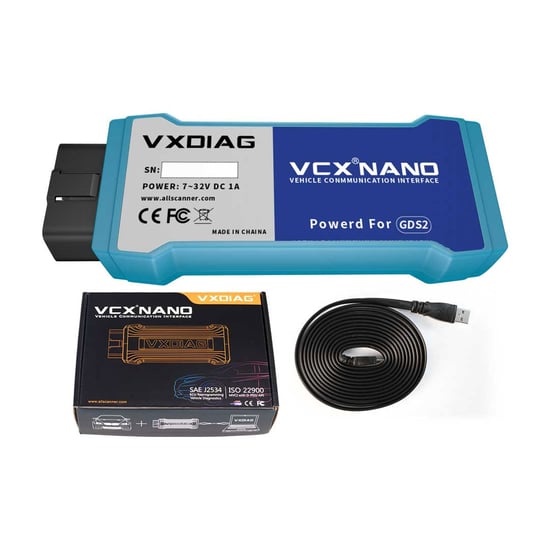

ALLScanner VCX NANO for GM / OPEL USB / WIFI PW160 GDS2 Diagnostic Tool

Be the first to review this product
WIFI Version
$129.00
Category: Diagnostic Tools
Manufacturer: ALLScanner
Availability: In stock
SKU: DIA-ALL-17806
Old SKU: MK17806
GTIN: 808233177250
Products specifications
Attribute name Attribute value
Manufacturer ALLScanner
Condition New
Models
Brand Model From Year To Year
Chevrolet All
Buick All
Opel All
GMC All
Hummer All
Full Description:

ALLScanner VCX NANO for  GM / OPEL USB / WIFI PW160 GDS2 Diagnostic Tool

Product Description:

New ALLScanner VCX NANO for  GM (Chevrolet Cadillac GMC Buick Hummer OPEL) USB / WIFI PW160 GDS2 Diagnostic Tool

Diagnostic Tools From ALLScanner with Product Number: MK17806
This Weight Product: 250g

Specs:

Manufacturer: ALLScanner
Condition: New

Vcx-nano is a standardized VCI vehicle diagnostic interface, based on sae-j2534 and iso-22900 PDU international standard design, compatible with most of the vehicle communication protocols, compact design, is an ultra-high cost performance of the original diagnostic interface. VCX nano is widely used in ECU online diagnosis and programming by vehicle manufacturers. It also supports third-party and original diagnostic software.



Original diagnostic functions

  • The original factory level diagnostic function for various brand models supported, can replace expensive OEM equipment.
  • All kinds of advanced diagnostic functions are completely consistent with the original factory, and the performance even exceeds the original factory.
  • One click installation, original support driver and online upgrade, easy to use.

Meet the automotive industry standard design

  • SAE-J2534-1/2 Pass-Thru with EURO 5
  • ISO-22900 MVCI & D-PDU
  • J2534 original factory level ECU programming functions.

PC communication interface

  • Support USB2.0 high speed connection
  • Support 802.11b Wi Fi wireless connection
  • The PC configuration management tool provided automatically detects connections and updates firmware.

High performance vehicle diagnostic interface

  • Vcx-nano with high speed processor is a high performance vehicle network interface.
  • It can support most standardized and original private vehicle bus protocols.
  • It can support up to 4-way can: 3-way high-speed can and single line can.
  • Support multi-channel work at the same time, for example: support 2-wire can or K-wire work at the same time.
  • Support programming voltage output: 5V ~ 20V FEPS output (Ford)
  • Compact design of integrated OBD-II interface can be connected directly with vehicle.

Hardware specifications

  • Protocol processor   32bit 180MHz ARM
                                      1MB FLASH
  • Diagnostic interface   SAE-J1962 standard, OBD-II diagnostic interface
  • Wired interface (PC)    USB Micro-B interface
  • Wireless interface (PC)   WLAN 802.11 b/g/n wireless network (Optional)
  • Indicator lights   2 LEDs, Red: device status, Blue: communication status.
  • Power supply   Vehicle power supply: DC 9v-36v (compatible with 12V and 24V)
  • Power   1W
  • Size   L x W x H = 140 x 50 x 25 (mm)
  • Weight   Equipment weight: 0.3KG, Product + package weight: 0.8kg
  • Shell   Reinforced plastic shell
  • Working temperature   -20～+70 °C
  • Storage temperature   -40～+85 °C
  • Standard certification   Comply with EU CE and US FCC

Supported vehicle bus protocols

  • ISO-9141 K-Line
  • ISO-14230 K-Line
  • ISO-15765 CAN
  • SAE-J1850-VPW (GM Class2)
  • SAE-J1850-PWM (FORD SCP)
  • SAE-J2411 SWCAN (GMLAN)
  • VAG TP20 CAN (SAE-J2819)
  • VAG TP16 CAN
  • VAG KW81 (SAE J2818)
