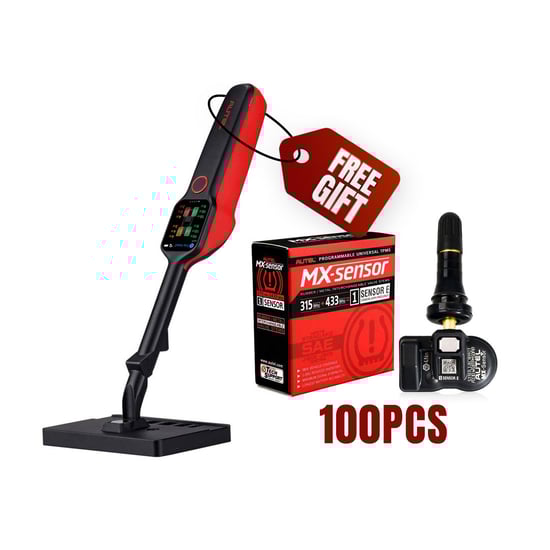

New Bundle New Bundle Autel MX-Sensor E TPMS Programmable 2-In-1 315-433MHz Rubber Tire Pressure Sensors 100 PCs + Free Gift Autel MaxiTPMS TBE200 Tire Control Device
Greatly reduce sensor inventory investment with the 1-SKU Autel MX-Sensor 1-Sensor solution providing 98% vehicle coverage. The easy to use exclusive PRESS release valve design, reduces tire and wheel service time to increase profits. With both rubber and metal accessory valves available, easily choose the preferred valve stem to minimize installation time and provide a quick and simple assembly.
Autel is the only manufacturer to produce both TPMS sensors and easy-to-use TPMS tools to offer a truly complete TPMS solution.
An easy to use and cost effective necessity for any shop performing TPMS repairs, the Autel 1-SKU sensor inventory solution with 98% vehicle coverage eliminates the need for distributors to carry the hundreds of sensors to fulfill shop orders. On the shop level, needing only 1-Sensor to service nearly every TPMS equipped vehicle means lower repair cost and higher install efficiency.

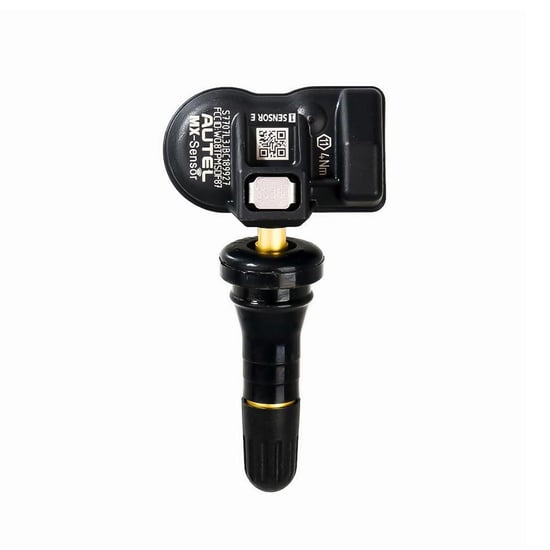

Autel MX-Sensor EXCLUSIVE PRESS RELEASE INTERCHANGEABLE VALVE STEMS
The patented press release valve design allows interchangeable rubber and metal valves to be easily replaced in the same sensor head by hand, with no valve fitting tool required. Simply click in and press out. Installing TPMS sensors has never been so easy.
Autel MX-Sensor MAXIMUM SIGNAL STRENGTH WIRELESS PROGRAMMING
The extraordinary sensor signal strength allows AUTEL 1-Sensor to be easily programmed wirelessly even when the sensors have already been mounted to the wheel. And with strong signal strength, now up to 16 sensors can be programmed in one session with AUTEL latest TPMS tools. AUTEL MX-Sensor is 100% clone-able. No relearn is required when the MX-Sensor is cloned with the original sensor ID and put in the same position.
Autel MX-Sensor SUPERIOR BATTERY RELIABILITY LOWER SENSOR WEIGHT
With the highest quality materials and advanced TPMS technology, AUTEL 1-Sensor provides superior battery life and reliability, to match OE sensor battery performance. The 1-Sensor body weighs only 12g, making it significantly lighter than most sensors in the market, which ensures better sensor stability and performance.
New Autel MaxiTPMS TBE200 Laser Tire Tread Depth & Brake Disc Wear 2in1Tester With Dual Camera Real-time Data Examiner| Emirates Keys
The MaxiTPMS TBE200 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tires. It features a 1.65” AMOLED super retina touchscreen, displaying measurement data curves in real-time. TBE200 provides uneven wear analysis and detailed replacement & maintenance suggestions for quick tire service. The TBE200 dual cameras enable users to document tire wear and damage and scan Tire Identification Number (TIN). Use the tool separately, or with ITS600 to view and print detailed TPMS reports.

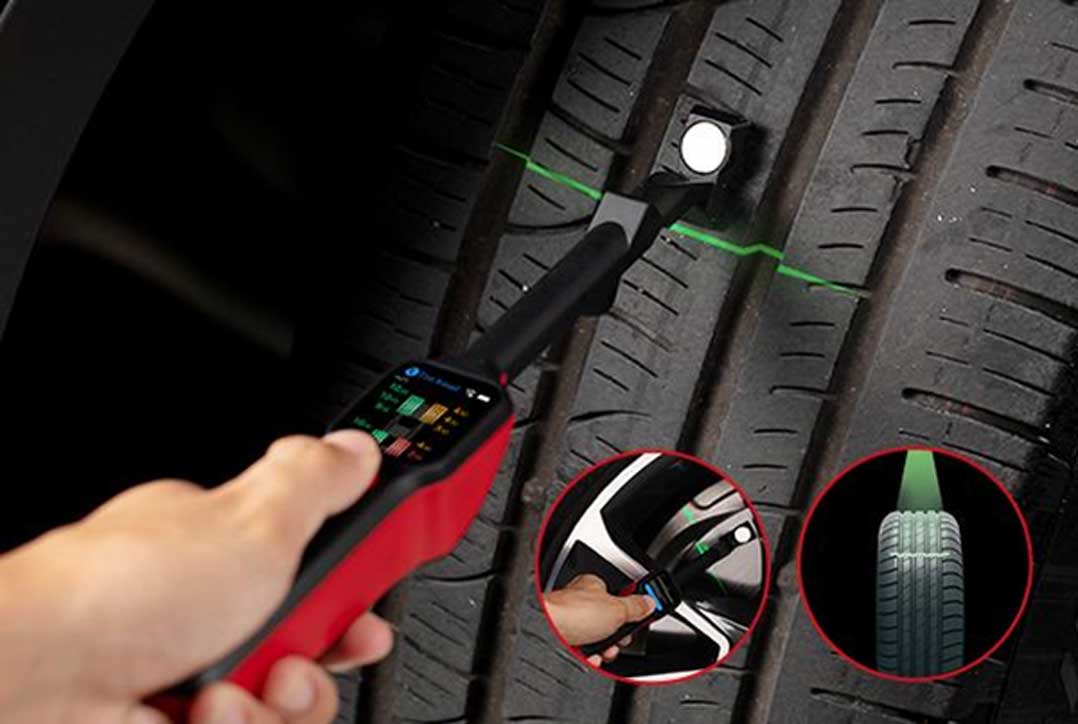

LASER MEASUREMENT
• Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement
• Laser measurement with 0.1mm accuracy
• Full tread measurement
• Quick Check both tread depth & brake disc
|
 |
REAL-TIME TIRE HEALTH ANALYSIS
• Real-time measurement data on touchscreen
• Measurement data curve display
• Uneven wear analysis
• Test detail for single tire tread / brake disc
• Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)
• Scan DOT, tire expiration notice, tire recall lookup
• Take photos of tire wear & damage
|
 |

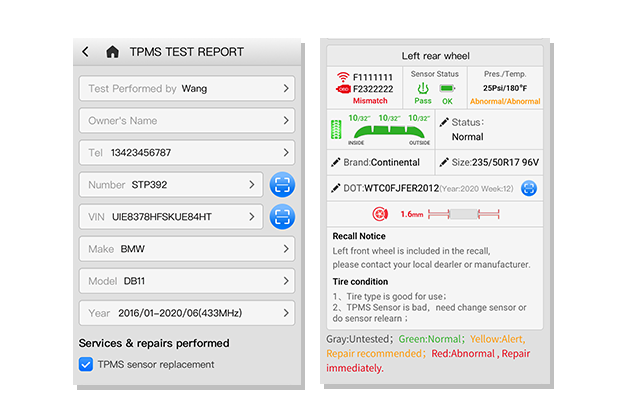

COMPREHENSIVE TEST REPORT
• Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600
|
 |

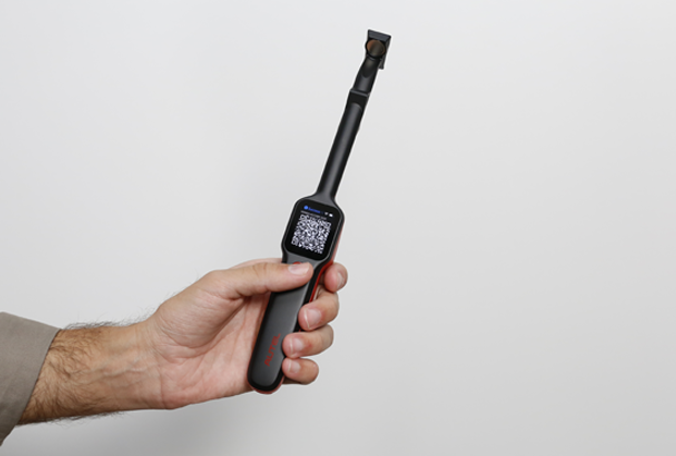

EASY TO USE QR CODE REPORT DOWNLOAD & SHARING
• Generate QR codes for tire tread depth and brake disc measurements to allow for easy report sharing & download via mobile phones or tablets.
|
 |
Device Features
* Processor- 4x ARM Cortex-A35 (1.5 GHz)
* Memory- 1 GB Ram LPDDR3 & 4 GB ROM
* Display- 1.65 Inch Amoled Touchscreen with 348x442 Resolution
* Connection Type- Wi-fi, USB 2.0 Type C
* Camera- CMOS WXGA 1 Megapixel & 8 Megapixel, 30 Fps
* Audio Output- Output: Beep
* Power and Battery - 3.7 V / 3000 mAh 18650 lithium ion battery and charged with 5V AC7DC power supply
* Battery Life - 8 Hours continuous use battery life
* Battery Charger Input - 5V / 1.5 A
* Operating Temperature- (-10 to 45 ° C)
* Storage Temperature- (-20 to 60 ° C)
* Net Weight- (188 Grams)
* Protocols - ISO9141-2, ISO14230-2, ISO15765, K / L-Line, Flashing Code,
SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High Speed, Medium Speed,
Low speed and Single wire CAN, fault proof CAN), SAE J2610, GM UART,
UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
Comparison Table
| Comparison |
MaxiTPMS TBE 200 |
MaxiTPMS TBE 100 |
| FEATURES |
|
|
| Tire tread depth/ brake disc wear measurement |
Yes |
Yes |
| No need to remove the wheel during measurement |
Yes |
Yes |
| Laser measurement |
Yes |
Yes |
| Measurement accuracy |
0.1mm |
0.1mm |
| Real-time measurement data on touchscreen |
Yes |
Yes |
| Measurement data curve display |
Yes |
Yes |
| Full tread measurement |
Yes |
Yes |
| Uneven wear analysis |
Yes |
Yes |
Replacement & Maintenance suggestions:
Tire replacement, brake disc replacement, tire rotation, four tire alignment |
Yes |
Yes |
| Quick Check |
Yes |
Yes |
| Test detail for single tire tread / brake disc |
Yes |
Yes |
| Comprehensive Test Report with TPMS |
(When used with ITS600) |
(When used with ITS600) |
| Scan DOT |
Yes |
|
| Tire expiration notice |
Yes |
|
| Tire recall lookup |
Yes |
|
| Take photos of tire wear and damage |
Yes |
|
| Compatible with Passenger cars, off-roads, commercial vehicles |
Yes |
Yes |
| Hardware |
|
|
| Size |
283x38.9x33.5mm |
277x28.7x33.5mm |
| Weight |
188g |
138.8g |
| Screen |
1.65”AMOLED super retina touchscreen |
1.65”AMOLED touchscreen |
| Camera |
1 Megapixel, 4cm macro camera; 8 Megapixel 10cm zoomable camera |
1 Megapixel, 4cm macro camera |
| Vibration reminder |
Yes |
Yes |
| Flash / RAM |
4GB/1GB |
4GB/1GB |
| Lithium-ion Battery |
3000mAh |
1300mAh |

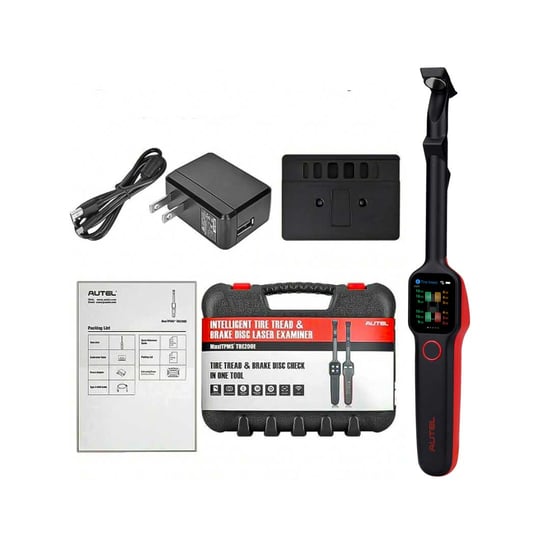

Package Contents
- MaxiTPMS TBE200 Tool
- Calibration Table
- Power Adapter
- Type C USB Cable
- Carrying Case
- Packing List
- Quick Reference Guide
