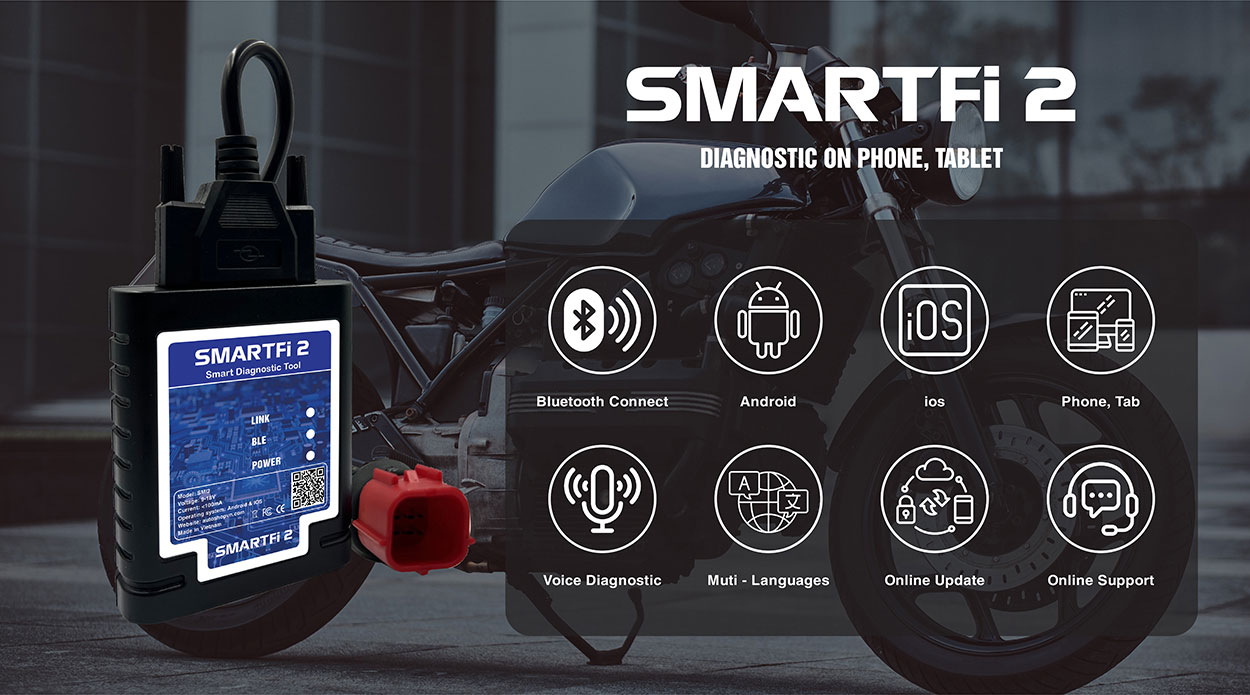

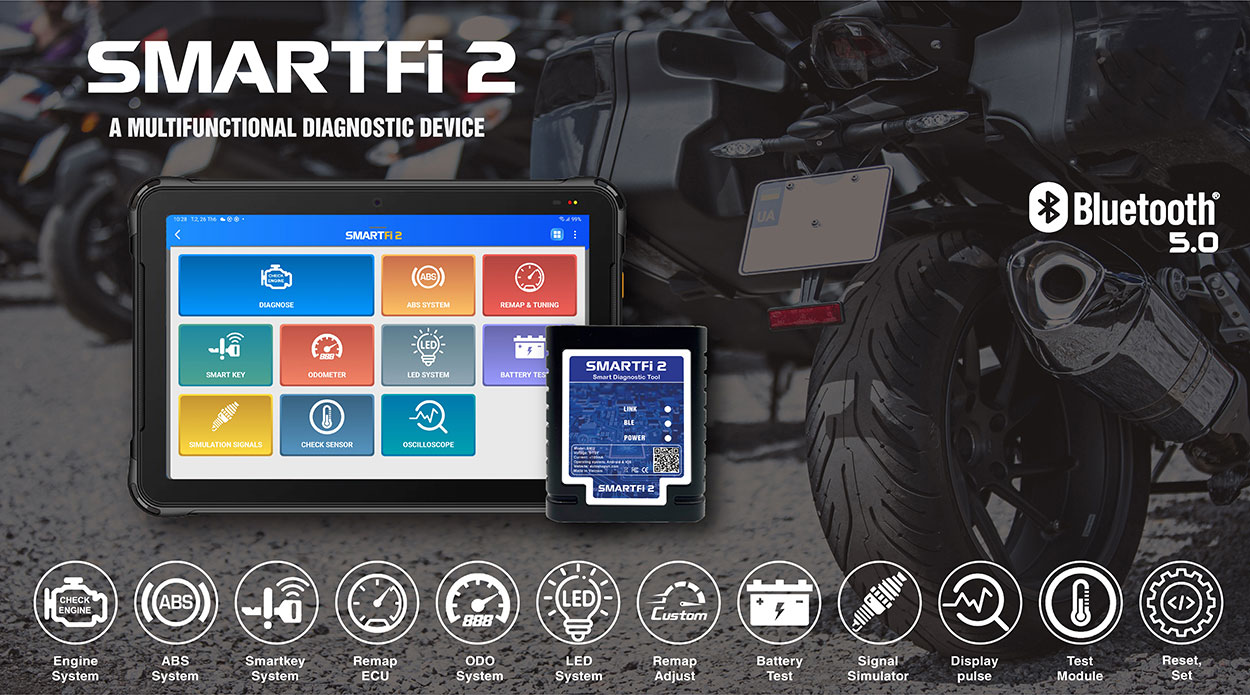

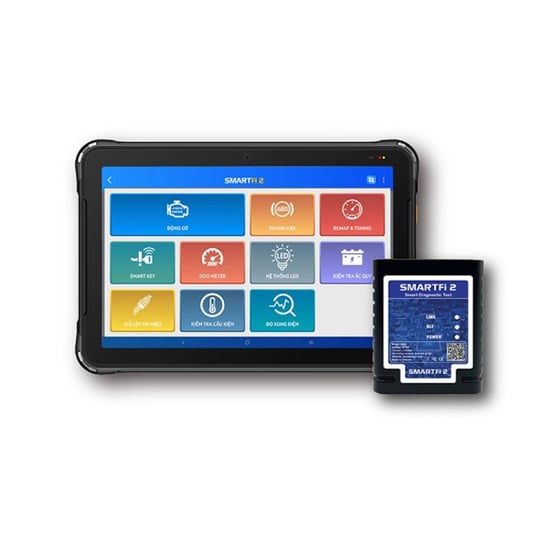

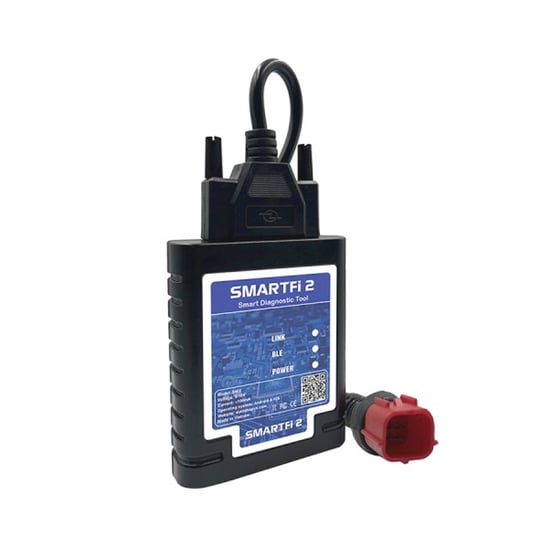

AutoShop SmartFi 2B Smart Diagnostic Tool

AutoShop SmartFi 2B Smart Diagnostic Tool 1 Years Update Subscription 1 Year Warranty

AutoShop SmartFi 2B Smart Diagnostic Tool Description:

Diagnostic Tools From Autoshop with Product Number: MK24701
This Weight Product: 2050g

Note: Tablet Not Included

AutoShop SmartFi 2B Smart Diagnostic Tool Features:

Engine and ABS diagnostic system

- Supporting motorcycles' diagnosis and error analysis via OBD standards such as Kline or Can bus protocols, supporting the latest motorcycles until 2023.

Smart key system

- Programming and setting up the smart key system when the key is lost, adding keys, and synchronizing when replacing parts.

Immobilizer security system

- Reading, writing, and resetting security codes in the ECU, programming when the keys are lost, or adding new keys.

ODO system

- Reading, writing, resetting, and storing data, ODO values saved in the EEPROM memory of the dashboard.

Battery testing

- Testing the capacity, quality of the battery, and the operation of the generator system.

Voice control

- In upcoming versions, the device supports diagnostics through voice at the basic and advanced levels.

Multi-languages

- English, Vietnamese, Thai, Indonesian, Chinese, Korean, and French.

AutoShop SmartFi 2B Smart Diagnostic Tool Functions:

1. Engine and ABS

• Automatic diagnosis, search for motorcycle information and connection
• Automatically analyze engine data to check sensors and actuators
• Activate actuator check
• Reset ECU (initialize ECU to default settings)
• Set the default value for the TPS throttle position sensor
• Analyze exhaust emissions (air/fuel ratio)
• Adjust, and optimize the A/F ratio
• Environmental factor / Altitude setting
• Reset IACV/ISC
• Upgrade, and update ECU software
• Save/view engine data parameters

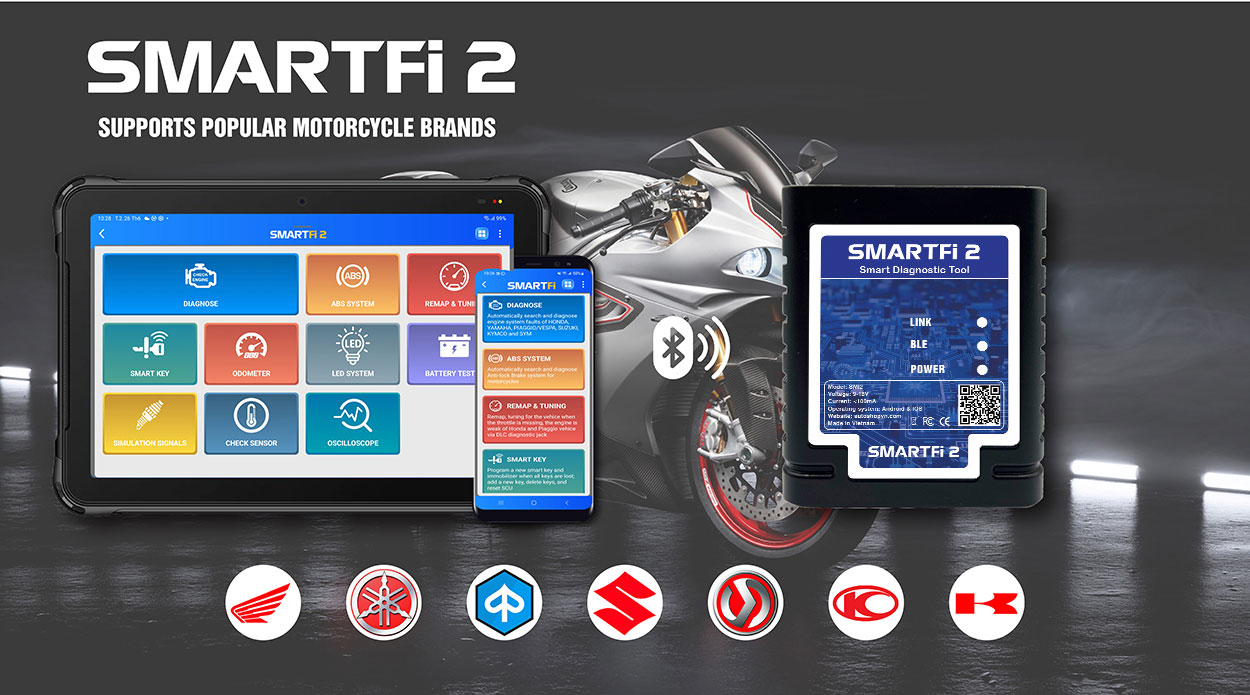

• Support for all motorcycle brands: HONDA, YAMAHA, PIAGGIO/VESPA, SUZUKI, SYM, and KYMCO

2. Smart key system

• Read/ Erase KEYID
• Read/ Reset ECMID from SCU and ECM
• Save/ Restore data in SCU and ECM
• Register new keys in all-keys lost case
• Checking the synchronization between SCU and FOB
• Reuse FOB
• Use one key for many motorcycles
• Support for all motorcycle brands: HONDA, YAMAHA, SUZUKI, and PIAGGIO/VESPA

 3. ODO adjustment

• Read/Save/Write/Reset the dashboard
• Automatically read and save bin files
• Display ODO data on the dashboard

AutoShop SmartFi 2B Smart Diagnostic Tool Update:

1. Software upgrade via DLC jack for Yamaha (Kline protocol)

- Exciter 2015-2018 (2ND0), Janus 2015-2018 (BJ73), Grande 2015-2018 (2MB1), Grande 2019-2021 (B8A0, B8A1)(B0R1)

- Note: only upgrade the company's software, don't remap and open RPM

2. Engine system

- Added advanced diagnostics for idling stop system

- Parameter "Fuel Compensation/Reduction"

- Update and upgrade software for Piaggio/Vespa with the following ECU codes: PGS06, PGN04, PGU09, PGT10

3. Smartkey system

- Yamaha renew/reset ECMID in ECM: XMAX 300 - 2019 - BBA–H591A–00, NMax - 2022: BAL-H594A-00, , XMax 300 - 2017: B4V1

- OFF Smartkey: Exciter 155 B5V0 (2021-2022)

4. ODO correction function adds motobike list

- HONDA brand: Wave Thai 2004 (93C46), CB 150F_2018 (93C66), SH 2022 (24C04), CB 150X 2023 _ 24C04

- YAMAHA Brand: Fz 250 2018 _ 93C66, R3 2018 _93C66

5. Remap/tuning function

• HONDA CAN-BUS: SH350i (2021-2023), Forza 350i (2022), CBR1000 (2021), XADV 750 (2019-2021): 38770-K1W-V13, 38770-K1WF-V11, 38770-K1W- D02, 38770-K1B-D02, 38770-K1BA-F01, 38770-K1B-T02, 38770-MKR-K11, 38770-MKR-D12, 38770-K1WH-V41, 38770-K1W-V41, 38770-MKV-D02, 38770-MKP-D01.
• HONDA ECM SHINDENGEN: ADV 160, Vario 125, Vario 160, Vision 110-2023, PCX 160, CLICK 125 - 2023: K0WL-NA1-IN01, K2VG-N42-IN01, K2VG-N32-IN01, K2SG-V01- V11, K2SG-V01-V01, K2CF-V91-V01, K2CF-VA1-V01, K0WM-TA1-TH01, K1ZN-N41-IN01, K1ZN-N51-IN01, K2VH-T11-TH01, SH 2019 – EU: K77F -D31-D0A, SH 160 – 2023: K0SJ-V71 V01, Vario 125 – 2023: K2VJ-H31, LEAD 125 – 2023: K2TA-T02-TH01.
• HONDA ECM KEIHIN: CBR150, BEAT, SCOOPY 110, GENIO 110: 38770-K25-901, 38770-K45-NL1, 38770-KPP-T03, 30400-K2F-T91, 30400-K2F-N91, 30400-K2F-N81, 30400-K0J-N61, 30400-K0J-N71.
• YAMAHA: NVX 155, Aerox 155, Lexy 125, NMax 155 (2017-2023): B64-H594A-01, B63-H594A-11, B63-H594A-30, B63-H594A-00, B63-H594A- 02/01/03, B63-H594A-10, B63-H594A-20, BF6-H594A-01, BF6-H594A-11, B1T-H594A-00, B6H-H594A-00, B6H-H594A-01, B6H- H594A-10, B6H-H594A-11, B6H-H594A-30, B3F-H594A-00, B3F-H594A-10, B3F-H594A-20, BBP-H594A-11, BBP-H594A-01, BBR-H594A- 01, B6Y-H594A-10, B6Y-H594A-20, B6Y-H594A-01, BBB-H594A-00, B9Y-H594A-00, BAL-H594A-00, TFX - 2015-2018: BG70

AutoShop SmartFi Comparison

"Option" : is the function to buy more according to need.

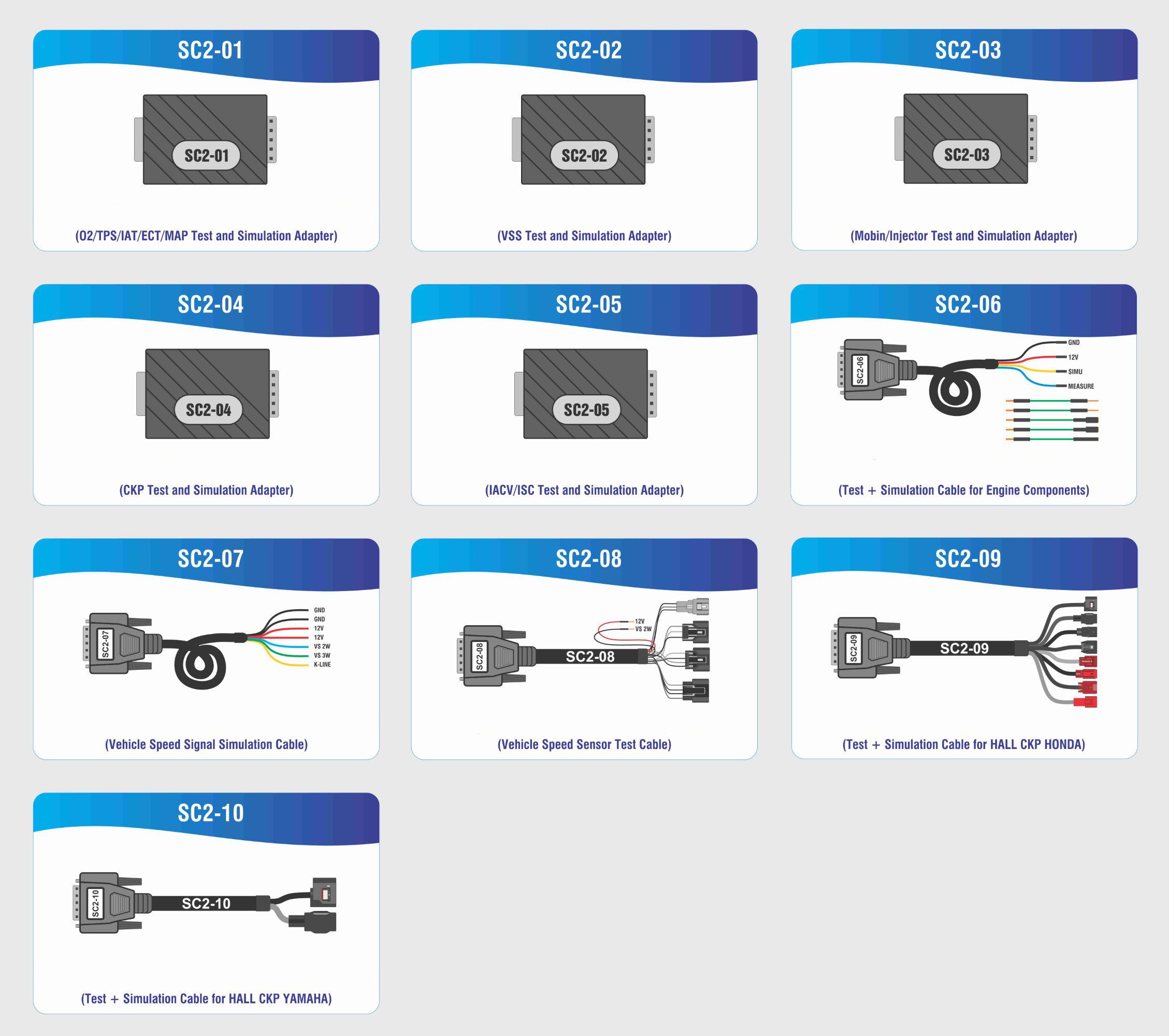

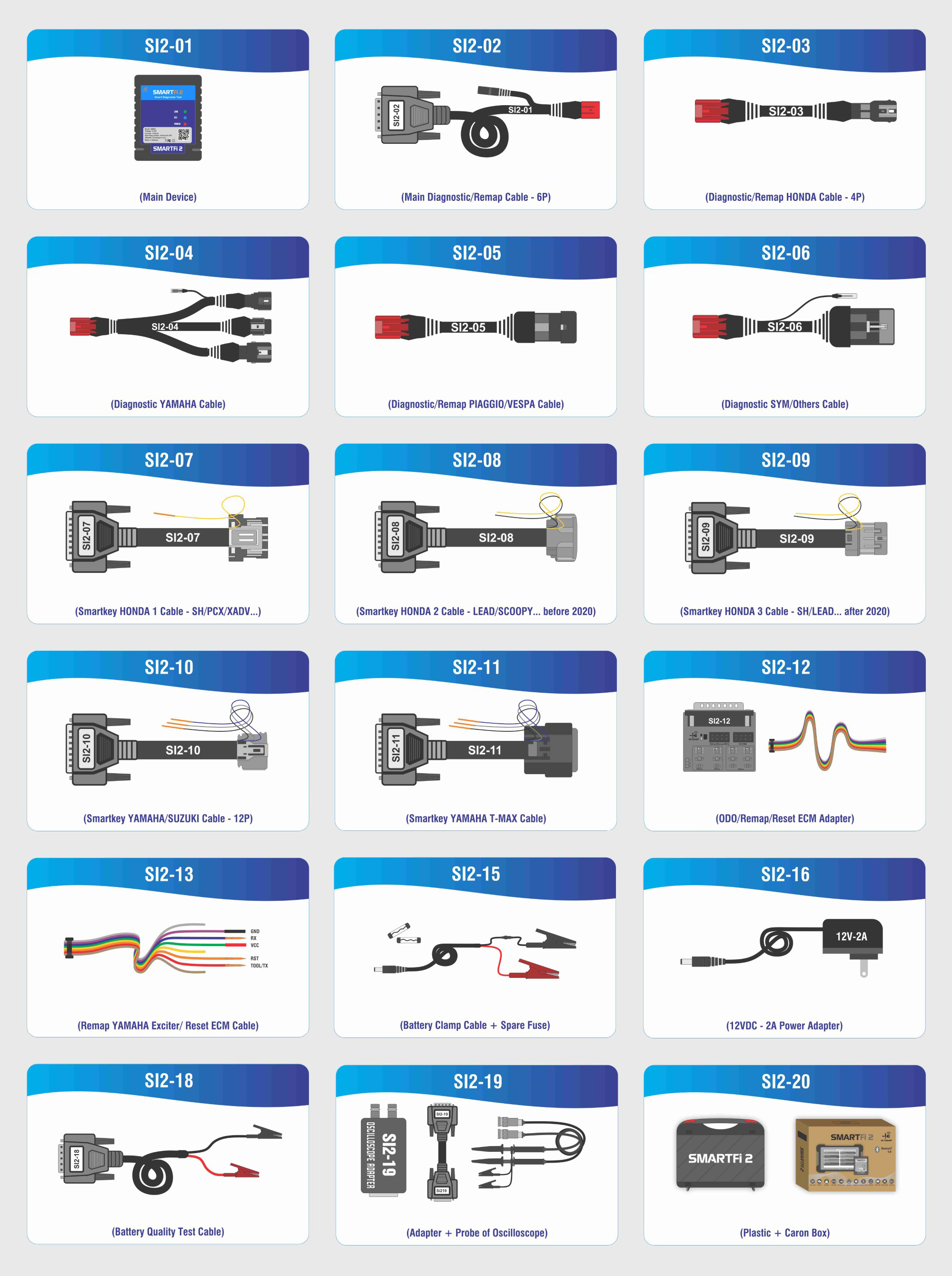

AutoShop SmartFi 2B Smart Diagnostic Tool Accessories:
