GATmatic Garage Four-Wheel Alignment Equipment

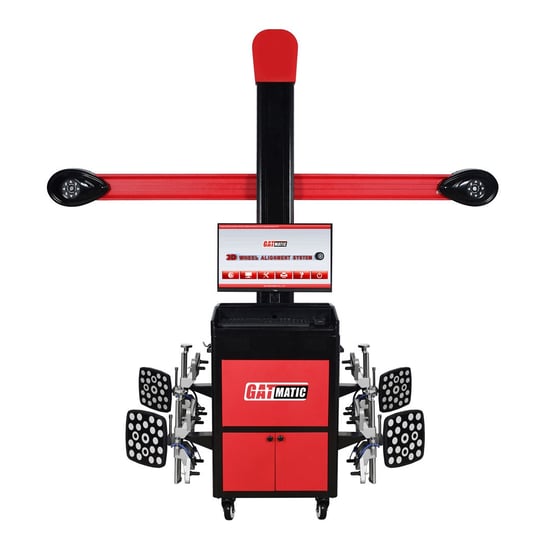

GATmatic GA-300M Garage Four-Wheel Alignment Equipment Description:
GATmatic GA-300M is a 3D wheel alignment machine that adopts innovative technology. With the patented technology, it can perform wheel aligners on small scissor lifts. The beam of the wheel alignment machine can be moved up and down automatically to track the targets automatically.
Automotive Workshop Equipment From GATmatic with Product Number: MK24714
GATmatic GA-300M Garage Four-Wheel Alignment Equipment User Manual
1. Performing on small scissor lifts
2. Two kinds of wheel clamps option
3. Automatically calculate wheel diameter
4. Support clamping the wheel from any directions
5. Real-time data reading makes adjustment easier
6. Supporting measurement in more complex situations
7. Dynamic coordinate, not affected by the inclination of car lifts
8. No need to wait during rolling or caster swing, save testing time
9. High-precision anti-throwing target, reinforced plastic enclosure

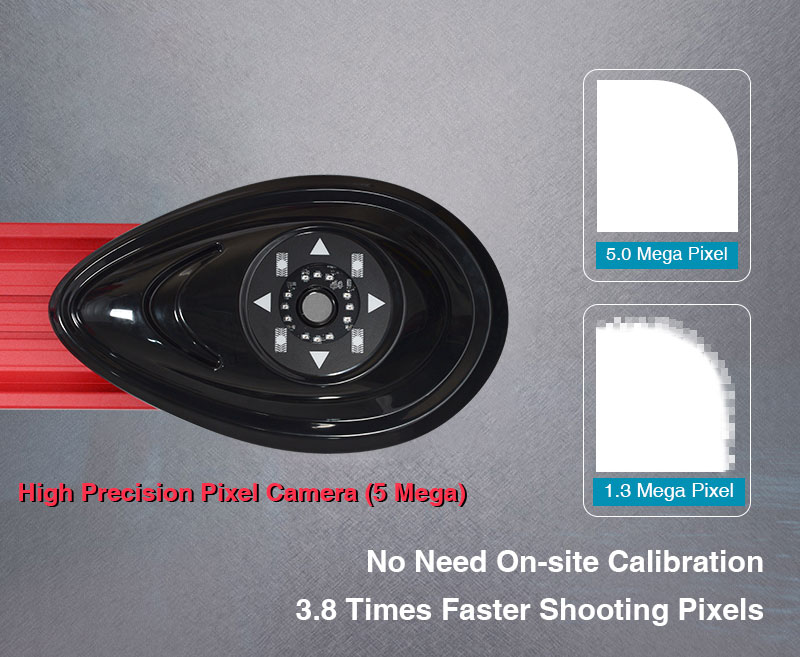

GATmatic GA-300M Garage Four-Wheel Alignment Equipment Advantages 5.0 Mega Camera
Applying 5.0-megapixel high-definition cameras, five times higher than the industry average
(1.3 megapixels). Higher-pixel cameras capture more clear images, more accurate data, and
support smaller targets.

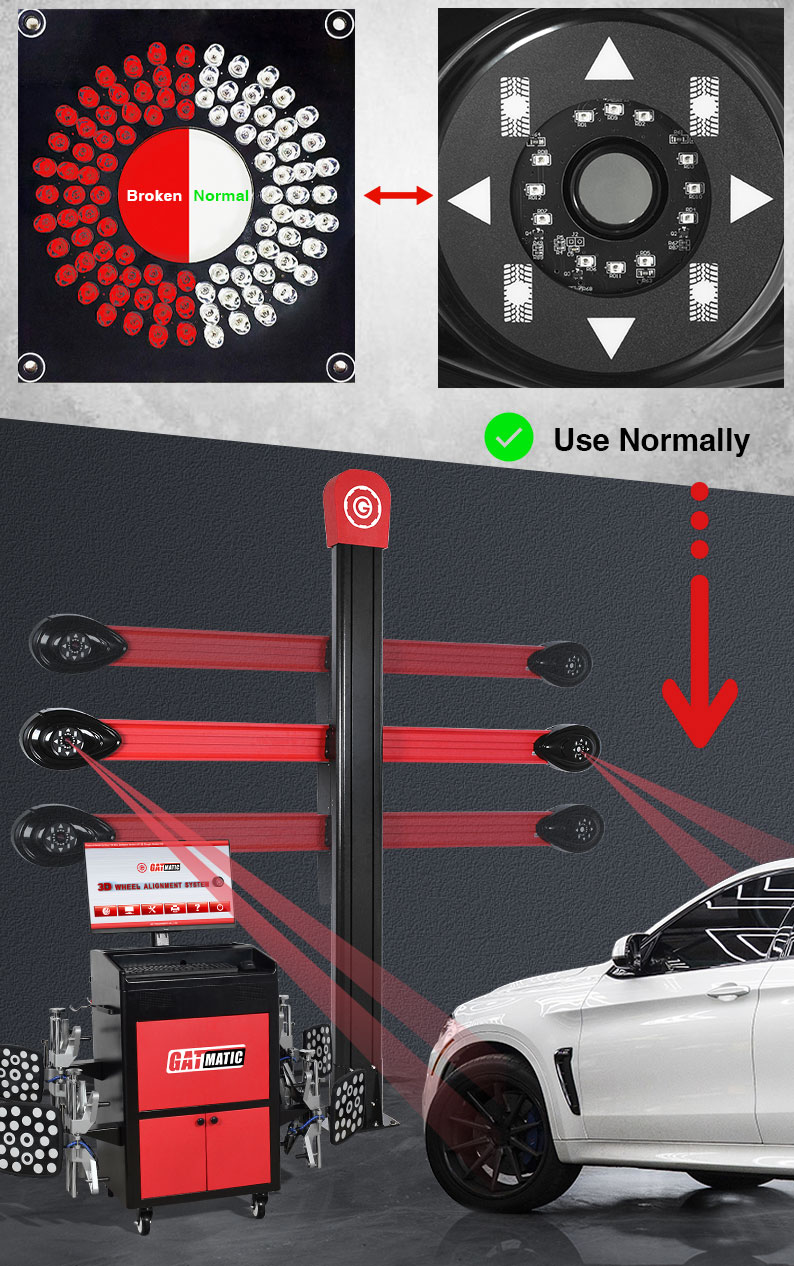

Patented LED Lights Board
Even if 50% of the LED lights were not working, the camera can be used normally. It does not
affect the use of the wheel alignment camera.

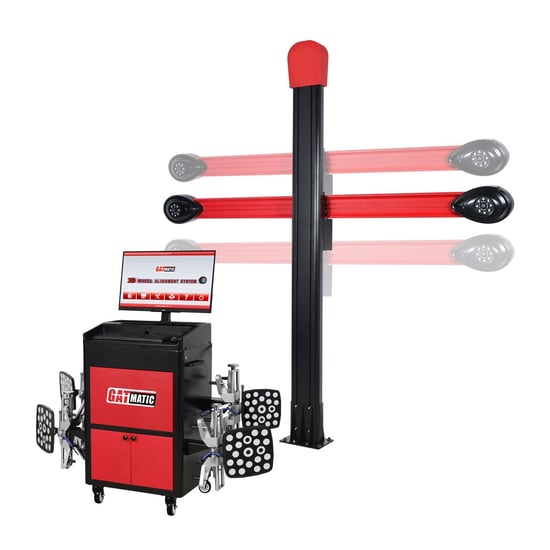

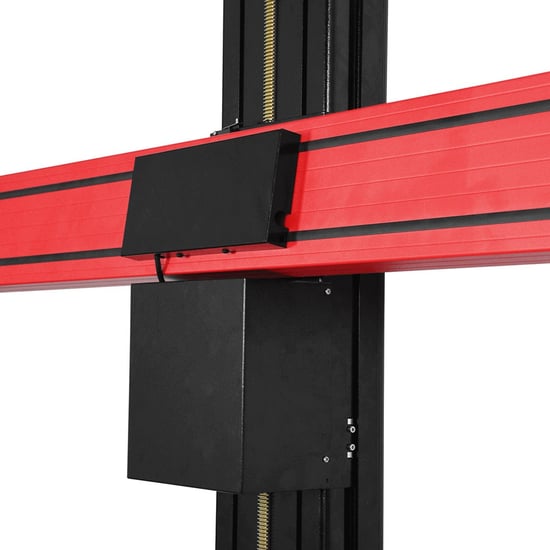

Movable Beam To Automatically Track Targets
The high-precision target has automatic tracking technology, which perfectly guarantees the
accuracy of four-wheel positioning and makes the measurement more accurate, ensures
alignment at the best working height.

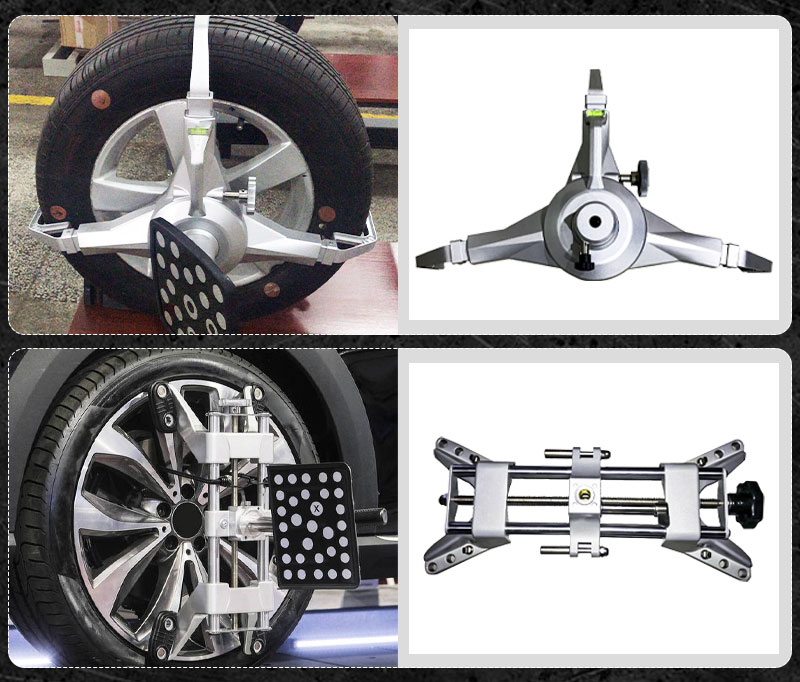

Two Kinds Of Wheel Clamps
There are two kinds of clamps in total, one is a four-jaw clamp and the other is a three-jaw clamp.

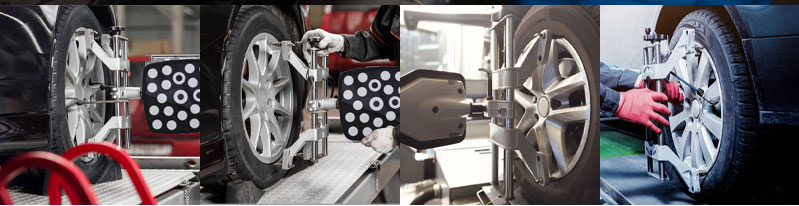

Clamps Supporting More Situations
High-quality clamps support more measurement in more complex situations, such as the
deformation of steel rings, wheel clamps, target axis, and insufficient tire pressure.

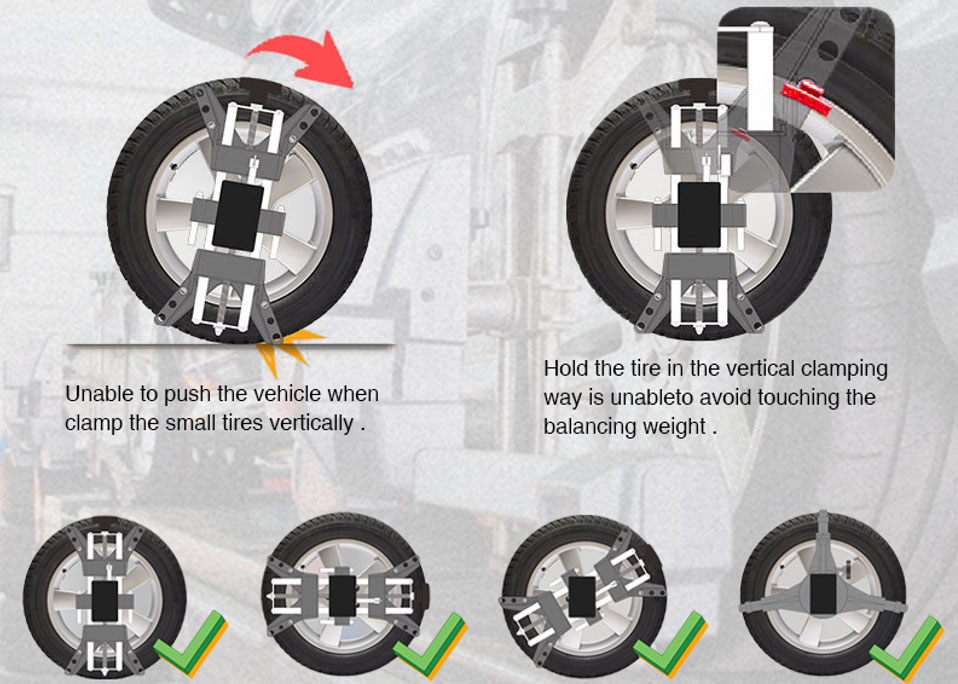

Clamping From Any Direction
Our clamps can support clamping the tire from any direction.

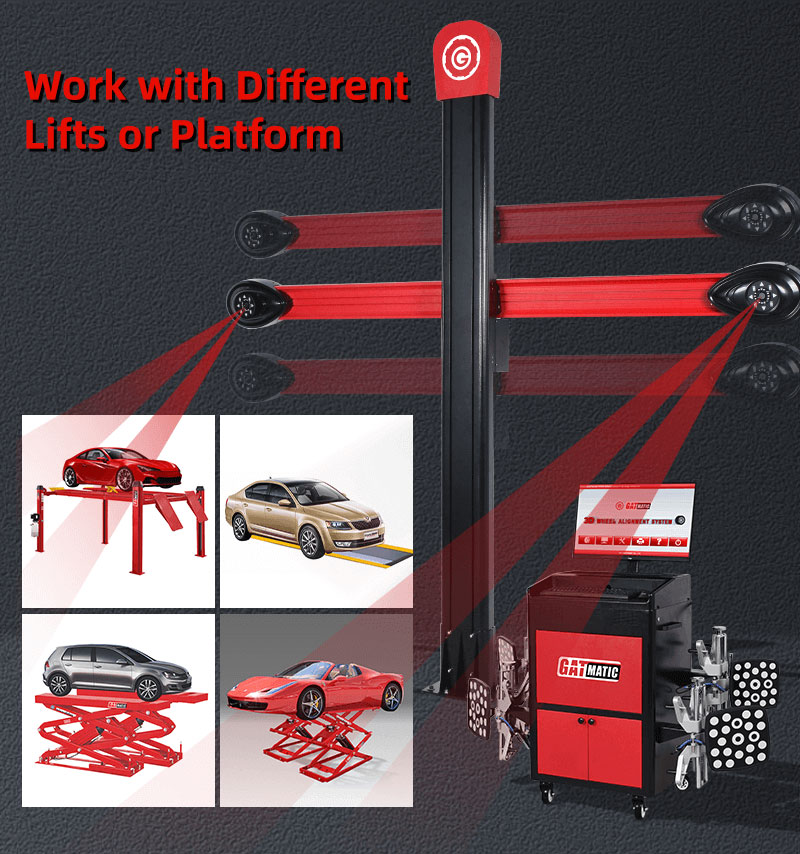

Work On Different Car Lifts & Platforms
Different kinds of car lifts such as 4-post lifts, and scissor lifts are suitable for GA-300M
3D Wheel Aligner.

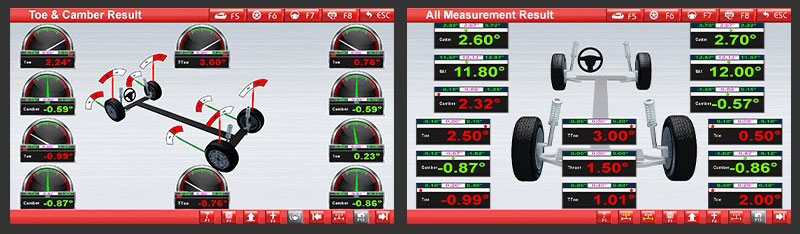

Professional Alignment Software
Self-developed 3D software to achieve OEM requirements. Moreover, the software is easy to
operate, reading basic four-wheel alignment data within a few minutes. It automatically
calculates wheel diameter, with no need to input manually with a unique quick testing mode,
saving time and working efficiently.
Multi-language & Windows OS
The software can be set in multiple languages, such as English, Spanish, Russian, German,
Arabic, Thai, and Portuguese. It is convenient for technicians to use in most countries. And
the wheel alignment machine supports Windows XP/7/ 8/ 10.
Reliable
Waterproof protected
Real-time check target picture
Perfect additional measurement
Industry's best camera and optical system
Friendly interface, fast and stable search function
A wide range of wheel clamps, with 10’’-24’’ solid & precision clamp
With a unique quick testing mode, saving time and working efficiently
Specializing 3D wheel alignment R&D, more reliable, more cost-effective
GATmatic GA-300M Garage Four-Wheel Alignment Equipment Specification
ITEM PRECISION RANGE
Toe-in ±2’ ±20°
Camber ±2’ ±20°
Caster ±4’ ±20°
SAI/KPI ±6’ ±20°
Setback ±2’ ±5°
Thrust Angle ±2’ ±5°
Tread Difference ±2mm
Wheelbase Difference ±2mm

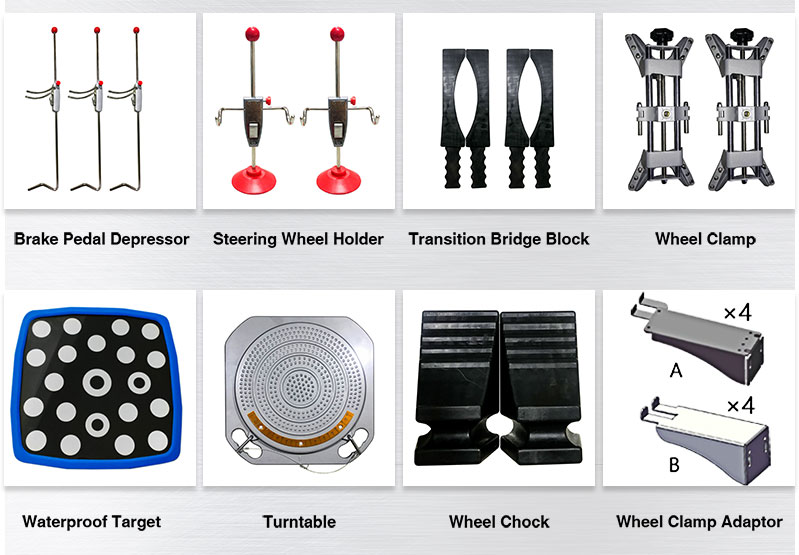

GATmatic GA-300M Garage Four-Wheel Alignment Equipment Accessories
Turntable Wheel Clamp Wheel Chock Water-proof Target
2 4 2 4
Wheel Clamp Adaptor Brake Pedal Depressor Steering Wheel Holder Transition Bridge Block
4 1 1 2

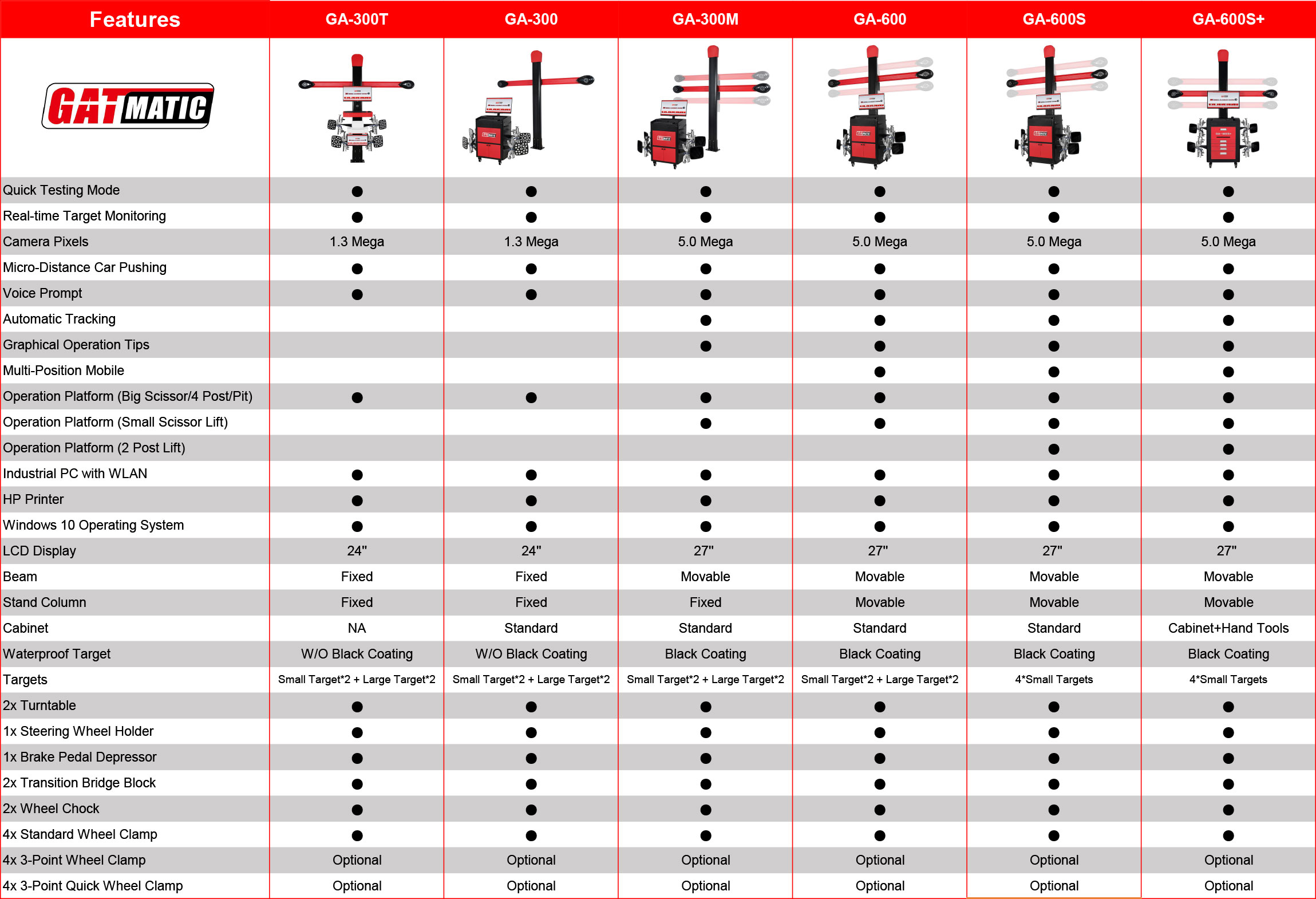

GATmatic 3D Wheel Aligner Comparison
