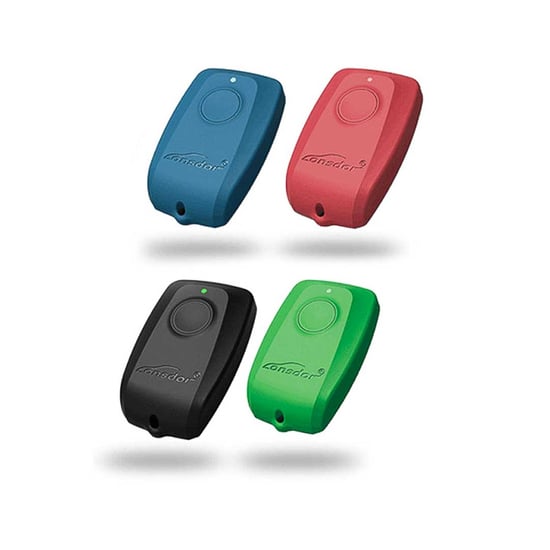

Lonsdor SKE-LT Smart Key Emulators Set for Lonsdor K518 Key Programmer

SKE-LT Smart Key Emulators Set for Lonsdor K518 Key Programmer

Product Description:

Emulator From Lonsdor with Product Number: MK8983
This Weight Product: 100g

Specs:

Manufacturer: Lonsdor
Condition: New

SKE-LT Smart Key Emulator Functions:

Bind emulator key: first use, it is required to bind SKE-LT emulator to K518ISE main unit;
Backup EEPROM data: backup on board computer immodata;
Make emergency emulator key: with the backup immodata to make the designated SKE emulator key to the key that can replace the original master key. Such key can be used to turn on the ignition, then add smart key can be proceed;
Add smart key: to add a smart key.
Delete smart key: to delete a programmed key.

Lonsdor K518ISE can program for Toyota/Lexus smart key all key lost via OBD by working together with extra SKE-LT Smart Key Emulator

SKE-LT: Smart Key emulator - for Toyota/Lexus smart key for all key lost via OBD.
Black:  SKE-LT-DST40(94/D4) -Supports 94/D4 smart key.
Red: SKE-LT-8A(88/A8)-Support 88/A8 smart key.
Green: SKE-LT-DST80(98)-Supports 98 smart key.
Blue: SKE-LT-8A(A9)-Supports A9 smart key.

1. Press and hold the power button for 2 sec to turn on/off; In start status, when standby for 2 min, the key will automatically shut down; After switching 3 times, the key will be initialized, and can be recycled again.

2. Status indicator: Blue-normal; Red-hardware failure;

3. After receiving the product, please open the back cover of each emulator and install battery first before using it.

Steps to install battery:

How to Operate the SKE-LT Smart Key Emulator on All Key Lost Situation:

1)  Binding
1. Go to the “Bind emulator key” function;
2. Turn on emulator key and put it into K518ISE key slot (put the status indicator down, make sure the key is active);
3. Following the system direction and click “OK” to start binding;
4. After binding completed, the system will indicate”Binding successful”.

2)  Backup EEPROM data
Connect K518ISE with car OBD port, enter into "Backup immodata" to back up the data.

3)  Make emergency emulator key
After choosing the immodata, in a network environment, the system will indicate to choose the corresponding SKE emulator key model, please start the key and put it into K518ISE key slot(make sure the key is activate), follow the instruction to make an emulator key.

4)  Add smart key
Click the car start button, put the generated SKE emulator key close to the start button, with induction the car will automatically activated.
The system will read current key count, then follow the instruction to add key.

Precaution:
1.“Bind emulator key”can identify the SKE emulator key binding state;
2. SKE emulator key need to bind K518ISE host and can bind only for one time;
3. When making emulator key, make sure well net connection and to choose the corresponding SKE emulator key model correctly.

SKE-LT Emulators:

Black: SKE-LT-DST40(94/D4) - Supports 94/D4 smart key.

Red: SKE-LT-8A(88/A8) - Supports 88/A8 smart key.

Blue: SKE-LT-8A(A9) - Supports A9 smart key.

Green: SKE-LT-DST80(98) - Supports 98 smart key.

SKE-LT Smart Key Emulator Catalog :

SKE-LT Smart Key Emulator introduces brand new functionality for work with Toyota/Lexus vehicles equipped with Smart Key Systems via OBD, without dismantle. Main objective of the software is to allow addition of smart keys in "all keys lost" situation by creating emulator which allows to get permission to register new keys via diagnostic equipment.

1. SKE-LT Introduction

Product name: SKE-LT Smart Key Emulator

Battery standard: CR2032=3V(Please install battery)

4 SKE-LT Emulators:

Black: SKE-LT-DST40(94/D4) - Supports 94/D4 smart key.

Red: SKE-LT-8A(88/A8) - Supports 88/A8 smart key.

Blue: SKE-LT-8A(A9) - Supports A9 smart key.

Green: SKE-LT-DST80(98) - Supports 98 smart key.

01

1. Press and hold the power button for 2 sec to turn on/off; In start status, when standby for 2 min, the key will automatically shut down; After switching 3 times, the key will be initialized, and can be recycled again.

2. Status indicator: Blue-normal; Red-hardware failure;

3. After receiving the product, please open the back cover of each emulator and install battery first before using it.

Steps to install battery:

3

2. Function & Operation

2.1 Function description

Bind emulator key: first use, it is required to bind SKE-LT emulator to K518ISE main unit;

Backup EEPROM data: backup on board computer immodata;

Make emergency emulator key: with the backup immodata to make the designated SKE emulator key to the key that can replace the original master key. Such key can be used to turn on the ignition, then add smart key can be proceed;

Add smart key: to add a smart key.

Delete smart key: to delete a programmed key.

2.2 Function operation

Operation on all key lost situation：

1) Binding

1. Go to the “Bind emulator key” function;

2. Turn on emulator key and put it into K518ISE key slot (put the status indicator down, make sure the key is active);

3. Following the system direction and click “OK” to start binding;

4. After binding completed, the system will indicate”Binding successful”.

2) Backup EEPROM data

Connect K518ISE with car OBD port, enter into "Backup immodata" to back up the data.

3) Make emergency emulator key

After choosing the immodata, in a network environment, the system will indicate to choose the corresponding SKE emulator key model, please start the key and put it into K518ISE key slot(make sure the key is activate), follow the instruction to make an emulator key.

4) Add smart key

Click the car start button, put the generated SKE emulator key close to the start button, with induction the car will automatically activated.

The system will read current key count, then follow the instruction to add key.

Precaution

1.“Bind emulator key”can identify the SKE emulator key binding state;

2. SKE emulator key need to bind K518ISE host and can bind only for one time;

3. When making emulator key, make sure well net connection and to choose the corresponding SKE emulator key model correctly.

Package List:

4pc x smart key emulator
