Product Specifications

Manufacturer	YanhuaACDP
Condition	New
Weight	2000 g

Note: you need to buy the module set of the cars that you want to work on.

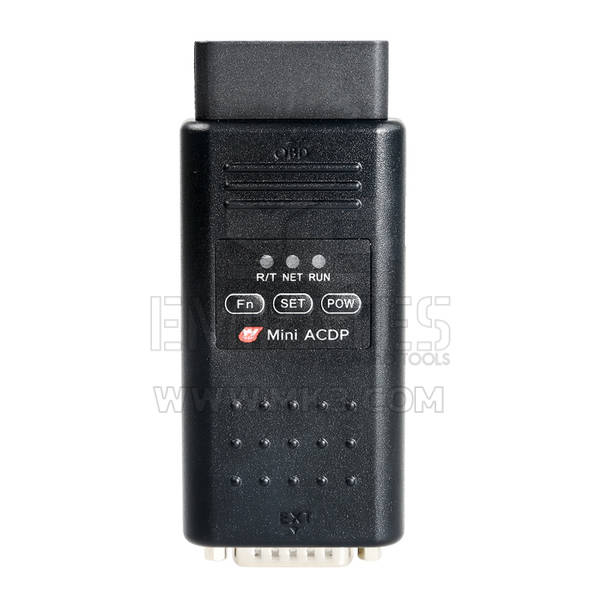

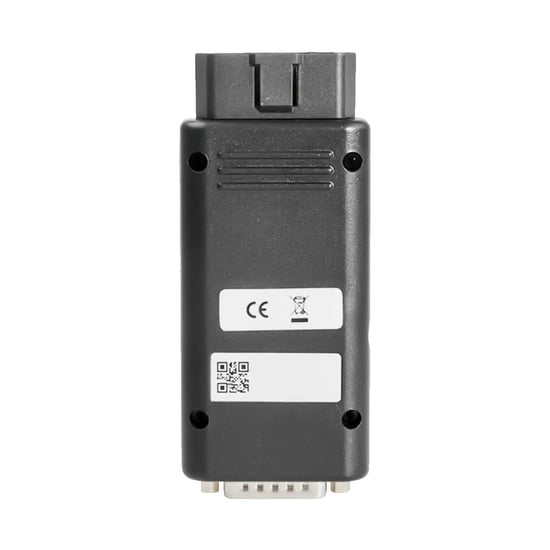

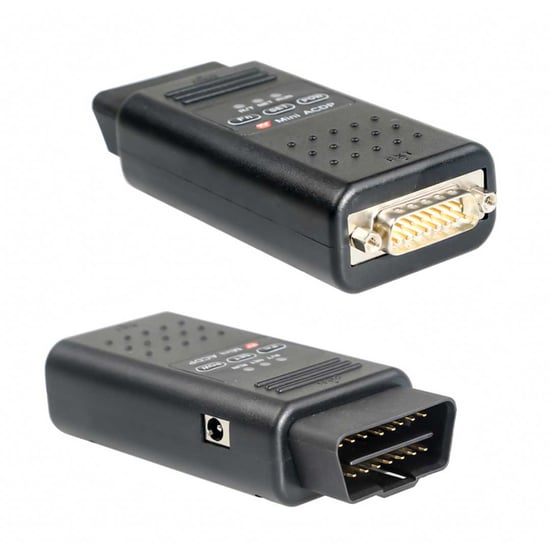

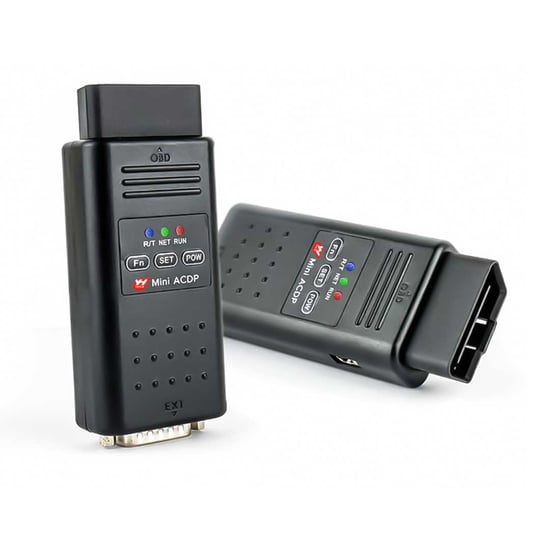

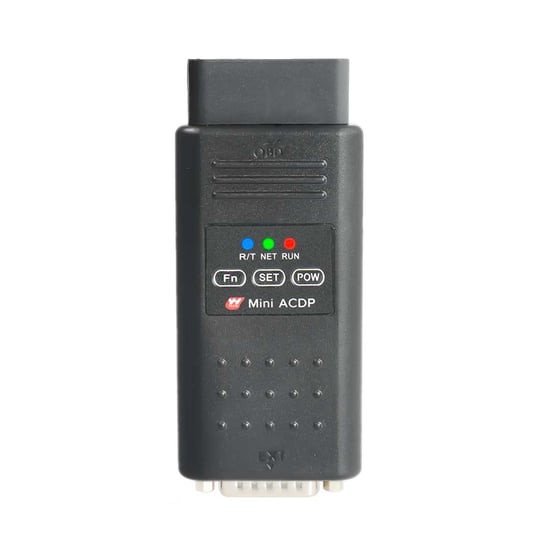

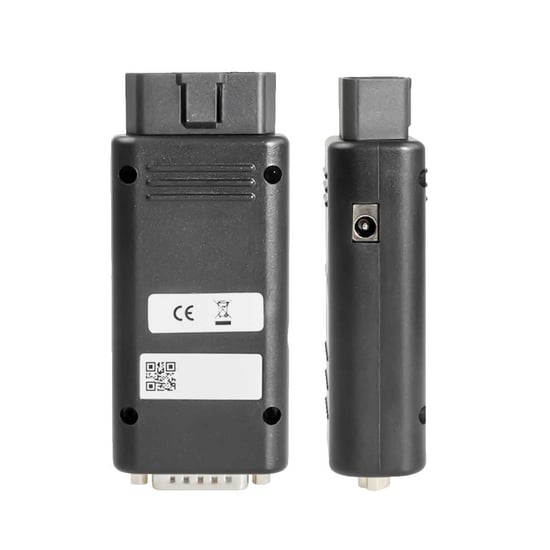

Yanhua Mini ACDP Programming Master NO Need Soldering

Yanhua Mini ACDP Support 93 /24/ 25 / 35/ 95 Series EEPROM in circuit programming (ICP) and on adapter board programming (OBP), and parts of Freescale / NEC MCU in circuit programming (ICP). This host is a necessary basic configuration for other modules.

Top 5 Reasons to choose Yanhua Mini ACDP:

Test vehicle: NO longer needs engines
Programming: NO need soldering
Locksmith: NO longer needs soldering work.
YANHUA: keys programming - NO longer need soldering iron
The first in the world:BMW CAS4/FEM/BDC/16ODOWT Programming no need soldering

Yanhua Mini ACDP Master Description:

Solder-free programming & Data safety
WiFi connection & Free connection

1. Overturn the traditional work mode
Single operation is changed to team cooperation
2. Change of operation mode
PC operation is changed to mobile phone operation
3. Change of test connection mode
Electric soldering iron is changed to no-solder dedicated connector
4. Change from artificial observation to intelligent monitoring
Artificial observation / trying is changed to automatic detection algorithm, grap hical in dication the relability of connection. Ensure the data is not damayed and lost
5. Change of service mode:
Offline service is changed to online synchronous service

Support multi-mode connection

Supporting PC/Apple IOS/Android Mobile Phone Operations Wifi Connection /Router Connection/Mobile Hot Spot Direct Connection

Operating System:
IOS: iPhone/iPad/MAC
IOS System Requirement:
1. System Version: 9.0 or above
2. Cell Phone Models: iPhone 6 or above
3. Running Memory Ram: >2G
4. Storange Space rom: >1.5G

Android: Xiaomi, OPPO,Samsung etc Qualcomm chipset mobile phones (DOESN'T support Huawei)
Android System Requirement:
1. System Version: 5.0 or Above
2. Running Memory Ram: >2G
3. Storage Space Rom: >1.5G

PC Version: Windows XP,7-10
System Version: 5.0 or above
Cell Phone Models: iPhone 6 or above
Running Memory Ram: >2G
SStorage Space Rom: >1.5G

Bluetooth and WIFI requirements and precautions

1. Bluetooth Version Requirements: 4.0 or more
2. WIFI: 2.4G (5G is not supported temporarily)
Precautions:
1. If you cannot find the ACDP with an Android phone when you are using the “Initial use settings”.
You can exit the APP and turn off the Bluetooth. When the “initialization settings” is restarted, the APP prompts to turn on the Bluetooth and turn it on again,
which will help to solve some Bluetooth connection problems for some Android phones .

2. If your WIFI route is difficult to be connected successfully, You can try to connect with another mobile phone as a WIFI hotspot.

Yanhua Mini ACDP Function:

EEPROM Programming:
Support 93/24/25/35/95 Series EEPROM in circuit programming (ICP) and on adapter board programming(OBP).

BMW module Programming:
① Support CAS1-CAS3+ IMMO key programming and mileage reset through OBD mode.
② Support CAS3+/3++, CAS4/4+key programming and mileage reset by ICP.
Data reading and writing without lifting the pin. No removing any components. Intelligent detection.
③ Support FEM/BDC IMMO key programming and mileage reset.Fully automatic mode matching.Safe,reliable and fast!Support FEM/BDC module restore, FEM/BDC backup and write anti-theft data at the same time.
④ Support key unlocking, key refresh function.
⑤ Repair (FRM) Footwell module data without coding.
⑥ Support BMW 8HP (F/G chassis) gearbox refresh. 6HP (F chassis) gearbox refresh and cloning.
⑦ Support CAS1-CAS4 data restore. It can modify vehicle frequency, VIN, ISN code, or replace CAS module by modifying EE data.
⑧ Support OBD restore CAS3/CAS3+/CAS3+ problem caused by downgrade
⑨ Read ISN codes of N20/N55/N13 by OBD or without openning the DME shell. Read ISN code of MSV70/MSV80/MSD80 without opening the DME shell. Read ISN code of other models (B38, etc.) by opening the shell.
⑩ Support instrument calibration of BMW full range.

Jaguar/Land Rover KVM module Programming:
Support Adding key and all-key-lost for new Jaguar and land rover with KVM module after year 2015.

Porsche BCM module Programming:
Support Adding key and all-key-lost for new Porsche after year 2010

Volkswagen MQB module Programming:
Support parts of VDO key programming/mileage adjustment of VW MQB platform via OBD, and Passat MMC(NEC D70F3525+95320)instrument adjustment after years 2015 by ICP mode.

Fujitsu CPU module Programming:
Support Fujitsu CPU MB91F(Honda Fit,KIA K3/K5,Sonata 9,etc.)Mileage adjustment.

Function of Airbag ECU reset/maintenance reset is under development...
Mercedes-Benz,Audi and various models is under development...

Yanhua Mini ACDP Master Module Instruction:

Item No	Module Name	Function
	ACDP Programmer	Support 93 /24/ 25 / 35/ 95 Series EEPROM in circuit programming (ICP) and on adapter board programming (OBP). This module is a necessary basic configuration for other modules.
	CAS Module	(1) Support CAS1 – CAS3+ IMMO key programming by OBD or ICP mode, Mileage reset, Read/Write EEPROM and FLASH data. (2) Support CAS4/CAS4+ IMMO key programming in circuit programming (ICP), Mileage reset, Read/Write EEPROM and FLASH data.
	FEM/BDC Module	Support FEM/BDC IMMO key programming by ICP or OBP mode, Mileage reset, Recover/Backup data.
	ISN Module	Read/write N20/N55/N13 ISN code via OBD. Read/write MSV80/MSD85 ISN code without opening DME shell. Read/write other DME ISN code by opening DME shell.
	35XX Module	Support erase/adjust mileage of 080DOWQ/T,160DOWQ/T EEPROM.
	Fujitsu CPU MB91F Module	Support Fujitsu CPU MB91F (Honda Fit, KIA K3/K5, Sonata 9, etc.) Mileage adjustment.
	MQB Module	Support parts of VDO mileage adjustment/key programming of VW MQB platform via OBD, and Passat MMC (NEC D70F3525 + 95320) instrument adjustment after years 2015 by ICP mode.
	Refresh BMW key	Refresh BMW E chassis/F chassis (CAS) key to make BMW keys can be used repeatedly.
	FRM module (FRM Footwell module)	Read and write BMW FRM module (FRM Footwell module) 0L15Y chip EEPROM/FLASH data. Read and write 3M25J chip EEPROM/D-FLASH/P-FLASH data without coding.
	Jaguar/Land Rover KVM Module	Support Adding key and all-key-lost for new Jaguar and land rover after year 2015.
	Porsche BCM Module	Support Adding key and all-key-lost for Porsche BCM.
	EGS Module	Support clearing ISN of BMW 8HP (F/G Chassis)/6HP (F Chassis) Gearbox
	Volvo ECM Module	Adding Key & All Keys Lost from 2009-2018

Note: From SK247-1 to SK247-12, the package doesn't include the main unit. For the new user, you need to buy extra main unit (sk247), if you already have the main unit, just buy the authorization with adapter.

The comparison between ACDP and other devices for reading/writing data of 8-pin chip

The other devices to use traditional way---soldering to read/write data of 8-pin chip

Need to desolder the 8-pin chip from cluster or airbag, then solder to the corresponding adapter, lastly connect device to read and write data.

Disadvantages:
1. Double soldering of the FEM/BDC core-chip 95128/95256 may cause the module damage
2. Manual soldering is risky and unreliable. Any faulty solder may cause the data lost/

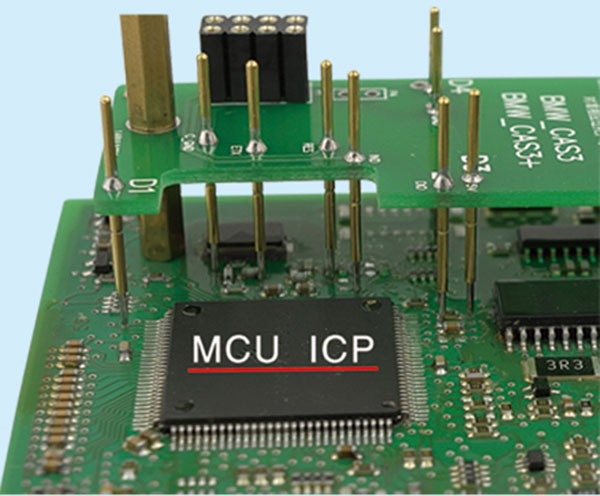

ACDP reading/writing 8-pin data by ICP

ICP: Memory and MCU programming In Circuits

MCU programming in Circuits

Advantages:

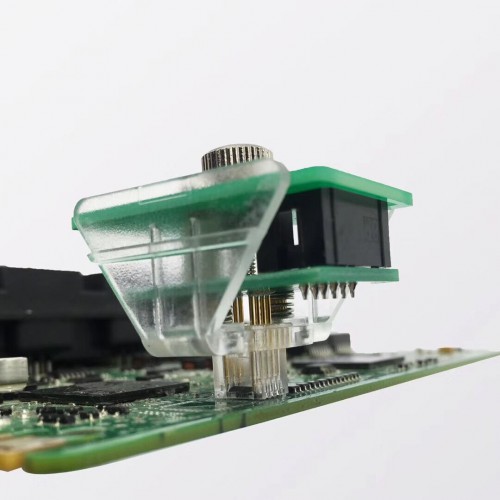

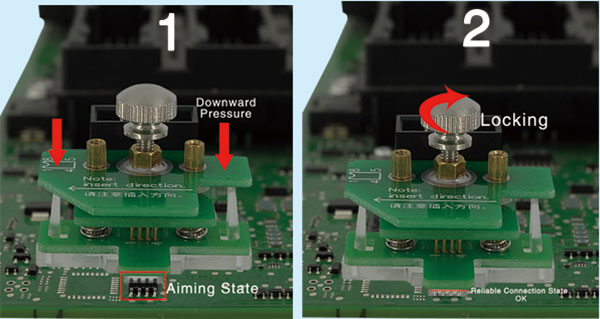

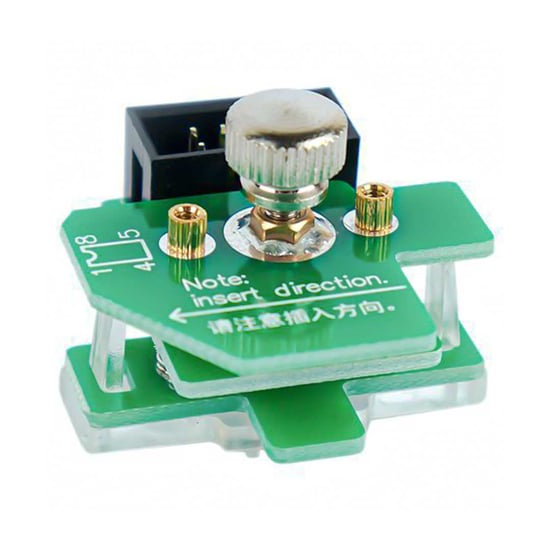

1. Special puncture socket replaces the soldering to make the operation simple and efficient

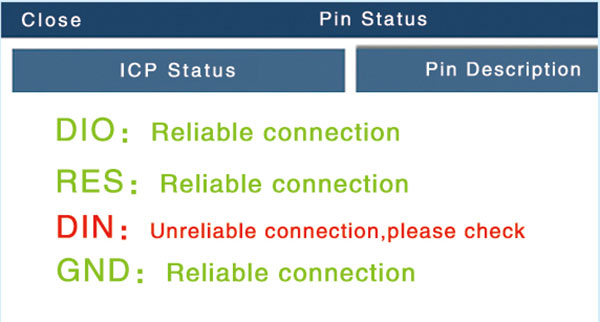

2. Pin intelligent detection to ensure data reading/writing safe and reliable

Product Code:	MK19888
Categories	Key Programming Tools
Manufacturer	YanhuaACDP

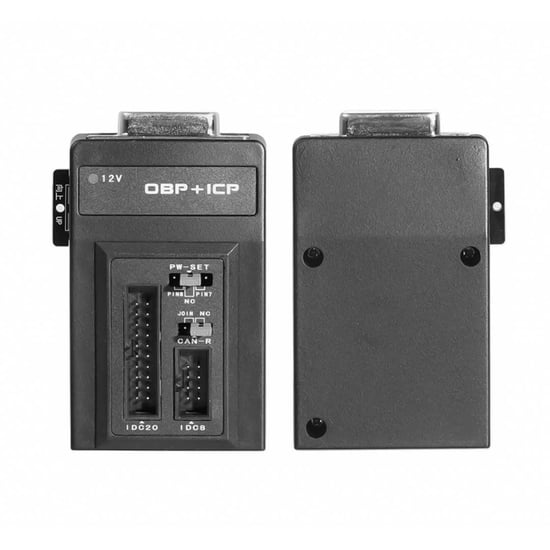

Yanhua Mini ACDP Programming Master Basic Module Device
