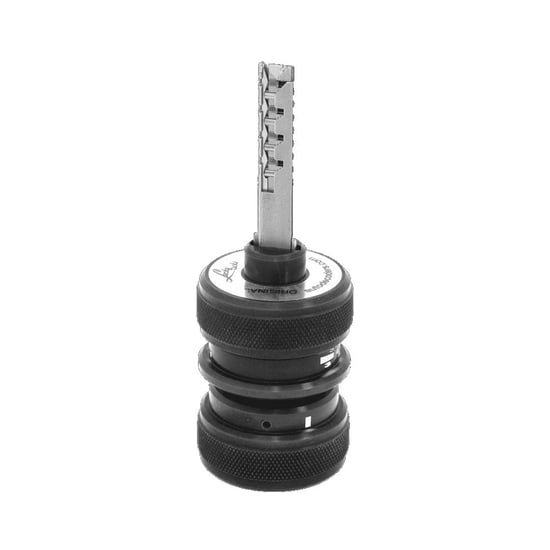

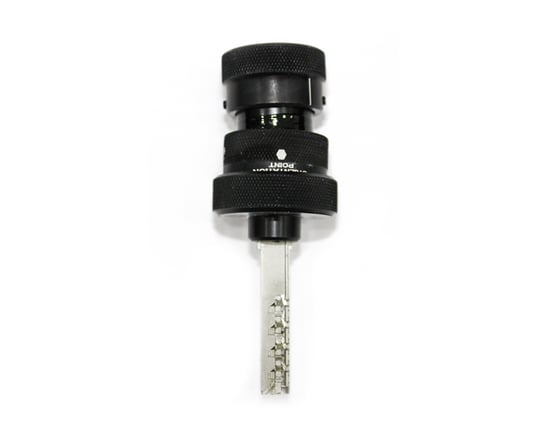

Turbo Decoder Original BMW E HU92

Turbo Decoder Original BMW HU92

Product Description:

Opening Tools From Turbo Decoder with Product Number: MK9997
This Weight Product: 300g

Specs:

Color: Black
Condition: New
Manufacturer: Turbo Decoder

Turbo Decoder HU92 BMW E series is product invented by Lucky Locks company. This turbo decoder HU92 is eaeasysier to reset, with strong unbreakable pins, and parts that are resistant to the tension required to open the locks in the fastest way possible.

The tool offers to the locksmith clean and fast opening of the vehicle – unlocks as many times as necessary. Once the opening procedure is complete, the locksmith can read /decode/ the mechanical code of the lock. If the locksmith inserts this code in a key cutting machine, he can make a working key. The tool can also turn the ignition lock and that is how the locksmith can service it – remove it or replace it. The procedure is easy to learn.

IMPORTANT: We designed this Turbo Decoder HU92 BMW E series to open original locks ONLY! We do not recommend using it with Chinese locks. Because the dimensions of the Chinese locks can cause damages to the tool!

Turbo Decoder HU92 BMW E series Supports all BMW’s till 2013

E60/ E61 /E 63 /E64/ E65/ E70/ E71/ E87/ E90/ E91/ E92/ E93

The tool is appropriate for Land Rover, MINI Cooper and Rolls Royce which use the same HU92 key profile. For more info about car models please refer to SILCA CAR REFERENCE GUIDES

If you have any questions regarding this product, feel free to contact us.

If you want to see more car unlocking devices like this one, go to our Turbo decoder catalog.

NOTE THAT ALL DEVICES ON THIS WEBSITE ARE FOR LEGAL USE ONLY!

HOW TO USE Turbo Decoder HU92 BMW E series

Good to know:

Turbo Decoder HU92 BMW E series elements explanation:

key profile – dedicated to open and decode door or ignition locks to BMW 2000-2013. Those locks are used on all models of BMW vehicles up to 2013 plus Mini Cooper,some Land Rovers and R Royce’s
sliding pins – they open, they give you the lock code!
pin bar – used for insert and extract the Turbo instrument in and out of the lock
tension wheel – to give tension during the opening procedure
pin bar activator – that wheel activate the movement of the pin bars to insert and extract the tool
turbo wheel – when rotate it to the left the pin holders move up and the pins slide respect of the lock code
Before to proceed with the opening procedure please:

clean the lock with WD40 to remove all dust or old grease stuff what can block the movement of the discs / wafers /

ensure that you have to deal with the HU92 lock profile key-way

ensure that the lock is original not china made replica!! Ask the vehicle owner if the lock have been changed in the past…

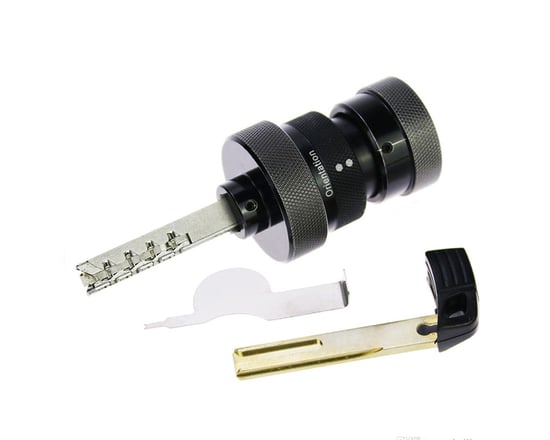

Lock orientation – usual HU92 locks have right side orientation but we have discovered also left orientated ones. For this reason we supply one TESTER KEY  for check the lock , it mechanical status and its orientation.

Insert the tester key – It must go in smoothly and when it goes all the way in the lock please look at it METAL PART RED POINT.  If the red point touch the lock face mean that your tester key is correctly inserted . NOW look at what direction is the red plastic head point. Can be right or left. Remember that – its a lock orientation and you will need to know what is..

If the metal part red point stay away from the lock face when the tester is fully inserted – No info , just extract it , reverse and insert again. Now you know:

lock model and lock orientation
lock key profile
lock status
Opening procedure of HU92

Insert the tool by follow the lock orientation discovered by your tester key.

To insert it please keep the tool on the ring of your pin activator wheel. Your pump wheel must be rotated al to the right direction!

Fit the decoder all the way into the lock. Now pull back only the pin activator wheel. When its done you will see stop sectors / 4 3 2 1  or 3 2 1 / depend of the tool version you have. Now apply LEFT tension rotating force on the tension wheel and keep it. Rotate the turbo wheel to the left till it line come to the first stop sector. Stop your rotation and go all the way to the right. Release the rotation tension. You have to repeat those steps up to 10 times and any time stop the turbo wheel to point 1.

If after your 10 pumps the lock is not opened increase the turbo wheel rotation till it line point to number 2. Again – left tension, rotate pump wheel to stop point 2, go back to the right then release the tension.

When do that 10 times if no opening – go to stop point 3 for 10 more pumps and the lock should be open!

If your objective was to open – you are done but if you want to decode that lock there is few more steps to do.

turn the lock to the left or right – no matter, keep it in rotation and do one final pimp to stop point 4 or 3 / last to the left /. Jiggle the tool by follow the plane your key blade. The lock wafers transfer their precise code to the sliding pins. Now extract the tool from the lock. Attention – extraction is important so please follow the steps.

turn the lock in neutral position
rotate the turbo wheel all to the left
push forward the pin activator wheel and ensure that it is pushed all the way.
then and only then extract the turbo decoder from the lock!
To read the lock code:

once the tool is out of the lock – pull the pin activator wheel so you can see the pins, rotate the turbo wheel to stop point 3 or 4 and only then you can start the code reading.

That lock has 8 discs. Each disc can have cut 1, 2, 3 or 4. First pin is that one closest to the tension wheel. write its code , second pin is on the other side of your tool.. write it down, continue till the last pin… to be clear please take a look at next photo: the code of that is 13242123. To cut a mechanical key insert those numbers in your CNC locksmith cutting machine.

To  reset your pins for next lock opening:

rotate the turbo wheel to stop point 1, pull back the pin activators so your pins become visible.
use HU92 engraved reset tool. Inject it under the pin as it shown on the photo.
Press the pin till it stop. That is.
Repeat the same with all pins and please keep an finger under the key blade to avoid bends during the pin pushing.
Remember  – the pins slide easy so not need to apply strong pushing!
