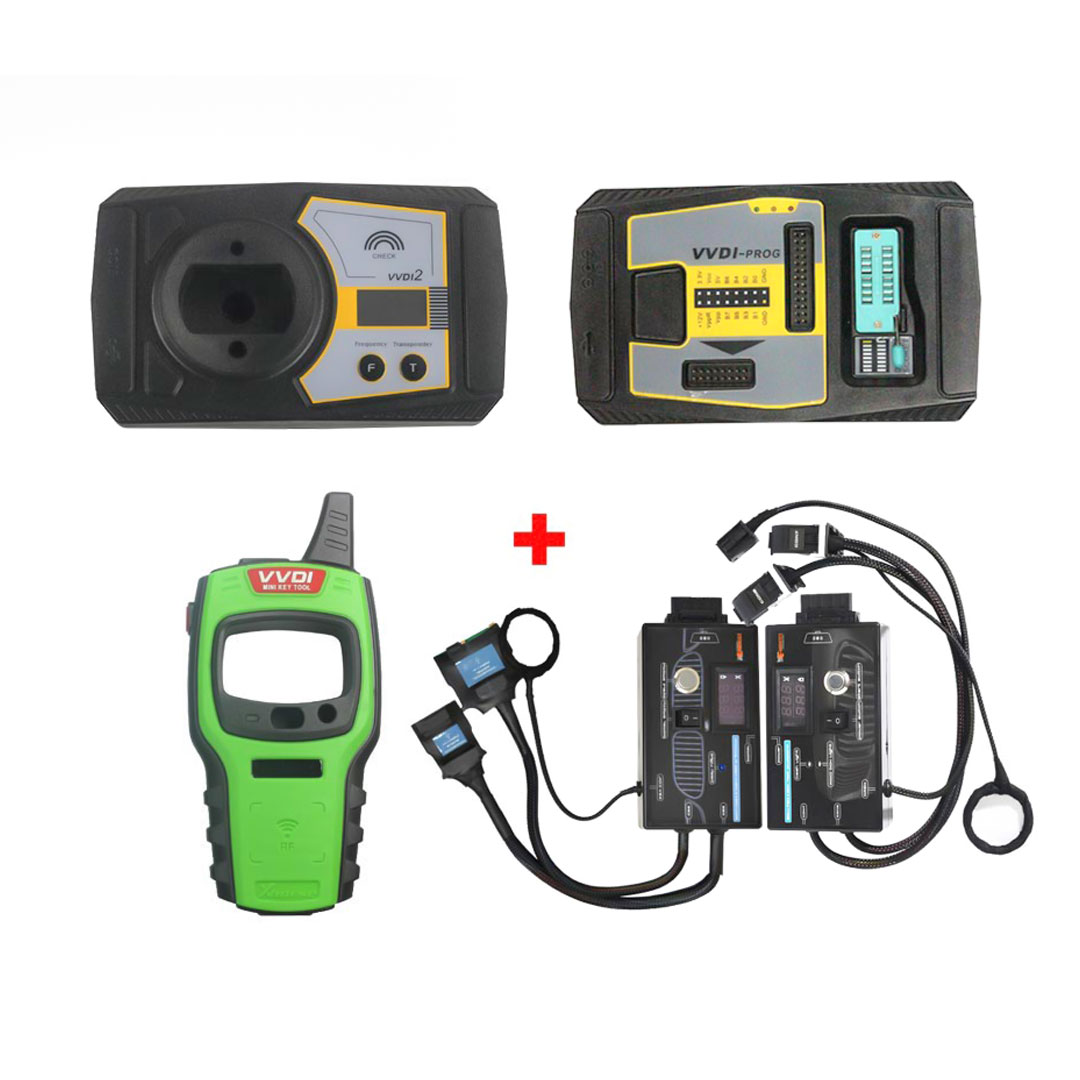

Xhorse VVDI2 VVDI 2 & VVDI Prog & Mini Key Tool & CAS4 CAS4+ Test Platform & FEM BDC F20 F35 X5 X6 Test Platform

Xhorse VVDI2 VVDI 2 & VVDI Prog & Mini Key Tool & CAS4 CAS4+ Test Platform & FEM BDC F20 F35 X5 X6 Test Platform

Product Description:

Key Programming / ECU Diagnostics Tools From Xhorse with Product Number: MKON77
This Weight Product: 4300g

Specs:

Condition: New
Manufacturer: Xhorse

VVDI2 All Activated including all following authorizations:

1. √ VV-01 VAG 4th immobilizer
2. √ VV-02 VAG 5th immobilizer
3. √ VV-03 VAG Copy 48 transponder by OBDII
4. √ VV-04 ID48 96Bit Copy
5. √ VV-05 VAG MQB Immobilizer
6. √ VB-01 BMW OBD
7. √ VB-02 BMW CAS4 key learning
8. √ VB-03 FEM/BDC Function
9. √ VP-01 Porsche Immo data tool
10. √ VPSA-01 PSA
11. √ VK-01 Transponder Programmer
12. √ VJ-01 Passthru J2534
13. √ V7-01 Prepare Toyota H Chip

Toyota H Chip authorization (customer activate it freely): Search 'Xhorse’ from google play or apple store - use phone number to log in - bind vvdi2 - app home page - shop - bonus points - use 0 points to activate Toyota H chip

VVDI2 Update Log:

2021-09-28

Require firmware V7.1.1

VAG V7.1.1

1. Support 2013-2019 A4L/A5/Q5 add key and all key lost; Support 2013-2019 A6L/A7/A8 get BCM2 immodata while all key lost (Menu->Key learn->Fifth immobilizer system-Locked BCM2 version)
2. Because different vehicle has different end time, we only support IMMO5 cars with BCM2
3. Require VVDI PROG and VVDI BCM2 adapter help
4. Must follow VVDI2 instructions to do this job
5. 2013-2019 A6L/A7/A8 add key can get BCM2 immodata directly via OBDII
6. 2013-2019 A6L/A7/A8 require synchronize data, synchronize data can get from 3rd service provider
7. After gets BCM2 immodata, go to Fifth immobilizer system to learn key
8. Bugfix

BMW V7.1.1

1. Update BMW user manual to V2.0 version
2. Bugfix

Free Download Xhorse VVDI2 User Manuals:

vvdi2_full_manual

vvdi2-update-online-manual

vvdi2-install-software-and-driver-manual

vvdi2-transponder-programmer-user-manual

vvdi2-vag-user-manual

vvdi2-bmw-user-manual

Top 5 Reasons to Get VVDI 2:

• This VVDI2 comes with Basic Function + VW + AUDI Generation 5 function + Porsche BMW OBD Function + BMW CAS4 function + MQB + Copy 48by OBDII + COPY 48 96BIT + BMW FEM + Free pin, cs, mac authorization + English remote database
• VVDI2 Covers All the Functions of VVDI, VVDI 5th IMMO Adapter, BMW Multi Tool, CAS4 Adapter, Most functions of Tango, J2534
• Support VW, Audi, BMW and Porsche and remotes
• Provide Exchange Service for Old VVDI, Item number: SV86-1
• Free active the "pin, cs, mac authorization" and MQB Authorization and English remote database. After receive the VVDI2, pls just give us serial number to active.

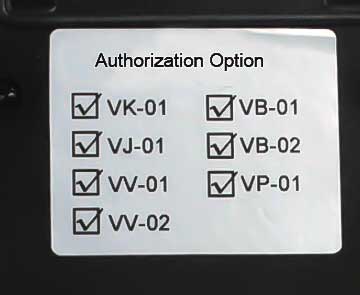

Activated Software List:

• VV-01 VAG 4th immobilizer
• VV-02 VAG 5th immobilizer
• VB-01 BMW OBD
• VB-02 BMW CAS4
• VP-01 Porsche Immo data tool
• VPSA-01 PSA
• VK-01 Transponder Programmer
• VJ-01 Passthru J2534
• VV-05 Toyota H Software Activation
• VV-05 VAG MQB immobilizer function

sent Extra License Freely:

VV-03 VAG copy 48

VV-04 Copy 48 Transponder (96 bit) + MQB

VB-03 BMW FEM/BDC

VT-01 Toyota H Chip

Xhorse VVDI2 Using Notice:

1.VVDI 96bit ID48 cloning costs 100 points each time.

2.Now it's free to activate the VAG EDC17 PIN, MAC, CS calculation via EEprom and flash dump

(When you receive the package, give us your SN number, then will activate it for you.)

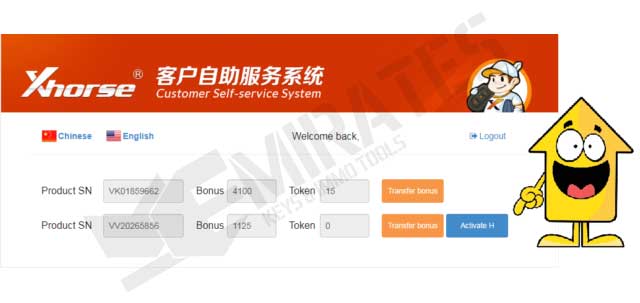

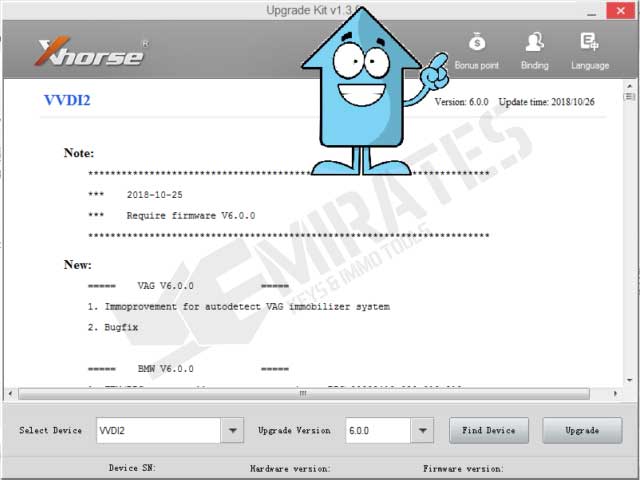

3.How to open the Toyota H Chip Activation:

1) Connect VVDI2 to PC via USB cable

2) Open Upgrade kit, select VVDI2

and go to System Point

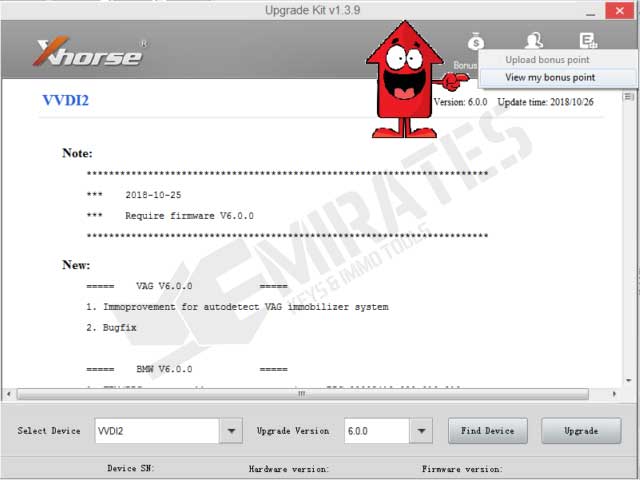

3) Click View My Bonus Points

4)Type Login and password for your account on Customer Self Service website

5) Select Activate H

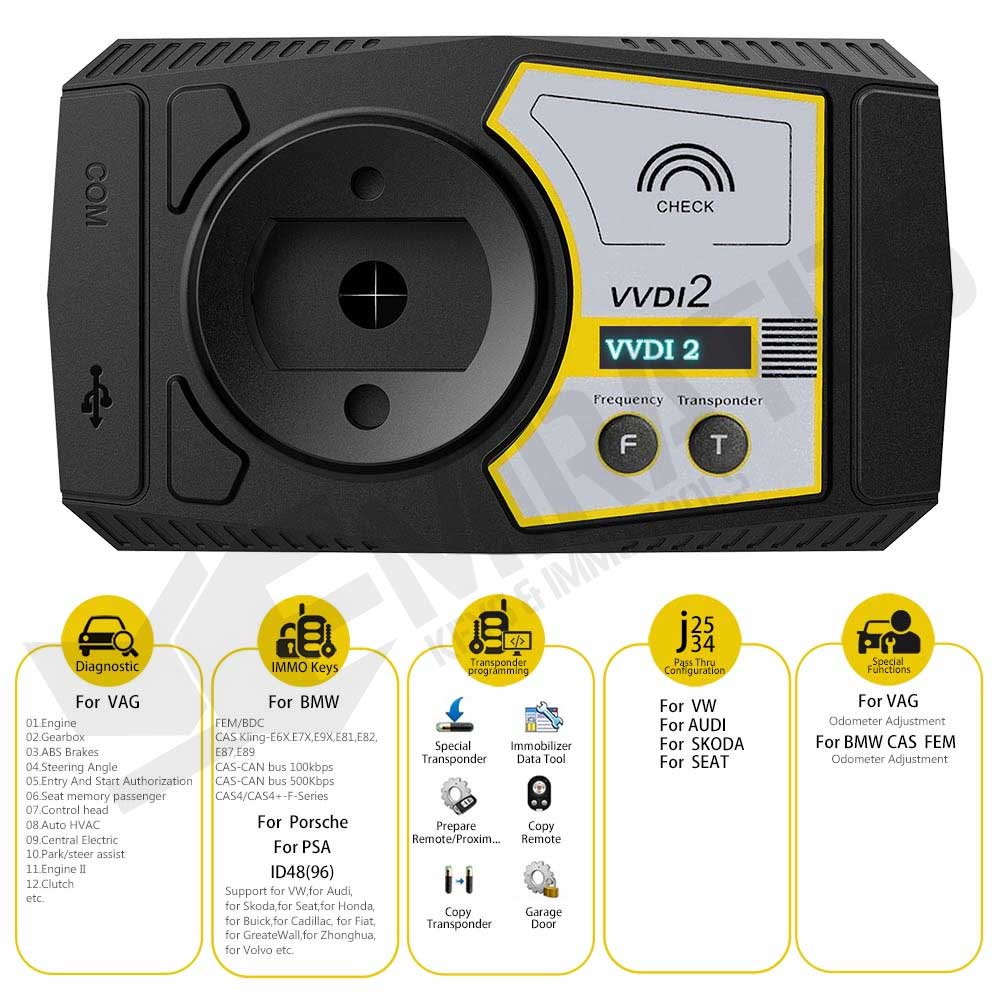

VVDI2 Full Software:

VVDI 2 VAG Software:

VVDI2 VAG software support VAG Vehicles: VW, Audi, Seat, Skoda, 4th immobilizer Porsche, 4th immobilizer Bentley

Xhorse VVDI2 Vag Software mainly include: VAG Diagnostic, VAG 4th immobilizer programming, VAG 5th immobilizer programming, VAG key learn, VAG BCM remote control, VAG Engine control unit, Kline instrument and IMMO box, VAG adapt unit, component protection, VAG dump tool etc...

Xhorse VVDI2 VAG Software main features:

• VVDI2 Read & write Immo4/Immo5 system
• VVDI2 Learn VAG key
• VVDI2 Program VAG BCM remote
• VVDI2 K-Line instrument immobilizer box
• VVDI2 Correct VAG odometer
• VVDI2 Program VAG control unit
• VVDI2 Unlock VAG Immo1/Immo2 firmware protection
• VVDI2 Supports VAG data manipulation tools
• VVDI2 VAG OBD Key Programmer, Program keys for VAG group
• VVDI2 K-line instrument /Immo box Pin code reading & key programming
• VVDI2 adapt VAG unit module component protection, dump tool, and so on
• VVDI2 VAG MQB pin code reading, key precoding & programming
• VVDI2 VAG BDM method to read BCM2 Data
• VVDI2 Read VAG PIN Code, VAG CS Code, MAC, change VAG KM, switch VAG Immo OFF/ VAG Immo ON, read flash. Also, VVDI2 provides an auto-detect function.
• VVDI2 VAG EEPROM dump tool Supports decode VAG ECU EEPROM, Kessy module, J518 module, comfort module, change KM for cluster EEPROM dump etc.

Porsche Software:

VVDI 2 Porsche software now only support prepare dealer key for Porsche with BCM2 EEPROM support and learn dealer key via OBDII.

VVDI2 Porsche EEPROM support: VVDI2 Porsche BCM2 1L15Y, VVDI2 Porsche BCM2 2M25J, VVDI2 Porsche BCM2 5M48H, VVDI2 Porsche BCM2 1N35H etc.

Transponder Programmer Introduction:

Remote transponder programmer, hundred kinds of special transponders, thousand kinds of vehicles supported Immo data tool,

prepare remote, copy remote, copy transponder (11,12,13,40,44, Hitags (46),48), other key tool (find 7th CS from working key) etc.

Transponder Programmer software main features:

• VVDI2 transponder chip identifying & VVDI2 transponder chip cloning
• VVDI2 transponder chip ID48 96bit cloning
• VVDI2 Toyota Transponder chip TRPWS21 (H-chip) producing
• VVDI2 generate specialized chips
• VVDI2 Immobilizer data processing tool to generate transponder chip using Eeprom data for immobilizer
• VVDI2 other key tools
• VVDI2 generate Remote Controls & Smart keys using Xhorse Special remote with wide coverage for over 1200 Vehicle models using Xhorse Smart keys & Xhorse remotes
• VVDI2 generate & clone Garage fixed code remotes using Xhorse universal remotes
• VVDI2 unlock OEM remote controls & unlock Smart keys for various brands

BMW Software:

Mainly function: Read/Write EWS, read CAS information, Read/Write CAS EEPROM, Read/Write KM stored in CAS, synchronization DME with CAS, synchronization CAS with ELV, Key Learn (IMMO), File Make Key, Unlock Key, File Change KM, CAS Repair etc.

OBD Flash ISTA version only needs 10 minutes. (No extra power. No backup CAS EEPROM and FLASH).

VVDI2 BMW software main functions:

• VVDI2 Correct BMW odometer
• VVDI2 Generate BMW key
• VVDI2 Unlock BMW key
• VVDI2 Fix BMW CAS computer
• VVDI2 Read ISN of BMW DME and program keys for BMW
• VVDI2 BMW Key Programmer for CAS1 CAS2 CAS3 CAS3+ CAS4 CAS4+
• VVDI2 BMW Key Programming Tool for EWS1 EWS2 EWS3 EWS3+ EWS4
• VVDI2 Downgrade BMW CAS & ECU software version (required for key programming for some models)
• VVDI2 BMW ISN code reading from DME without the vehicle
• VVDI2 BMW FEM / BDC key programming and programming backup & Restore coding
• VVDI2 support BMW FEM reset / BDC KM reset (cluster require reset manually)
• VVDI2 support erase BMW keys (after erasing the key position become blank position)
• VVDI2 synchronize BMW DME-CAS, synchronize CAS-ELV
• VVDI2 BMW Immobilizer data processing tool
• VVDI2 BMW (CAS1/CAS2/CAS3/CAS3+/CAS4/CAS4+) Key programming by OBD & Eeprom file maker

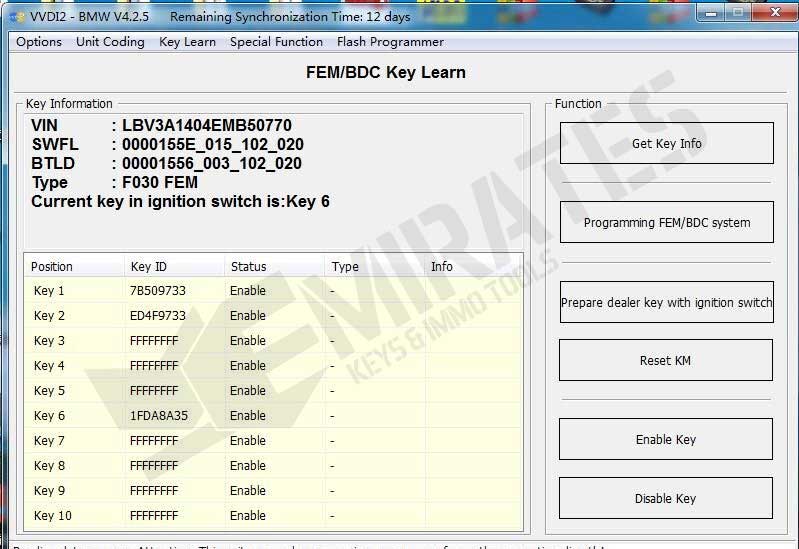

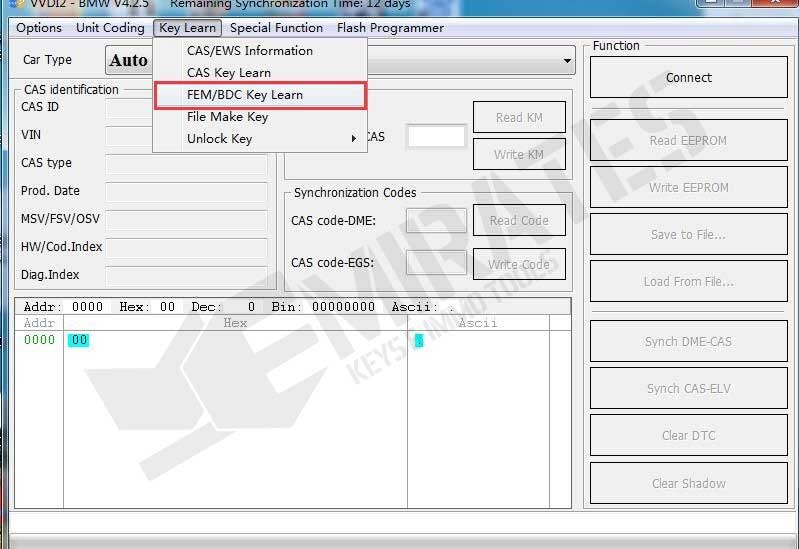

VVDI2 BMW FEM/BDC Function:

Users can refer to following information (3 steps for make keys: get key info->programming FEM/BDC system->make keys)

1.support make new key with ignition switch (support add spare key and all key lost, all key lost require ISN)

2.support reset FEM/BDC KM (cluster require reset manually)

3.support erase key (after erase the key position become blank position)

4.support backup coding

5.support restore coding

Notes:

• backup coding and restore coding can direct operation generally.
• add keys, reset KM, erase key must programming FEM/BDC system first
• in FEM/BDC interface, if 'get key info' the type not support, it will show: customer should use "BMW E-sys software" program FEM/BDC system. Then programming FEM/BDC system with VVDI2-BMW
• when operation on 'programming FEM/BDC system'interface, please don't close this software window until all procedures completed.
• programming FEM/BDC system, require soldering and get eeprom. （FEM 95128 chip, BDC 95256 chip）usually there are 2 same chips on the module, please refer to the software diagram, select the correct one.
• programming FEM/BDC system, must restore the original eeprom, restore coding. If cannot restore coding or after restore coding assemble FEM/BDC module back to car, but with problem (such as the remote control cannot start the car or the car with window problem) please use "BMW E-sys software" coding for FEM/BDC system
• if connect power to FEM/BDC module, but the relay keeps ringing, please contact technical support for help. Usually operation on FEM/BDC should be ok,just need to programming.

Others vvdi2 functions list:

Peugeot/Citroen/DS get password, key learn

Test remote frequency

Support PASSTHRU J2534, can be used by third party software ODIS ect. With built-in switch matrix, it supports third-party diagnostic software including:

ODIS, Toyota TIS techstream etc.

To perform VVDI2 diagnostic function, third-party diagnostic software should be compatible with J2534 function.

VVDI2 VAG ID48 Model Add Key & All Keys Lost Supported:

2015 Skoda Octavia

2015 VW Passat smart key

2015 VW Scirocco smart key

2015 Audi Q3

2014, 2015, 2016 Tiguan smart key

parts of 24C64, 24C32 all keys lost without removing dash

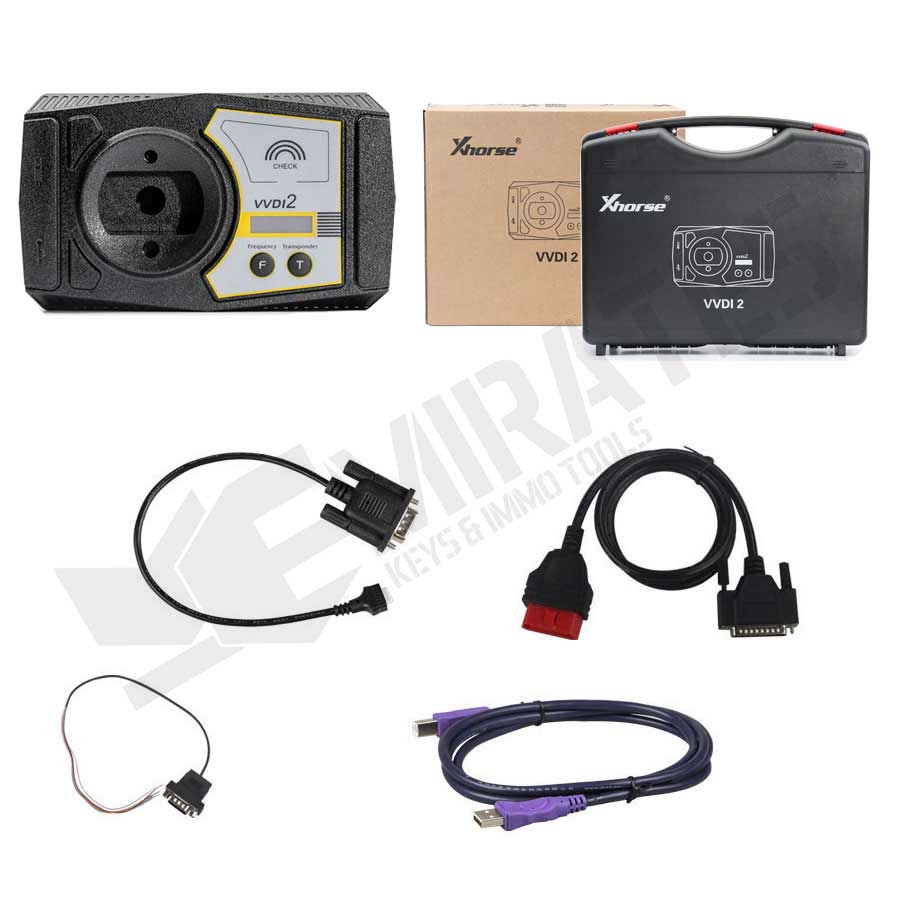

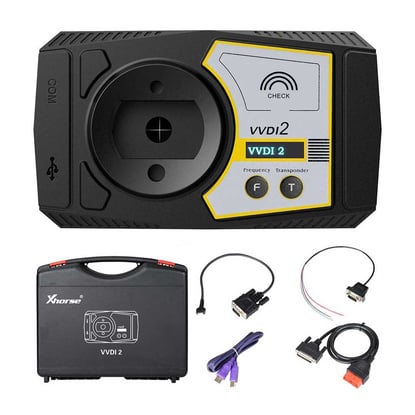

Package Including:

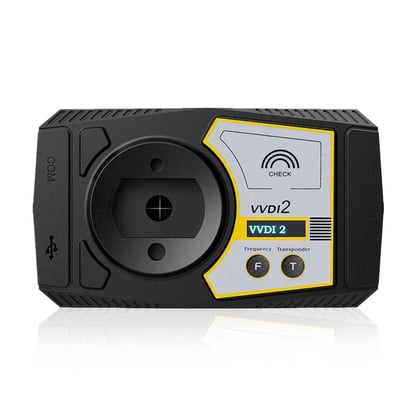

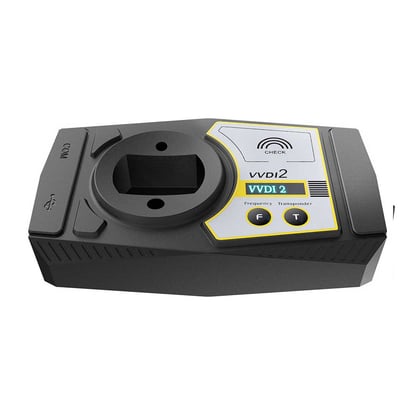

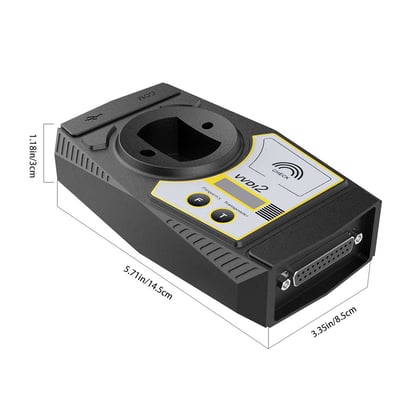

• VVDI 2 Main Interface
• 5th BDM Programmer

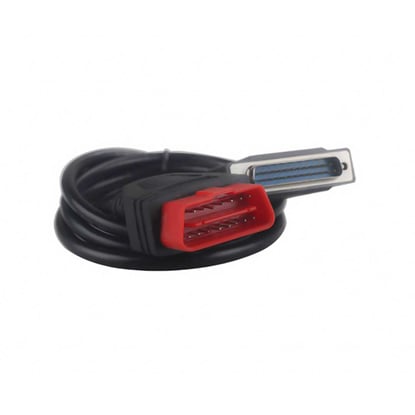

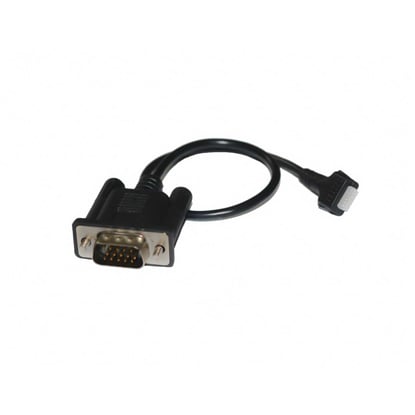

• OBD2 Cable
• Remote Programmer (no need to buy SK184, included)

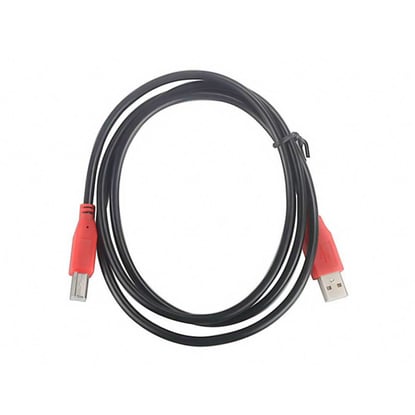

• USB Cable
• Plastic box

--------------

TOP 9 Reasons to urge VVDI Prog

1. Built-in update software: Make VVDIProg firmware update timely.
2. High-speed USB communication interface: Make software automatically connect.
3. Smart operation mode: possible causes of error are going to be listed
4. Reserve ports: For future updates.
5. Self-test function: Check if the machine works well or not.
6. Power supply: Through a USB cable, the software will automatically prompt if the external USB power supply is required
7. Newly Add Bosch ECU Adapter functions, Support Reading ISN from BMW ECU N20 N55 B38 B48 But need to buy VVDI Prog Bosch ECU Adapter.
8. Multi-language: English, French, Italian, Spanish, Arabic, Cezch, Polish, Portuguese, Russian, Turkish, Chinese
9. Get free BMW ISN read function and NEC, MPC, Infineon etc chip continously update service

VVDIProg Using Tips:

• don't click firmware upgrade in VVDI Prog software, its firmware is usually 2.0 version, no got to update. Or it'll get a communication server error.
• Please do wiring 100% an equivalent because the connection diagram in VVDI PROG software. Don't lengthen the connection lines with other parts, or will fail to read.

• Operating system: Win XP, Vista, Win7, Win8/8.1, Win10

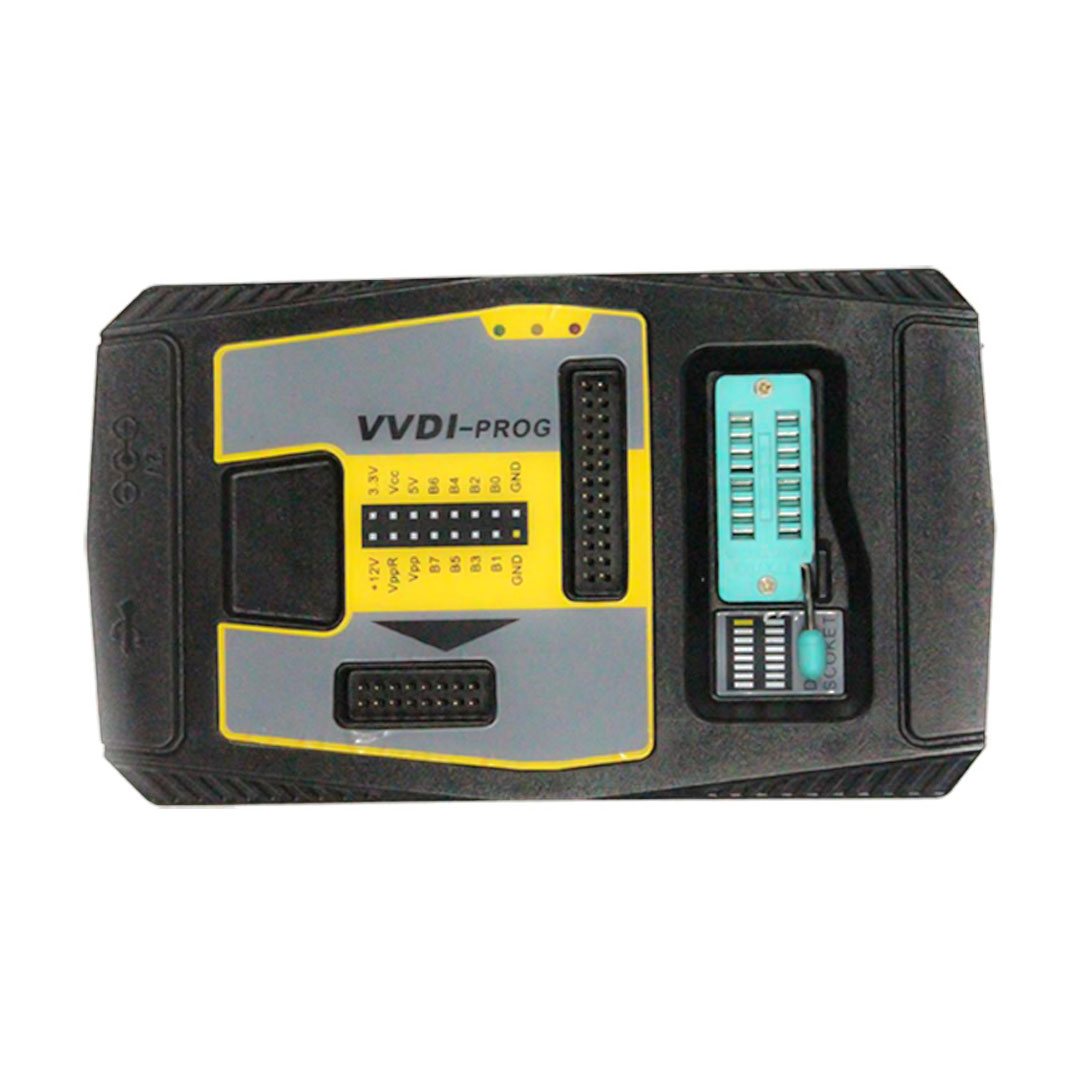

Xhorse VVDI Prog Programmer Function:

• Support R&W lots of chips, include MC9S08 series, MC68HC (9)12series, MC9S12series, V850series, H8Xseries, R8Cseries, PCF79XXseries and most eeprom chips etc.
• Support chip data verify, check blank function
• Support data file compare function
• Free Pin code calculation service by Dump for various models

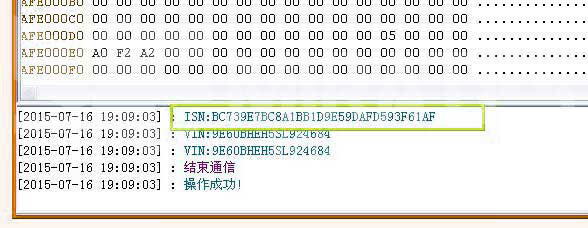

• Support Read and Write BMW N20, N55 ECU (show ISN directly)
• Stable Read and Write MC9S12XE series chips (5M48H/ 1N35H/ 2M53J/ 3M25J etc.)
• Support renew PCF79XX remote, currently support BMW E/F series (Please Note PCF79XX adapter is optional)
• Has the largest database of connection diagram

• Reserve Ports: For future update

VVDI-Prog Update Log:

v5.0.7 (2021-09-24) v5.0.7 (2021-09-24)

* This version Don’t need update

firmware

+ Modify LOCK_BCM2-1 (ADAPTER),

LOCK_BCM2-1(WELD),

LOCK_BCM2-2(ADAPTER),

LOCK_BCM2-2(WELD),

options in

<4-IMMOBILIZER>->

Optimize the process

Xhorse VVDI Prog Cables and Function:

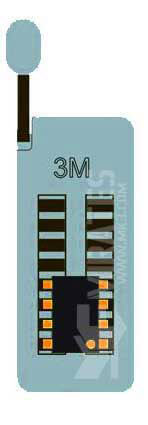

16Pin LockingSocket
Read the common EEPROM, note: please insert the chip by following the below picture.

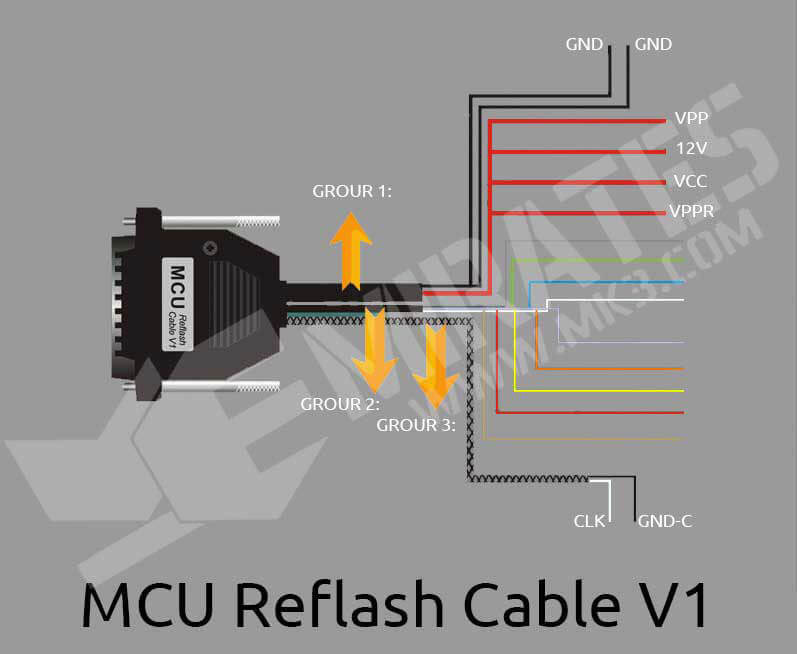

1.3.2 MCU Reflash Cable
wont to program MCU on board

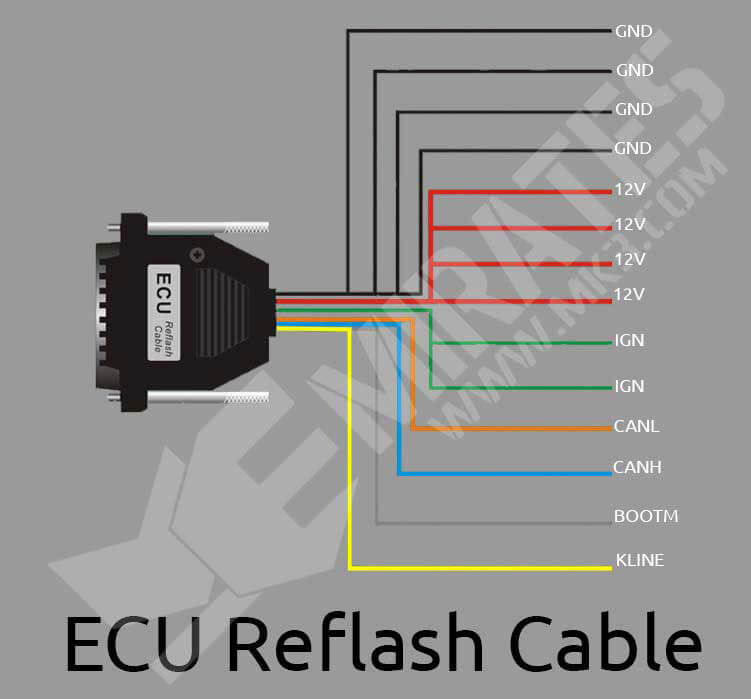

1.3.3 ECU Reflash Cable
wont to program ECU

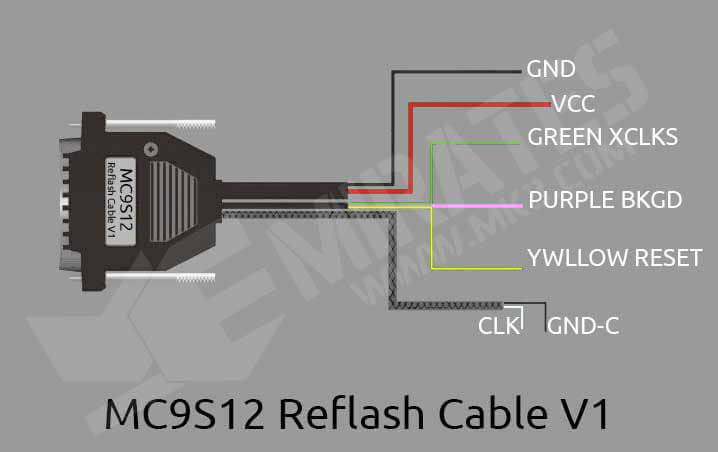

1.3.4 MC9S12 Reflash Cable
wont to program MC9S12 series chip

VVDI-Prog Supported Type List:

Memory:

ATMEL, CATALYST, EXEL, FAIRCHILD, INTEL, MICROCHIP, MITSUBISHI, ST, TOSHIBA, XICOR

MCU:

RENESAS V850, RENESAS H8X, RENESAS R8C, MOTOROLA MC68HC (9)08, MOTOROLA MC68HC (9)12, MOTOROLA MC9S08, MOTOROLA MC9S12, NXP PCF79XX, ST ST10F, INFINEON XC2XXX, ATMEL, ATMEGA XXXX, INFINEON XC164CS, MICROCHIP PIC18F

VVDI PROG Supported Model List:

ECU List:

BMW E Series, BMW F Series, BOMBARDIER, CHANGAN, DELPHI, MAGNETI, MARELLI, RENAULT, OTHER

IMMOBILIZER List:

AUDI, BENZ, BMW, BUCIK, CHEVROLET, STEC, CHRYSLER, FIAT, FORD, GREATWALL, INFINITI, LANDROVER, JAGUAR, NISSAN, OPEL, PORSCHE, RENAULT, SAICMOTOR, VOLKSWAGEN, ZHONGHUA.

DASHBOARD List:

BUICK, CHANGAN, CHERY, CHEVROLET, DONGFENG, FAW, FORD, GEELY, GREATWALL, HAFEI, TOYOTA, HANTENG, HAIMA, HONDA, JAC, JAGUAR, JINBEI, JMC, LUXGEN, NISSAN, SGMW, VOLOVO, ZHONGHUA, ZOTYE

REMOTE List:

BMW E Series, BMW F Series

VVDI Prog Supported Chip List

EEPROM

Note: R means the type is supported, £ means the type will be supported in the future.

MCU

Note: R means the type is supported, £ means the type will be supported in the future.

ECU

Firmware:

Please note: Firmware keeps v2.0. No need to update firmware.

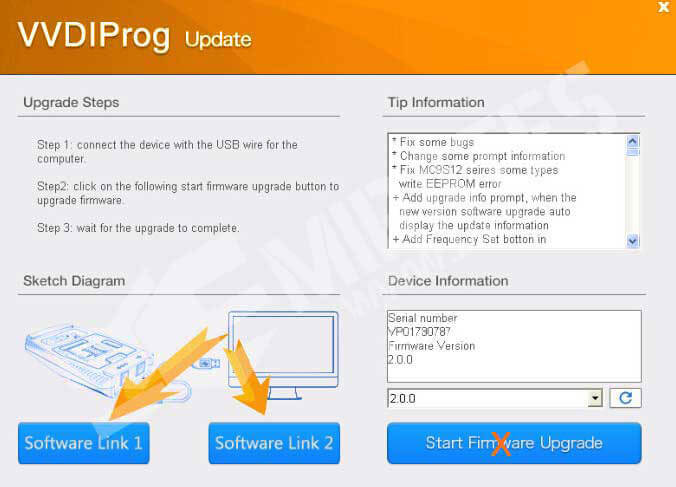

How to Update Xhorse VVDI Prog Software and Firmware?

Please note: Firmware keeps v2.0. No got to update the firmware.

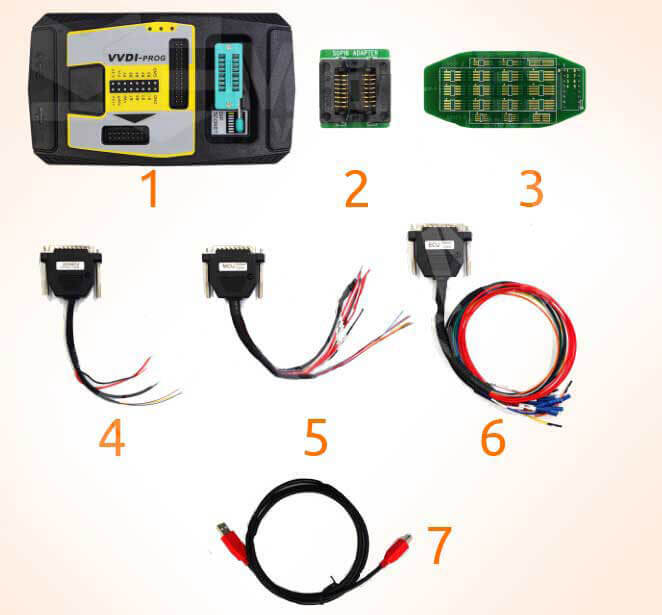

Package List:

• 1pc x Programmer multiplexer
• 1pc x Square USB cable
• 1pc x SOP16 test socket
• 1pc x 16pin converter (Support SOP/SOT/SSOP)
• 1pc x MCU reflash cable
• 1pc x ECU reflash cable
• 1pc x MC9S12 reflash cable (Used to program MC9S12 series chip)

VVDI Prog Optional Adapters:

Benz EIS / EZS Adapter Kit Full Set 10pcs
TB28FXXX Adapter
PCF79XX Adapter
M35080 / D80 Adapter
EWS3 Adapter
EWS4 Adapter
EEPROM Clip Adapter
TMS370 Adapter
Land rover KVM Clip Adapter
MC68HC05X32 Adapter
MC68HC05BX Adapter
PQFP80 Flash Adapter
AM29FxxxB (SOP44)
35160DW Chip
Bosch ECU Adapter
BMW CAS4 Clip Adapter
BMW FEM / BDC 8-PIN Adapter
AUDI J518 Test Line
BMW ISN DME Clone Cable
BMW FRM Footwell Reading Cable

Extra Details:

Related Products

• Xhorse VVDI2 VVDI 2 Key Programming OBD Device Tool Full Software VAG Porsche BMW PSA FREE EXPRESS SHIPPING
• Xhorse VVDI PROG Programmer Tool Device Free Express Shipping
• Xhorse VVDI Mini Key Tool Device With Free Daily Token For a Year
• BMW CAS4 & CAS4+ Test Platform
• BMW FEM BDC F20 F35 X5 X6 I3 Test Platform New Type 2019
