| Product Code: | MK25364 |
| Categories | Key Programming Tools |
| Manufacturer | DiagCar |
In Stock
New Arrival
| Manufacturer | DiagCar |
| Condition | New |
| Weight | 45 g |
Key Programming Tools From DiagCar with Product Number: MK25364
This Weight Product: 45g
Manufacturer: DiagCar
Condition: New

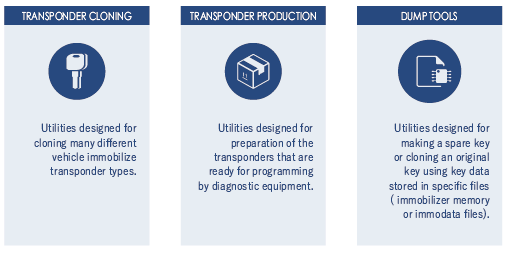

KEY WORKSHOP
KEY PRODUCTION
TRANSPONDERs RW TOOLs
DUMP TOOLs
REMOTE FREQUNCY TESTER

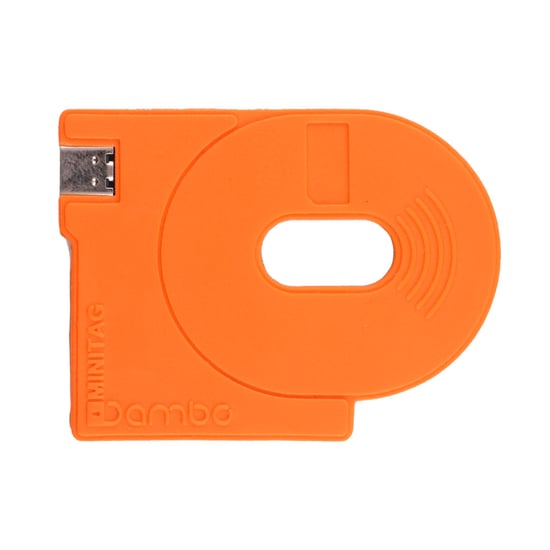

DAMBO KEY TOOL software and MINITAG hardware products support a wide range of specialized aftermarket chips (virtual transponders)
that are suitable for emulating various types of car key transponders.
You can use special transponders to emulate the immobilizer key transponder, which are ready to start the car using specific software functions.
Usually special chips are used for TRANSPONDER CLONING. Transponder cloning in most cases requires less time and does not require the factory transponder and additional equipment. Along with this, you can also use special transponders with any software options that require a factory transponders, such as TRANSPONDER PRODUCTION or DUMP TOOL.
Any software option that require a factory transponder allows the use of a suitable aftermarket virtual chip just as easily as an original one. In this case, you do not need to make any additional choices or prepare the chip in advance. The software will automatically detect and configure a special chip depending on the required function
Most of the special transponders are rewritable, which allows them to be reused as well as used for testing or training purposes.
Virtual chips supported list:
T5
The T5 Transponder is a universal chip for emulating many fixed code transponders.
- Emulate ID11/ID12/ID13/ID33 fixed code transponder chips
- Carbon type
- Rewritable
EH2
The EH2 is a electronic duplicable head with chip and battery. EH2 used to clone 4C/4D/4E Texas Fixed and Texas Crypto transponder keys.
- Emulate Texas Fixed 4C
- Emulate Texas Crypto 4E (ID64)
- Emulate Texas Crypto 4D (ID60 61 62 63 65 66 67 68 69 70)
- PCB-based type - Battery powered.
- Rewritable
TPX02
The TPX02 is a special cloning chip used to clone 4D/4E Texas Crypto transponder keys.
- Emulate Texas Crypto 4E (ID64)
- Emulate Texas Crypto 4D (ID60 61 62 63 65 66 67 68 69 70)
- Glass type
- Rewritable
Most cloning tools can use TPX2 only once and can’t reuse it after locking. Dambo Key Tool can reuse it many times.
LKP-02
The LKP-02 is a special cloning chip used to clone 4C/4D/4E Texas Fixed and Texas Crypto transponder keys.
- Emulate Texas Fixed 4C
- Emulate Texas Crypto 4E (ID64)
- Emulate Texas Crypto 4D (ID60 61 62 63 65 66 67 68 69 70)
- Carbon type
- Rewritable
LKP-04
The LKP-04 is a special cloning chip used to clone Texas Crypto-3 (DST-AES) transponder keys.
- Emulate Texas Crypto-3 DST-AES (ID8A)
- Carbon type
- Rewritable
VVDI XT27A
The VVDI XT27A is a virtual transponder chip that has the ability to be converted into a wide variety of automotive transponder chips.
- Emulate Transponders:
Fixed code ( 11 12 13 )
Tiris 4C
Texas Dst 4D (ID60 61 62 63 65 66 67 68 69 70 72G 82G 83)
Texas Dst 4E (ID64) Texas Dst AES (ID8A)
Megamose 8C
Megamose 48
Philips PCF7935 ( ID33 40 41 42 43 44)
Hitag-2 PCF7936 (ID46)
Hitag-3 PCF7938 (ID47)
Hitag-Pro PCF7939P (ID49)
Hitag-AES PCF7939M (ID4A)
- Carbon type
- Rewritable
CN1
CN2
The CN1 , CN2 and YS-01 is a special cloning chips used to clone 4C chips (for CN1) and 4D chips (for CN2).
- Emulate Texas Fixed 4C
- Emulate Texas Crypto 4D (ID60 61 62 63 65 66 67 68 69 70)
- Carbon type
- Rewritable
The software can switch the type of transponder from CN1 to CN2 and back depending on the required type, so you can equally use any of these chips.
CN3
The CN3 is a special cloning chip used to clone Hitag-2 transponders.
- Emulate ID46
- Carbon type
- Rewritable
CN5
CN64
The CN5 and CN64 is a special cloning chips used to clone 4E chips (for CN64) and 4D/4D-80bit chips (for CN5).
- Emulate Texas Crypto 4E (ID64)
- Emulate Texas Crypto 4D (ID60 61 62 63 65 66 67 68 69 70)
- Emulate Texas Crypto 4D-80bit (ID70 72G 83)
- Carbon type
- Rewritable
The software can switch the type of transponder from CN5 to CN64 and back depending on the required type, so you can equally use any of these chips.
CN6
The CN6 is a special cloning chip used to clone Megamos Crypto transponders.
- Emulate Megamos Crypto (ID48)
- Glass type
- Rewritable
ID46AS
The ID46AS is a special cloning chip used to clone Hitag-2 transponders.
- Emulate ID46
- Carbon type
- Rewritable
Key Tool is the advanced tool for copying a wide range of transponders used on variety of vehicles keys, such as:
Temic® / Megamos® fixed code
- variety of vehicles keys with ID11, ID12, ID13 transponder chips.
Texas® fixed code 4C
- variety of vehicles keys with ID4С transponder chips.
Megamos® Crypto 8C
- Ford/Mazda ID8С transponder keys.
Texas® Crypto 4D/4E
- variety of vehicles keys with ID60, ID64 transponder chips.
- Mitsubishi ID61, ID62 transponder keys.
- Ford/Mazda ID63 transponder keys.
- Suzuki ID65, ID66 transponder keys.
- Toyota/Lexus ID67, ID68, ID70, ID70E transponder keys.
- Suzuki/Yamaha/Kawasaki cycles ID62, ID69 transponder keys.
Texas® Crypto-2 4D-80bit
- Ford ID83 (ID6F-63) transponder keys.
- Kia/Hyundai ID6E(ID70) transponder keys.
- Toyota/Lexus G-chip (ID6E, ID72G, ID67G) transponder keys
Texas® Crypto-3 AES-128bit
- Toyota/Lexus H-chip (ID8A) transponder keys.
NXP® Crypto Hitag-2
- variety of vehicles keys with ID46 transponder chips.
Most of vehicles transponders, including encryption transponders like Texas® Crypto-2 80 bit and Texas® Crypto-3 128 bit support quick copy which allows the user to clone keys quickly and easily. It's a simple step-by-step process that requires minimum user operations
To produce a key copy, you must use special chip to emulate the immobilizer key transponder. Key Tool software support a wide range of specialized aftermarket chips (virtual transponders) that are suitable for emulating various types of car key transponders.
Despite of the large variety of supported cloneable transponders, the user does not need to worry about choosing the correct chip.
The software will automatically detect and configure a special chip depending on the customer's key type.

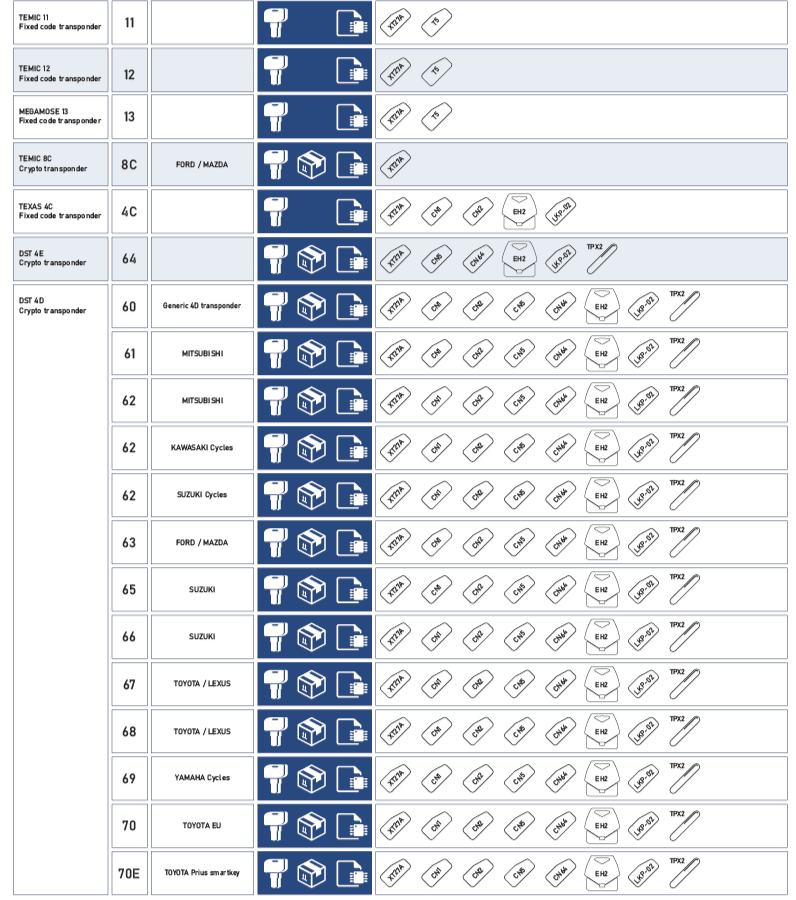

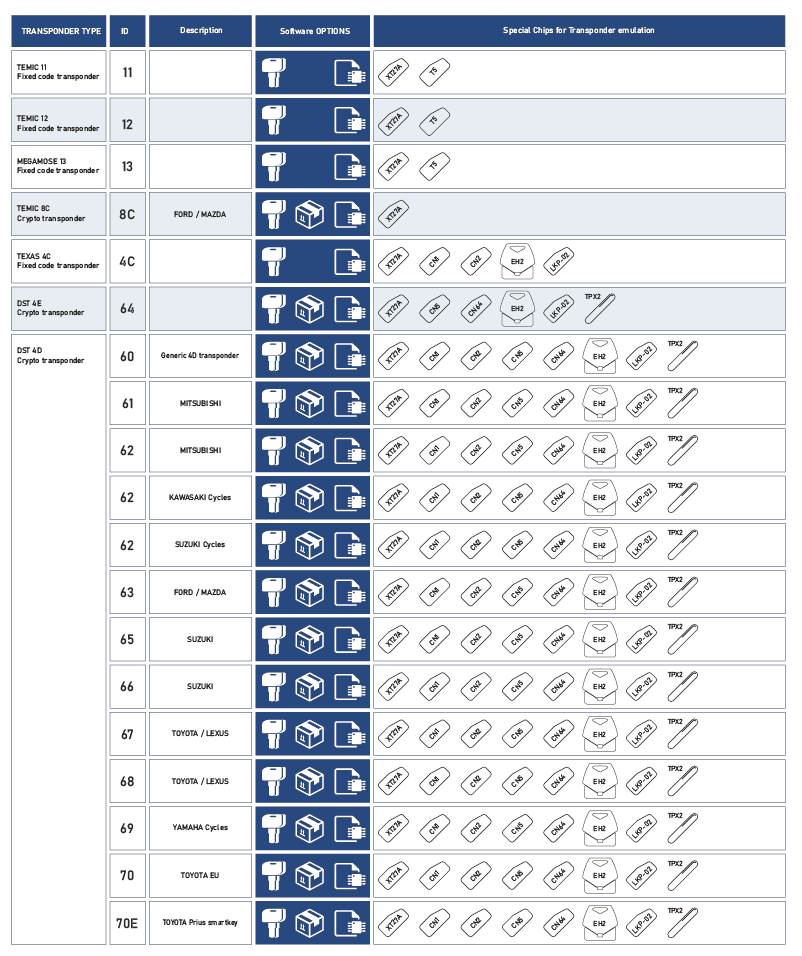

See the "Special Chips for Transponder emulation Support Guide" for a full list of supported cloning transponders.

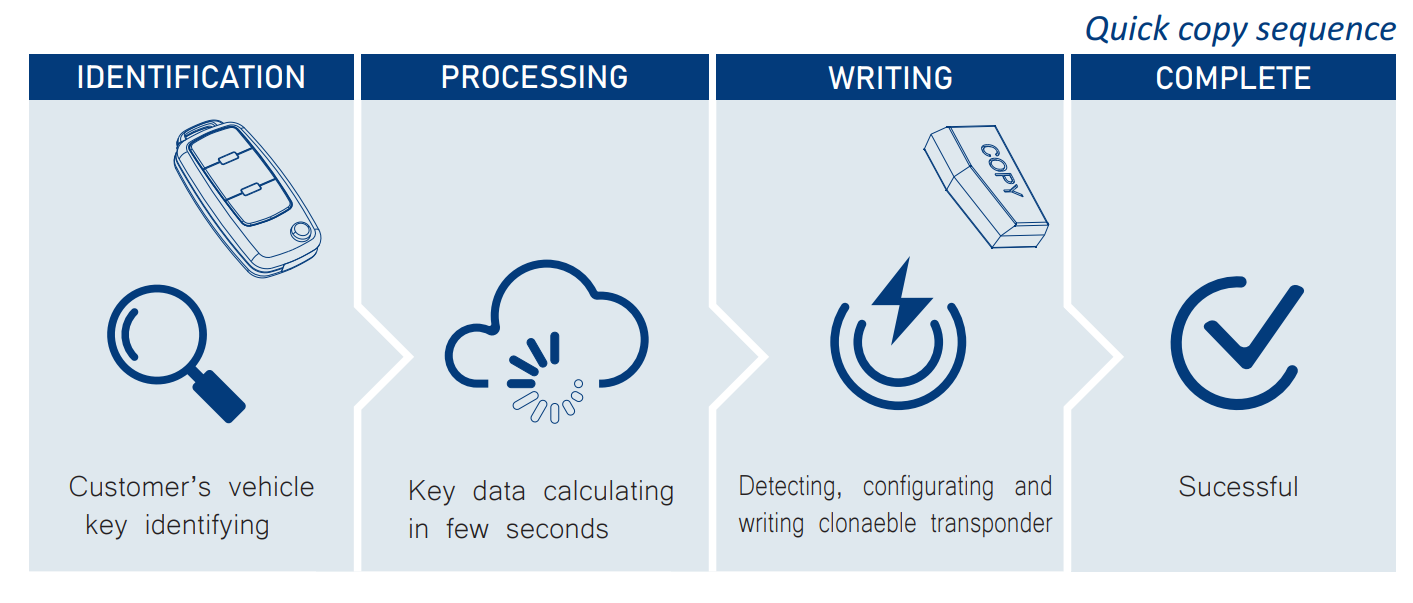

The quick copy function allows to clone transponders without the need to connect with the vehicle, making the process easier and more streamlined. The entire process requires on average less than five minutes. You can use the quick copy function after the original key identification. Put the original key to the device and perform the Workshop->Identification in the application. After the transponder identification, a report will be displayed on the application screen. If the transponder allows copying, the appropriate link will be available in the list of tools. To proceed the cloning you must follow the appropriate link. After that a copying tool will be open with a proposal to bring an acceptable clonable chip. Put the clonable transponder to the device and complete the copy operation.

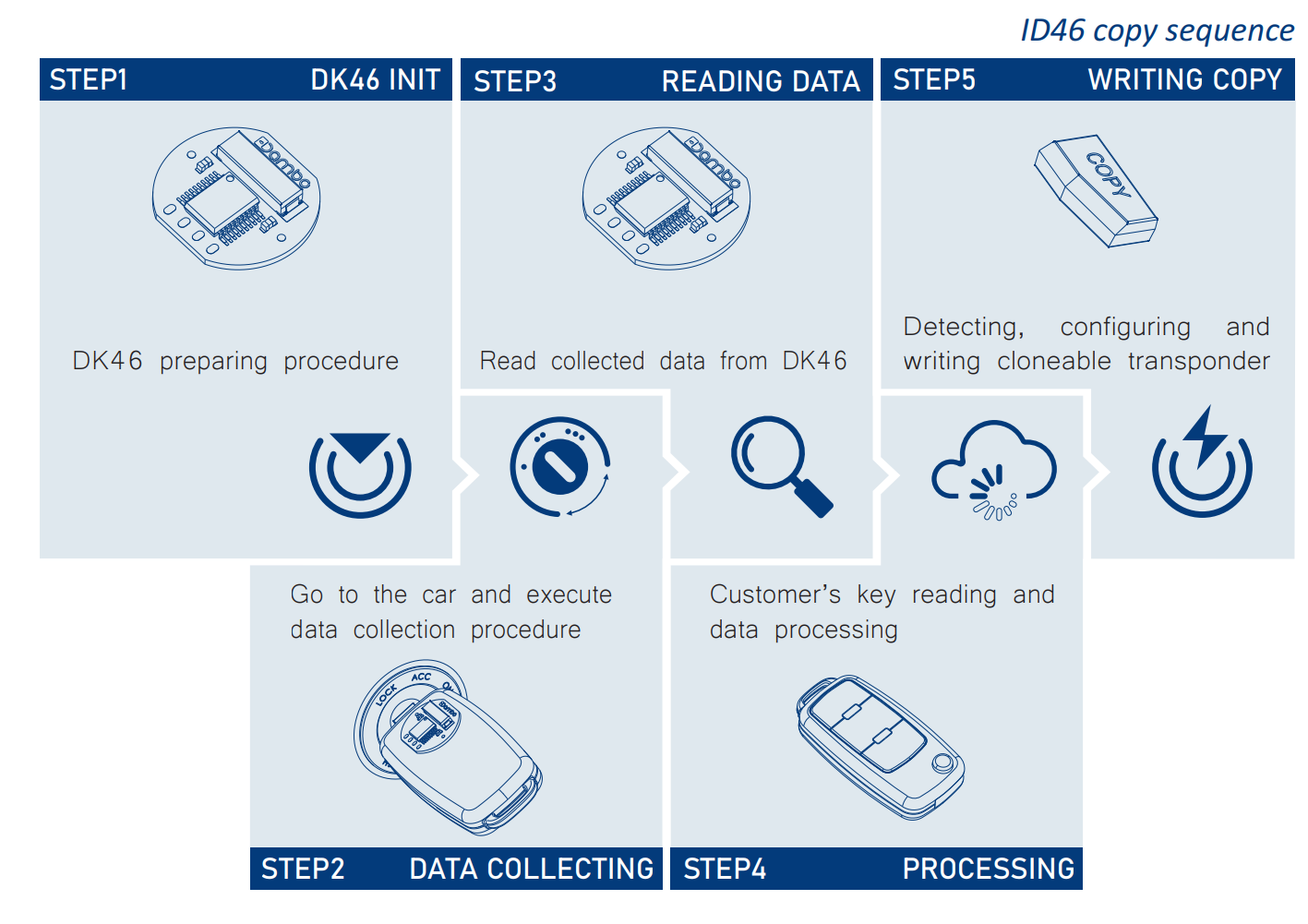

For copying ID46, it is required to perform the vehicle key data collection at the moment the ignition is turned on. For this operation, you must use the original key and a special device - DK46

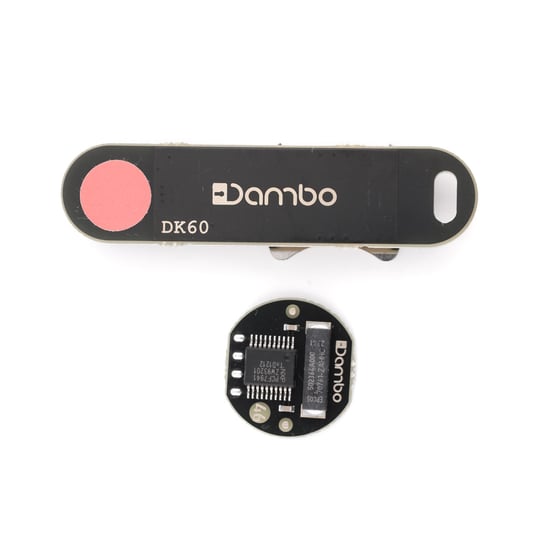

DK46 is a special wireless small-size device that allows you to sniff the data of the immobilizer coil at the time of data exchange with the key. DK46 does not require power and saves data until the next use.
Cloning ID46 with the Key Tool application It's a simple step-by-step process that requires minimum user operations.

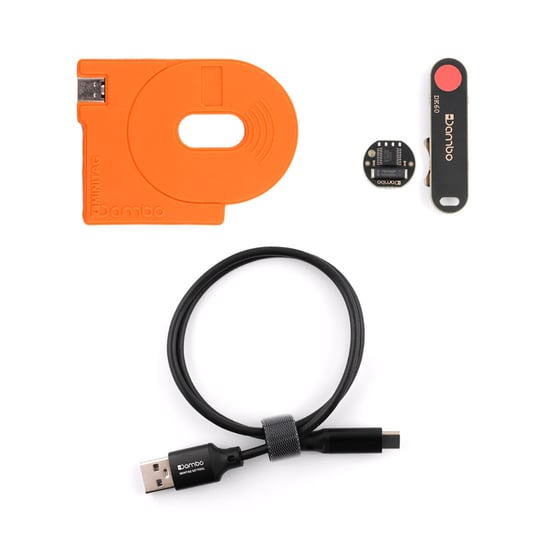

- DAMBO KEY TOOL device
- DK46 device
- DK60-AA device

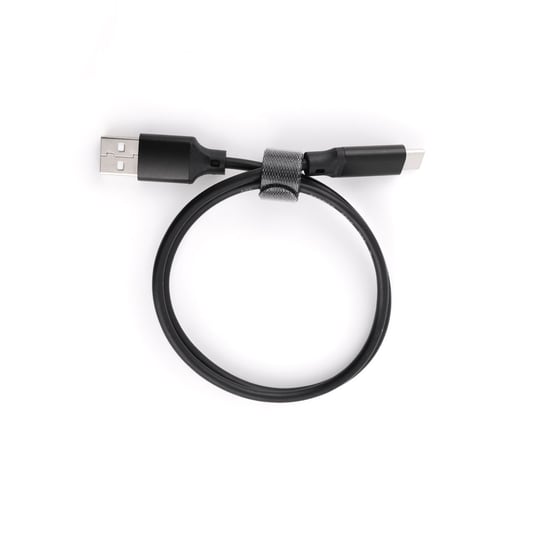

- USB connection cable
- 365 days license
