| Product Code: | MKON474 |
| Categories | Key Programming Tools, Key Cutting Machines |
| Manufacturer | Xhorse |
In Stock
Offer %
New Arrival
| Manufacturer | Xhorse |
| Condition | New |
| Weight | 25000 g |
Key Programming Tools Key Cutting Machines From Xhorse with Product Number: MKON474
This Weight Product: 25000g

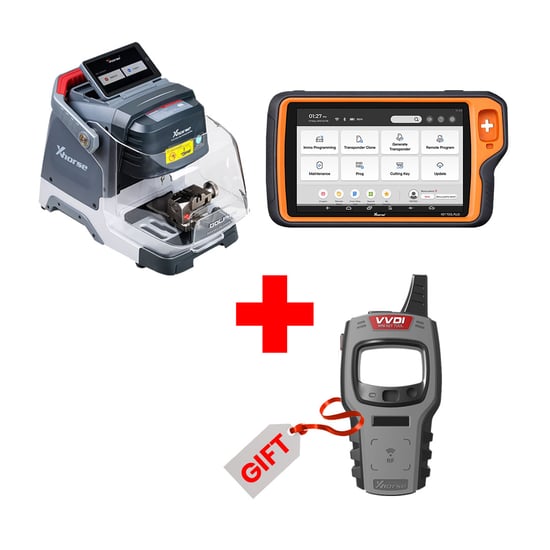

Bundle included:
1 PC Xhorse Dolphin II XP-005L Key Cutting Machine with Adjustable Screen

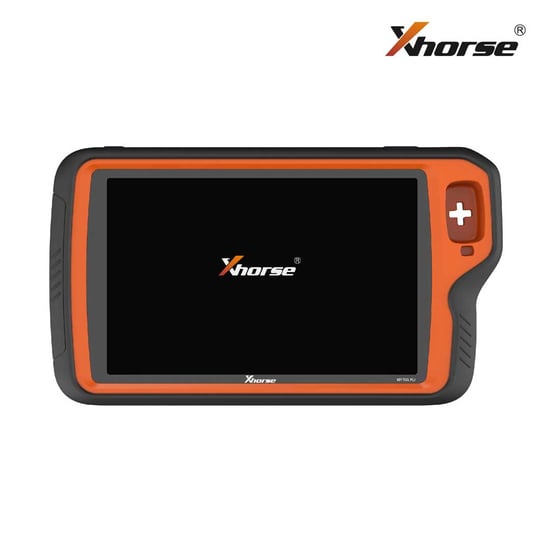

1 PC Xhorse VVDI Key Tool Plus Pad Device

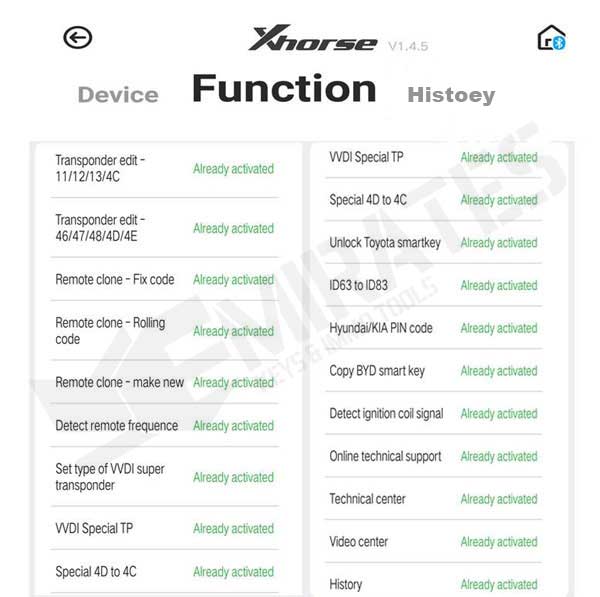

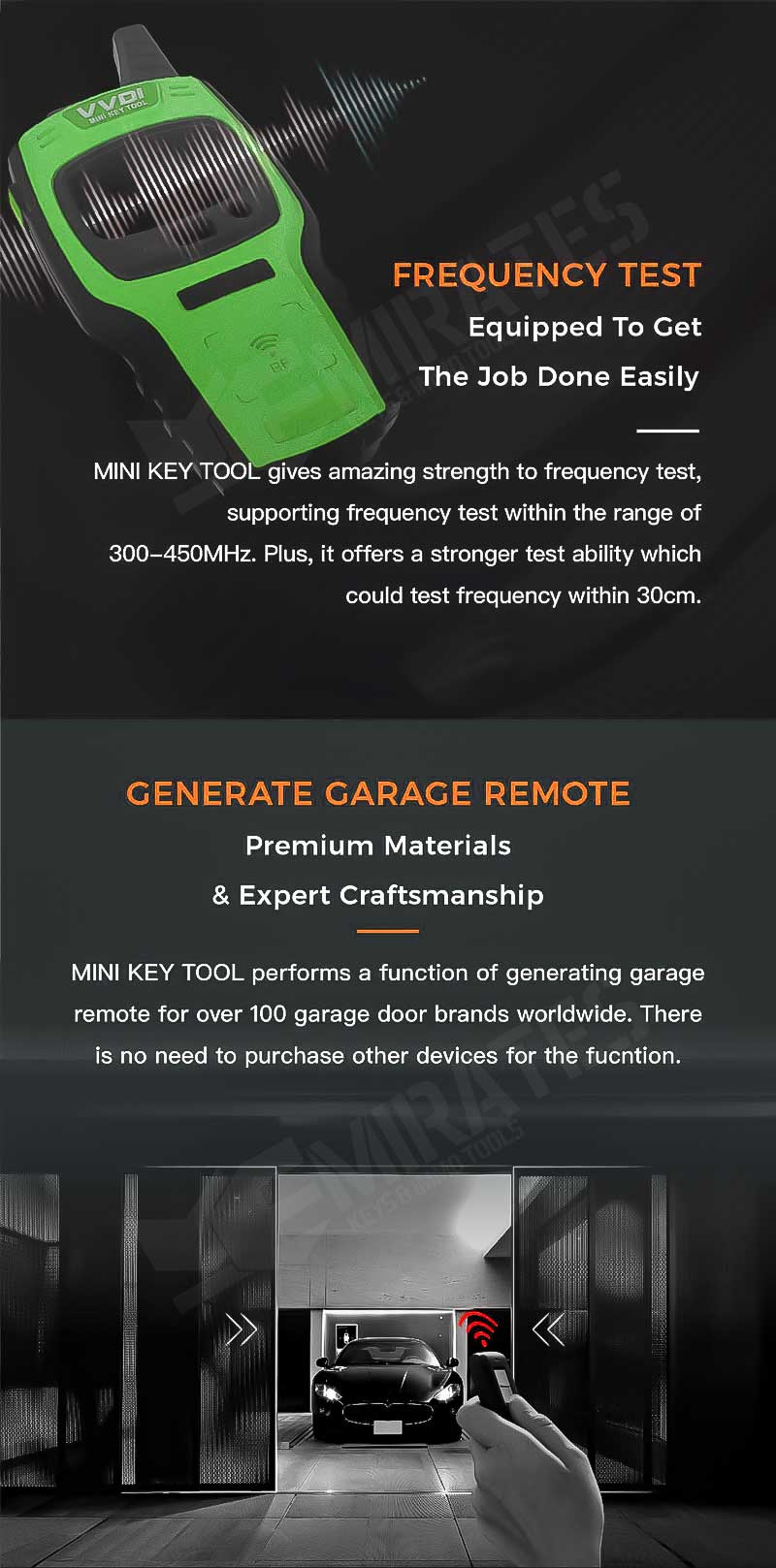

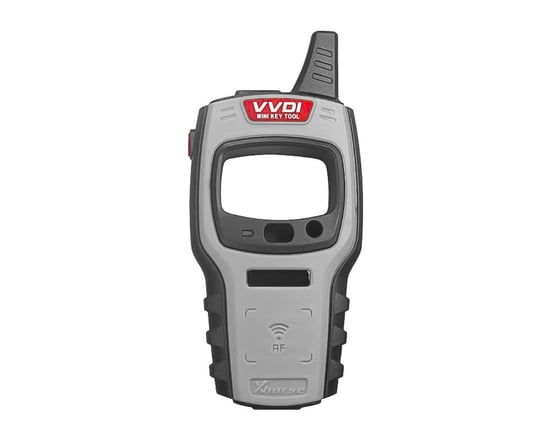

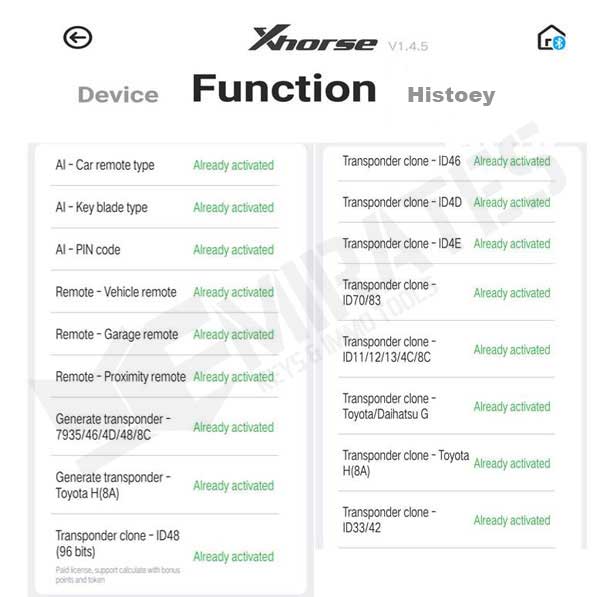

1 PC Free Xhorse VVDI Mini Key Tool Device
Global Advanced Version
Combines Functions Of VVDI 2, VVDI Mb, Key Tool Max, VVDI Bim, VVDI Prog, Obd Helper And Available To Regulate Xhorse Key Cutting Machines.
Bind With Xhorse Key Cutting Machines To Urge A Free Mb Bga Token A Day. Id48 And Skim Mb Key Password Online Will Need A Token, But Both Can Read Xhorse Bonus Points.
Multi-language: English (More Language Are Going To Be Developed Within The Feature)
Free Update Online
1-year Warranty
New Update: Add Remote Online-cloud Recognition Function (Feb. 2021)
Xhorse Key Tool Plus User Manual
Keytool Plus Has It All: A Computer, A Mobile, A Tablet, An Immo Programmer, A Foreign Maker, A Transponder Generator, A Programmer, A Frequency Tester
Cpu: 8-core 2ghz
Ram+rom: 4g+128g
Operation System: Android 9.0
Screen Size: 10.1" Hd Anti-glare; Anti-fingerprint. Super 10.1" Anti-glare Display Enables Top Operation Experience.
Rear Hd Camera: 13.0mp. The 13mp Rear Camera Is Meant To Suit Multiple Scenarios Perfectly.
Battery Capacity: 10000mah. Long Battery Life And Pd3.0 Fast Charge Help Keep You Productive Throughout Your Day.
Charging: 30w Super Fast Charge
Bluetooth: 5.0 Bluetooth
Wifi: 2.4g/5g
4xcortex-a53 Up To 2.3ghz
4xcortex-a53 Up To 1.8ghz
Memory 4g+ Storage 128g
Resolution Up To Fhd+ (2,400*1,080)
Supports Basic Functions Of A Key Tool, Like Remote Generating, Cloning, Transponder Detection, And Immo Programming For Vw & Audi, Bmw, And Mercedes Benz.
Transponder Detection
Transponder Cloning
Transponder Generation
Remote Cloning
Remote Generating
Frequency Detection
Remote Renew
Ic/id Clone
Vehicle Error Light Reset
Key Cutting Machine Control
Built-in Obd Matrix Switch
Radiofrequency Simulator
Integrated Key Identification Coil
Mercedes Benz Infrared Read-head
Smart Key Simulator
Long-distance Immo Collection
Chip Pin Detection
More Functions To Be Added In Future Updates
Note:
1). Bosch Ecu Adapter Can't Be Used With Key Tool Plus. It's For VVDI prog And VVDI Bimtool.
2). VVDI Mb Power Adapter Fast Cable Can't Be Used With The Pad. The Pad Uses A Benz Power Adapter In Its Package To Fast Calculate The Pass.
3). Benz Eiz/ezs Adapter Kits Are Often Used With The Key Tool Plus. But Require Db9 Optional Adapter (Not Release Yet) Or Modification.
4). VVDI Toyota 8a Adapter And VVDI Remote Renew Adapters Are Often Used With VVDI Pad.
| Striking Innovation | |
| Ren 4a Smart Card/4a Flip Key (Kadjar, Koleos, Etc) | Obd Add Key, All Keys Lost, Prepare Dealer Key Vehicle With 4a Chips; No Need For Reading Backup Flash; No Risk Of The Car Dead |
| Mercedes Benz Fbs3 | Fbs3 Add Key/all Keys Lost, Fast Password Calculation With A High Success Rate, Time-saving (Use Benz Non-removal Adapter) |
| Bmw | Obd Add Key/all Keys Lost Cas1 Cas2 Cas3+ Cas4 Cas4+ Fem Bdc (Service Mode) |
| Vag | Immo2 Immo3 Immo3.5 Immo4 Immo5 Mqb Add Key, All Keys Lost |
| Vag Online | Immo4 Add Key And Akl, A6 Q7(J518) All Keys Lost, Mqb Add Key And Akl, 5c Add Key, Fast Inexpensive, No Risk Of The Car Dead With VVDI Remote |
| Toyota 8a Mechanical Key | Obd Add Key And Every One Key Lost (No Got To Remove Immo Box For Akl. Require 8a Akl Adapter |
| Mitsubishi | Obd Add Key, All Keys Lost, Prepare Dealer Key Outlander, Asx, Eclipse Cross, Etc) |
| Porsche | Generate Dealer Key For Brand Spanking New Porsche (-2018), Obd Immo Programming (Key Tool Plus Read Dump And Generate Key, Obd Immo Programming) |
| Peugeot Citroen Ds | Obd Read Pin, Add Key And Every One Key Lost |
| Ford (-2018) | Smart Key Programming Without Pin Code For-2018 Models/key Programming |
| Ford 2019 | Key Programming Without Reading Pflash Backups For 2019 Up Focus, Escort (Safe, No Risk.) |
| Jeep Chrysler Dodge | 2018 Up Reading Pin Code And Key Programming Key Via Obd |
| Fiat Viaggio Palio | Obd Add Key, Akl And Prepare Dealer Key |
| Buick Chevrolet Cadillac | Obd Read Pin Code (Id46 Transponder), Online Get Pin Code For A Few Cars With 4d/47 Transponders |
| Hyundai Kia | Obd Read Pin Code For Cars With 46, 47, 8a Transponders And Program Key |
| Honda 2019 Up Akl | Obd All Keys Lost For 10th Generation Accord, Envix, Fit, Inspire |
| Volvo (-2016) | Obd Read Isn By Obdii (Remote Key), Require Cem Eeprom Dump (Remote Key), Require Cem, Kvm Eeprom Dump (Smart Key) |
| Chinese Cars | Support Key Programming For Common Chinese Cars And Pin Code Calculation Or Obd Read Pin Code For A Few Models |
We Make It Fit More Luxury Car Brands Support Immo Programming On Luxury Car Brands - Benz, Bmw, Audi, Vw.
Key Tool Plus Provides Users With Functions Including Key Programming, Key Learning, Ecu Coding/ Adaption/ Replacing, Diagnostic Function, Etc.
To Best Resolve Most Problems They Met In Immo Programming For Volkswagen And Audi Cars.
Vw & Audi:
3rd / 4th / 5th Generation
Mqb
Med17/edc17
Key Tool Plus Can Do Bmw Cas1 Cas2 Cas3 Cas3+ Cas4 Cas4+ Obd Key Learning, Fem/bdc Key Programming, File Make Key, Ecu Isn Reading, Ecu And Cas Synchronization, Etc. Getting Work Done Has Never Been Easier.
Bmw Immo Programming
Cas3/cas3+
Cas4/cas4+
Fem/bdc
Ecu Isn Reading Function
Key Tool Plus Offers Users All-rounded And Professional Security Solutions For Mercedes-benz.
The Device Helps With Fbs3 Keyless-go Smart Key Programming, All Key Lost, Adding Keys, Enabling & Disabling Keys, And eis/ezs，elv, Ecu, Gearbox, Ism Replacing.
Benz Immo Prorgamming
Fbs3 Standard Keys And Fbs3 Keyless-go Keys
Smart Keys, All Keys Lost, Add Keys, Enable & Disable Keys
Eis/ezs, Elv, Ecu, Gearbox, And Ism Replacement
Other Car Models Supported
For Toyota
For Honda
For Mazda
For Ford
For Cadillac
For Landrover
For Peugeot
For Kia
For Buick
For Chevrolet
For Volvo
For Mitsubishi
For Nissan
For Suzuki
Key Tool Plus Supports Over 20,000 Car Models Worldwide. We Will Select The Car Brands And Car Models On The Immo Programming Interface.
On This Smart Platform, We Will Easily Find The Car Models We'd Like By Brand Area, Name, And A-z Word Search.
The Foremost Comprehensive Database Of Vehicles Ever.

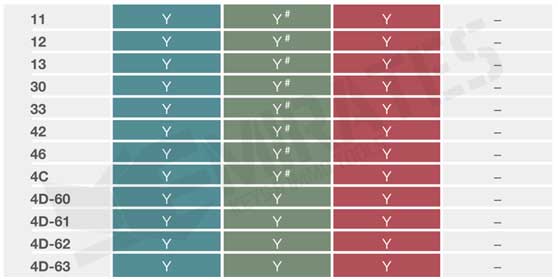

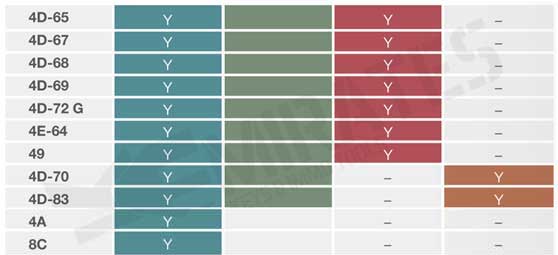

Transponders
Id46 Online Calculation
Id48 (96 Bit) Online Calculation
Toyota H(8a) Online Calculation
Transponder Generation And Cloning Of Over 850 Car Models
Special Transponders And Special Cars And Old Car Models
Remotes
Support Remote Generation, Smart Key Generation, Frequency Detection, Remote Clone For A Spread Of Car Models
Hcs/fix Code Clone, Non-hcs Rolling Code Clone, Fix Code Editing
Pt22xx, Lx918, Ht6p20, Vd5026, Ax5326, Ht12x Fix Code Editing
Combined
Its Design Concept Is To Unite The Functions Of Your Various Devices And Offers The Advantage Of Ultra-convenience At Hand.
Prog Function:
Key Tool Plus Is Meant With Prog Function, Which May Work As A Solder-free Programmer, Directly Reading And Writing Common Modules And Chips For Lots Of Car Models. Xhorse Is That The First To Supply This Integrated Solution.
Key Tool Plus Supports Reading And Writing Common Modules And Chips. It Covers "Eeprom And Flash", "Immo", "Instrument", "Airbag", And "Ecu", Etc.
Supported Eeprom And Flash
Atmel
Mitsubishi
Winbond
Catalyst
St
Xicor
Microchip
Seiko
Xhorse
Mxic
Toshiba
Support Modules
Bmw: Cas3/cas3+/cas4/cas4+/fem/frm/bdc
Benz: Eis/eiz
Landrover: Rfa
Porsche: Bcm
Volvo: Cem/kvm
Bmw/audi/vw: Ecu And More
Honda/hyundai/kia: Mb91f Dashboard
(Note: To Finish Certain Functions, Users Got To Connect Key Tool Plus To The Precise Adapters And Obtain The Specified Model Prompt On The Interface. The Function Is Merely Effective On The Advanced Edition.)
What We Will Complete By Prog Function On Key Tool Plus?
Support Eeprom Reading And Writing: Support Reading & Writing Most Sorts Of Transponders Within The Market.
Support Bmw Immo Module Programming Covering Cas3, Cas3+, Cas4, Cas4+, Bdc, Frm, And Fem.
Support Land Rover Rfa Module Reading And Immo Programming.
Support Porsche Bcm Programming.
Support Read Ecu With Can On Audi, Bmw, And Volkswagen.
Support Instrument Programming On Honda, Kia, And Hyundai.
Immo Data Tool (File Make Key)
Supports Jaguar - Land Rover - Porsche - Volvo - Mitsubishi - Et Al. Some Cars, Key Programming, And Other Settings Cannot Be Finished Via Obdii.
Key Tool Plus Gives Amazing Strength To Unravel The Dilemma By Delivering The File Make Key Function Which May Be Wont To Add Keys For Them.
This Very Function Features Generating Transponder Via Reading-related Transponder Data Of The Car Immo Module Directly.
[ File Make Key, To Get A Car Key Via A Knowledge File. Users Got To Use The Precise Device To Read The Immo Data And Generate A Boot Transponder To Directly Start The Car, No Got To Match The First Car.
(Users May Have To Rewrite The Info To The Immo Box When Doing The Programming Process On Some Car Models.) ]
Xhorse Pad Supports File Make Key Function For Common Car Models And Motorcycles. We Will Easily Find The Car Models We'd Like By Brand Area, Name, And A-z Word Search.
We "Liberate" Your Application Interface
Maintenance Function
Meet Your Work Demands In Every Way. Key Tool Plus Supports Maintenance Light Reset, Electric Hand Brake, Tpms, Battery Matching, Throttle Program, Injector Programming, Steering Angle Programming, Bitting Decode, Gearbox Programming, Headlight Programming, Etc.
More Maintenance Functions Are Going To Be Released Soon.
control Key Cutting Machines Developed By Xhorse
key Tool Plus Is Out There To Regulate The Key Cutting Machines(Condor, Dolphin, And Panda), To Perfectly Work As An Operation Screen. By Using Key Tool Plus, Completely Free Your Mobile Phones.
Cloud Diagnosis Mode-c:
After The Key Tool Plus Start The C Mode Of Cloud Diagnosis, It'll Generate The Local C-terminal Id And Send The C-terminal Id To The Customer Who Provides Remote Service. Customers Use A Cloud Diagnosis B-terminal Xhorse Device, After Inputting C Id And Hook Up With The Plus Pad For Remote Diagnosis, Programming, Coding, Matching, Maintenance, And Other Functions.
Other Special Functions:
Remote Renew, Set Sort Of VVDI Super Chip, VVDI Special Tp, Unlock Toyota Smart Key, Detect Remote, VVDI Remote Repair Calibration, VVDI Smart Key Clone, VVDI Smart Key Customization, Remote Charge Battery, Honda Cycle Key Renew, 8e Remote Upgrade/unlock, Xm Smart Key Customization, Toyota Smart Key Frequency Setting
More Functions Coming Soon
Eg. Obd Diagnosis And Mqb49 Immo Programming Have Just Been Released On Key Tool Plus And It’s Projected To Support Doip, Can-fd, Toyota 8a Smartkey Within The Near Future.
Name Of Ports
Light Sensor: Detect The Brightness Within The Surrounding Environment
Detection Coil (Including 125k Low, 13.56m Medium, 300-900m High Frequency)
Support Reading, Writing, And Cloning Common Immo Transponders
Support Reading Common Id Transponders
Support Reading Common Ic Transponders
Support Frequency Detection Of Common Vehicle Remotes
Immo Transponder Placement Hole For Vehicle Immo Transponders
Usb Charging Port: Support Standard Fast Charge Adapter And Standard Type-c Port Dc-5v Input.
Ps2 Port For Remote Programming

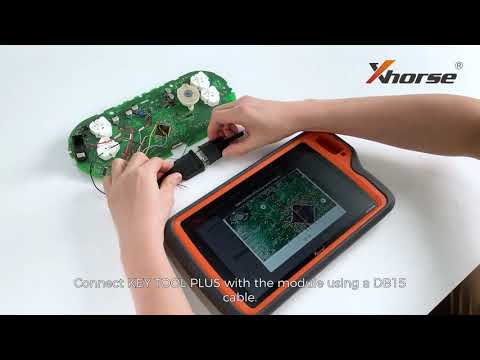

Db15 Port: Support Standard & Optional Programming Adapters With Db15 Port
Db25 Port For Obd Matching
Benz Infrared (Ir) Port: Support Ir Read Benz Fbs3 & Fbs4 Smart Key And Support Benz Ir Reader

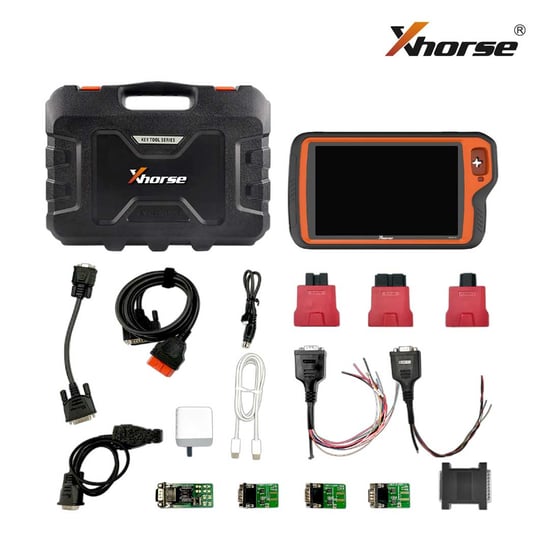

Key Tool Plus
User Manual
Certification And Warranty Card
Charger
Usb3.0 Type-c Cable
Obd_db25 Cable
Obd_kla_10 Connector
Obd_kia_20 Connector
0bd Honda 3 Connector
Remote_ps2 Programming Cable
Transponder Box
Prog_dbi5_15 Cable
Prog Eeprom Adapter
Benz Ir Adapter
Benz Nec1 Adapter
Benz Nec2 Adapter
Benz Nec3 Adapter
Benz Power Adapter
9s12xe Cable
Mcu Cable
Key Cutting Machines From Xhorse with Product Number: MK8483
This Weight Product: 18000g
Manufacturer: Xhorse
Condition: New

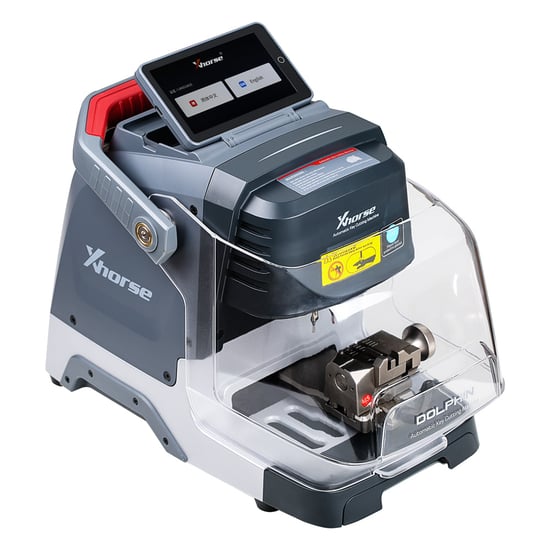

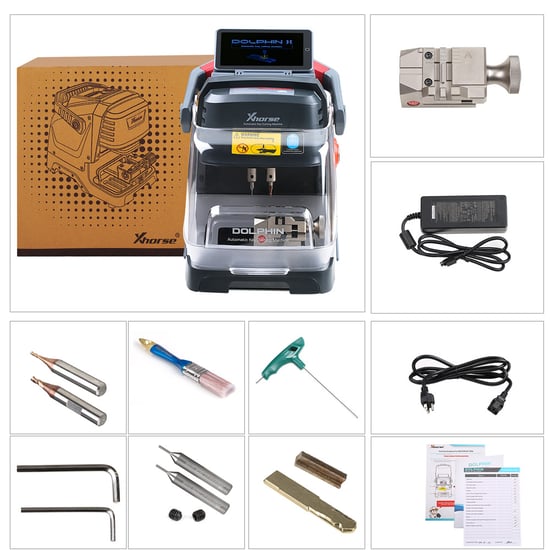

Dolphin XP-005L is new released by Xhorse, Dolphin II key cutting machine, update of XP-005, smarter and safter. Xhorse Dolphin XP-005L is Featuring HD touchscreen with self-developed system, a protection shield providing a cleaner and safer working environment and 3 intelligent indicator light, DOLPHIN XP-005L comes with the best virtues you could ever want.
Dolphin XP-005L is a portable automatic key cutting machine with a small volume and light weight. It is an ideal product for locksmiths worldwide. Xhorse Dolphin XP-005L is a perfect tool for making keys when all your keys are lost. It can duplicate bitting and cut car keys or even some household door keys.
Xhorse Dolphin XP-005L Highlights:
1.New Angle Adjustable 5-lnch HD Touch Screen,Transparent Protective Shield
2.Innovative Colorful Indicator Lights,Built-in Lithium Battery
3.Support Both WiFi and Bluetooth,Smart APP Control,Free Online Update
4.Support Multi-Purpose Clamps,Buit-in Massive Vehicle Database
5.More Portable,Only 13KG,Easy to carry
6.Multi-Functions:Optical key bitting recognition,ALL key lost,key duplication,cut by bitting,find bitting
7.Lifetime Free Update Online: Supporting Online Update via Xhorse APP
8.Dolphin XP-005 L Device Language: English Only
Xhorse APP Language: English,German,Spanish,French,Thai,Polish,Italian,Portuguese,Hindi,Hebrew,Korean,Indonesian,Chinese
9.Bind with VVDI MB Tool or VVDI Key Tool Plus, you will get 1 Free MB Token Everyday
Key Features of Dolphin XP-005L:
1. All Key Lost
2. Key Duplication
3. Built-in Lithium Battery Easy to Carry
4. Customize Key Data
5. Optical Key Bitting
6. Multi-purpose M5 Clamp（No need to frequently replace M1 and M2 clamps）
7. Cut by Bitting
8. Find Bitting
9. Take Photos to Recognize Bitting
10. Recognition (Work with KEY READER)
11. Massive Vehicle Key Database Built- in powerful database covers over 100 car brands, 2,000 car models and 20,000 key data.
12. Protection Shield
13. Smart APP Control HD Touch Screen
14. Support Bluetooth and Wifi
15. The indicator light changes colors with the change of real-time working status.
HD Touch Screen
Users can directly complete operation on the screen.
Xhorse Dolphin XP005-L Structure:
High definition screen minimizes eye fatigue.
The machine adopts an angle-adjustable 5-lnch capacitive touch screen.You can set the angle of the screen based on actual needs.
Massive Vehicle Database
We provide a lifelong database upgrade service for free.
The indicator light changes colors with the change of real-time working status.
Built-in powerful database covers over 100 car brands, 2,000 car modsls and 20,000 key data Accurate key data, detailed parameters,and clear key graphics.
Transparent Protective Shield
The transparent shield enables users to check the real-time working status white preventing metal debris from spattering.
Innovative Colorful Indicator Lights
The indicator light changes color with the change of real-time working status.
Portable Solution
Thanks to its compact design, light weight, much easier to take it outside and provide users outdoor and roadside services.
Built-in well-known lithium battery, stable and reliable, support cutting works without power supply access.
Manufacture Craftsmanship
All-aluminum body structure; Manufactured by Gennan-made DMG CNC machine to guarantee high precision cutting results.
The fnfehed keys passed the rigorous testing of the Optical Instrument.A wider workbench, strong and steady, make your works more productive.
Maintain excellent performance even under extreme weather.
Support Bluetooth and WiFi
Support directly upgrade online via WiFi connection.Control the machine by Xhorse APP on your smartphone or other Intelligent terminals via Bluetooth.
Multi-purpose Clamps
A wide duplication availability guaranteed by a variety of functional clamps, support multiple key types,
standard single sided,standard double sided, 2 track external, 4 track external, dimple, channel track, 4 track Internal, F021 & Citroen SX9 keys, residential keys, etc.
Xhorse Dolphin XP-005L is Standard equipped with Clamp M5.
Clamp M3 and Clamp M4 are optional.
Dolphin 2 XP005L Optional cutters and Probes:
1) 1.0mm Tracer Probe
2) 1.5mm Milling Cutter
3) 2.0mm Milling Cutter
4) 2.5mm Milling Cutter
Xhorse Dolphin XP-005L Software Overview:
▪Supporting self-calibration
▪Supporting key duplication and cutting for vehicle keys
▪Supporting universal key decode for multiple key types
▪Operation on APP through Bluetooth
▪Build-in key database
Xhorse Dolphin II XP005L VS Dolphin XP005:
| Item | xhorse Dolphin XP-005L | Xhorse Dolphin XP005 |
| Touch Screen | An angle-adjustable 5-inch capacitive touch screen, and users can directly complete operation on the screen.LCD resolution 1280*720. | Null |
| Protective Shield | Yes, moveable transparent protective shield prevent metal debris from spattering. | Null |
| Smart status indicator | With colorful indicator lights (in blue:working; in yellow:information notification; in red: false alarm /error warning) |
Null |
| Bluetooth | Yes. Control the machine by the Xhorse app on your smart phone or other intelligent terminals via bluetooth | No,XP-005 not have WIFI module, but support online update by Xhorse APP with smart phone via WIFI |
| Wifi | Yes, directly upgrade online via wifi connection | Yes, online update via Xhorse APP with smart phone |
| Multiple Clamps | Standard equipped M5 clamp (M1 and M2 2 in 1), and M3 Clamp(optional) , M4 Clamp(optional) | Support clamps M1, M2, M3(optional) and M4 (optional) |
| Hexagon bar wrench | 2mm+4mm 3mm hexagon bar wrench, 3mm hexagon bar wrench,6mm hexagon bar wrench | 2mm hexagon bar wrench, 4mm hexagon bar wrench |
| Weight | Net weight 13KG, Gross weight 18.5KG | Net weight 15KG, Gross weight 18KG |
| Battery | With built-in lithium battery | With built-in lithium battery |
| Language | English | English |
| Update online | Machine firmware and database upgrade via Wifi directly | Online software update on APP, update through Xhorse"Upgrade Kit" |
| Support Key types | Support multiple key types, standard single sided, standard double sided, 2 track external, 4 track external, dimple, channel track, 4 track Internal, F021 & Citroen SX9 keys, residential keys, etc | Same |
| Key database | Built-in powerful database covers over 100 car brands, 2,000 car modsls and 20,000 key data Accurate key data, detailed parameters, and clear key graphics | Same |
| Function | Self-calibration, key duplication and cutting for vehicle keys, universal key decode for multiple key types | Self-calibration, key duplication and cutting for vehicle keys, universal key decode for multiple key types |
| Target users | Provide users outdoor and roadside services | Provide users outdoor and roadside services |
Xhorse Dolphin XP-005L Specification:
Xhorse Dolphin XP005L Package List:
1pc x Machine
1pc x Clamp M5 and link stopper
1pc x Clamp M3 ( optional )
1pc x Clamp M4 ( optional )
1pc x 1.5mm cutter
1pc x 2.5mm cutter
1pc x Probe
1pc x 2mm+4mm 3mm hexagon bar wrench
1pc x 3mm hexagon bar wrench
1pc x 6mm hexagon bar wrench
1pc x Protective bracket
1pc x Power adapter
1pc x 1.5m Power cord of Mainland China standard
1pc x 1.5 Power cord of UK standard (optional)
1pc x 1.5 Power cord of US standard (optional)
1pc x 1.5 Power cord of EU standard (optional)
1pc x Built-in battery (optional)
1pc x Brush
1pc x Product qualitty certificate
1pc x User manual
Key Programming / ECU Diagnostics Tools From Xhorse with Product Number: MK9486
This Weight Product: 300g
Manufacturer: Xhorse
Condition: New
Power up super fast!!!
Read chip super fast!!!
Test frequency super-fast!!!
Test frequency distance: 30 cm!!!
Based on mobile App via Bluetooth!!!
3 colors optional: red, green, orange. Color sent randomly.
Comprehensive functions, support remote and chip programming.
Integrated most existing mainstream data for remote and chip.
Remote Clone
Remote Generation
Garage Remote Generation
Transponder Clone
Generate Transponder
Frequency Test
Remote Renew
IC/ID Clone
Special Functions
It has ability to clone ID4C/4D, 46, ID70, ID72 and can adapt to future updates.
It can also generate remotes for various car brands by connecting the mini key tool with the VVDI Mobile App available on both Android & iOS mobiles.
Supports 46 42 4D 4E 11 33 8C 83 etc transponder cloning
Support TP transponder & parts of special transponder
more than 700 vehicle models, reduce the stock of transponders efficiently.
Support the HCS/Fixed code cloning, support non-HCS rolling code cloning, support PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fixed code editing.
Support 128 brands, over 2000 vehicle models. Generate
more abundant and thorough key pictures, transponder types, key blanks and remote matching data.
Support the power test within the range of 300-450Mhz.
Support more than 100 types
Remote Renew
Ignition switch coil signal detection
Unlock Toyota smart key
VVDI smart key clone
VVDI super transponder
Honda cycle key renew
ID/IC clone
Login Xhorse APP, connect device by Bluetooth, enter device & History'to combine device.
English
English
Español
Français
Türkçe
русский
Italiano
العربية
Português
български
Română
Ελληνικά
Deutsch
